Used Vendome 1,000 Gallon Stainless Steel Jacketed Processor

MANUFACTURER INFORMATION
Vendome Copper & Brass manufactures stainless steel tanks, vessels and process equipment used in food, beverage, dairy, pharmaceutical, cosmetic and general industrial applications. Jacketed processors equipped with scrape agitation are commonly used for products requiring controlled mixing, heating and cooling, especially where wall-scraping action helps maintain product movement and improve heat transfer.
PRODUCT DESCRIPTION

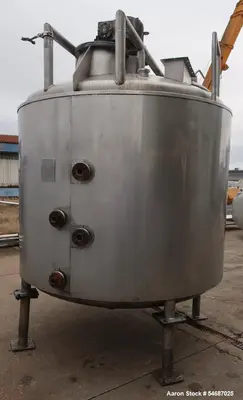

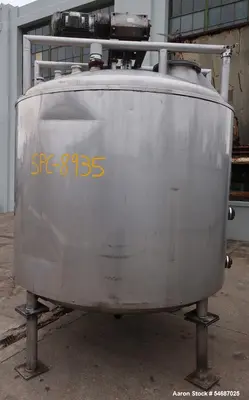

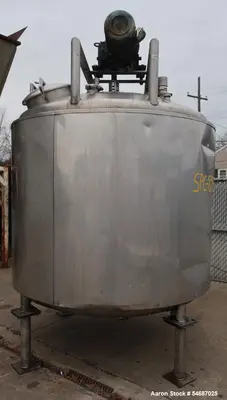

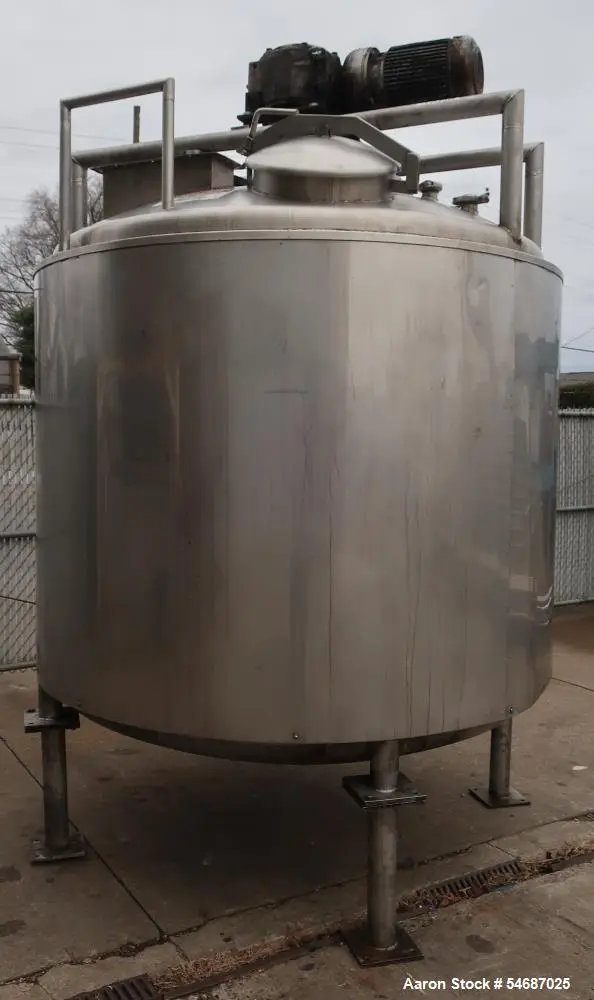

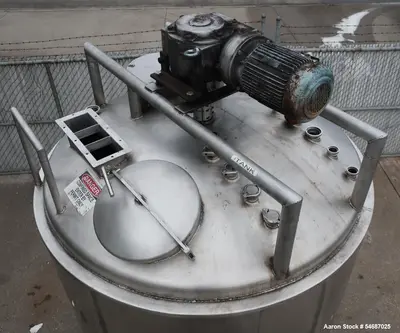

Used Vendome Copper & Brass 1,000-gallon stainless steel jacketed processor with scrape agitation, dished bottom and domed top. Vessel measures approximately 72" OD x 63" straight side and is rated for atmospheric pressure. The jacket is rated for 100 PSI at 338°F and is divided into two heating zones, each equipped with 2" inlet and outlet connections. Bottom is equipped with a 3" bent tri-clamp nozzle. The top head includes an 18" hinged manway, one 6" wide x 18" long nozzle, one 14" flanged nozzle, three 3" tri-clamp nozzles, six 2" tri-clamp nozzles and one 1" tri-clamp nozzle. Vessel is equipped with an internal spray ball and side-scraping agitator driven by a 5 HP gear-reduced drive. Electrical requirements are 230/460 VAC, 3-phase. The processor stands on four legs and is identified by National Board #898 and Vendome Serial #2004-01Z-1. Some cosmetic denting is present on the insulation skin; otherwise the unit appears to be in good condition. Possible applications include mixing, blending, heating and cooling of compatible sauces, syrups, creams, lotions, emulsions, slurries and other liquid or viscous food, cosmetic, pharmaceutical and general process products.
SPECIFICATIONS

Manufacturer: Vendome Copper & Brass

Equipment Type: Jacketed processor / process vessel

Capacity: 1,000 gallons

Construction: Stainless steel

Vendome Serial Number: 2004-01Z-1

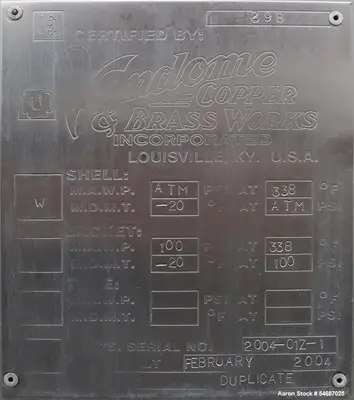

National Board Number: 898

Vessel Diameter: Approximately 72"

Straight Side: Approximately 63"

Vessel Bottom: Dished

Vessel Top: Domed

Vessel Pressure Rating: Atmospheric

Jacket Rating: 100 PSI at 338°F

Jacket Configuration: Two heating zones

Jacket Connections: 2" inlet and outlet per zone

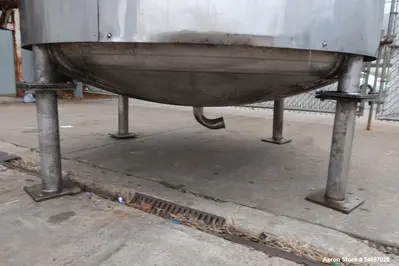

Bottom Discharge: 3" bent tri-clamp nozzle

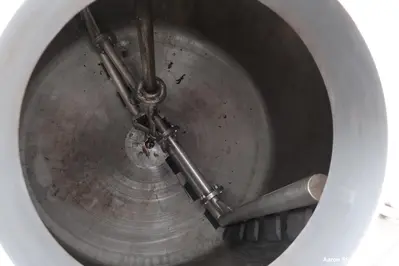

Agitation Type: Side-scraping

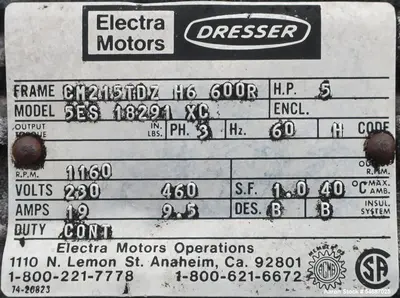

Agitator Drive: 5 HP gear-reduced

Electrical Requirements: 230/460 VAC, 3-phase

Internal Spray Ball: Included

Manway: 18" hinged

Rectangular Top Nozzle: 6" x 18"

Flanged Top Nozzle: 14"

Top Connections: (3) 3" tri-clamp

Top Connections: (6) 2" tri-clamp

Top Connection: (1) 1" tri-clamp

Mounting: Four legs

Condition: Good overall with cosmetic denting to insulation skin

APPLICATIONS

Sanitary process mixing

Viscous product blending

Heating

Cooling

Sauce processing

Syrup processing

Cream processing

Lotion production

Emulsion blending

Slurry mixing

Pharmaceutical liquid processing

Cosmetic formulation

Food product processing

Batch compounding

General process blending

Temperature-controlled mixing

SUITABLE PRODUCTS / MATERIALS
Depending on viscosity, formulation and process requirements, this processor may be suitable for products such as:

Sauces

Gravies

Syrups

Dressings

Dairy-based products

Cream-based foods

Cosmetic creams

Lotions

Gels

Personal-care products

Emulsions

Suspensions

Slurries

Liquid concentrates

Pharmaceutical liquids

Viscous liquids

Semi-viscous materials

Other compatible products requiring scrape agitation and jacketed heating

FAQ

WHAT IS THE CAPACITY OF THIS VENDOME PROCESSOR?
The vessel has a stated capacity of approximately 1,000 gallons.

WHAT TYPE OF AGITATION DOES IT HAVE?
The unit is equipped with side-scraping agitation driven by a 5 HP gear-reduced drive.

IS THE VESSEL JACKETED?
Yes. The processor has a two-zone jacket for heating service.

WHAT IS THE JACKET RATING?
The jacket is rated for 100 PSI at 338°F.

WHAT IS THE VESSEL PRESSURE RATING?
The vessel itself is rated for atmospheric pressure.

DOES THE UNIT HAVE A SPRAY BALL?
Yes. An internal spray ball is included for cleaning or washdown applications.

WHAT SIZE IS THE BOTTOM DISCHARGE?
The vessel has a 3" bent tri-clamp bottom nozzle.

WHAT POWER DOES THE AGITATOR REQUIRE?
The 5 HP gear-reduced drive requires 230/460 VAC, 3-phase electrical service.

CAN THIS PROCESSOR HANDLE VISCOUS PRODUCTS?
The side-scraping agitator makes this type of vessel well suited for many compatible viscous or semi-viscous products, depending on the application and process conditions.

CAN THIS UNIT BE USED FOR FOOD OR COSMETIC PRODUCTS?
Possible applications include compatible food, cosmetic, pharmaceutical and general process materials. Final suitability should be confirmed based on sanitary and process requirements.

CAN AARON EQUIPMENT HELP DETERMINE IF THIS PROCESSOR WILL WORK FOR MY PRODUCT?
Yes. Aaron Equipment can help review your batch size, product viscosity, heating requirements, agitation needs and sanitary requirements to determine whether this Vendome processor may be suitable.

CAN AARON EQUIPMENT ARRANGE SHIPPING?
Yes. Aaron Equipment can assist with freight, loading and shipping coordination for domestic or international destinations. Contact Aaron Equipment with your delivery location for shipping assistance.
