USED MARION OX-15-CS

Manufacturer Information
Marion Process Solutions
Marion Process Solutions manufactures industrial mixing and blending equipment for processing powders, granules, pastes, and other bulk materials. Paddle mixers are commonly used for batch blending where consistent material distribution and efficient movement of bulk solids are required.
This Marion Model OX-15-CS was built in 2022 and provides a 15 cubic foot capacity with carbon steel product-contact components.
Description

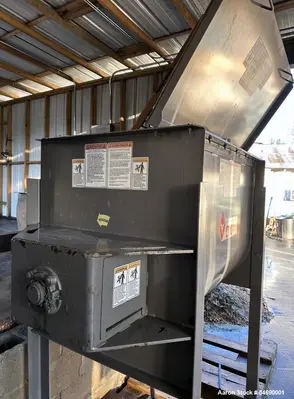

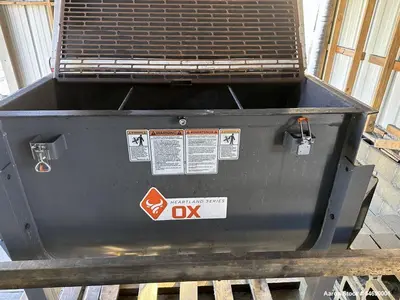

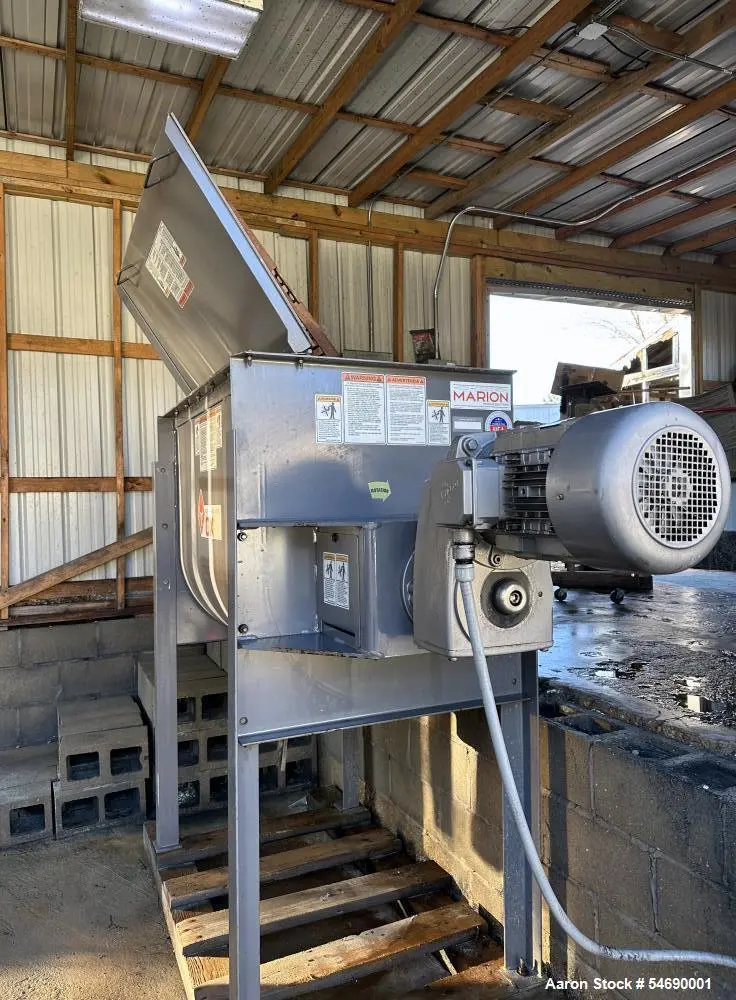

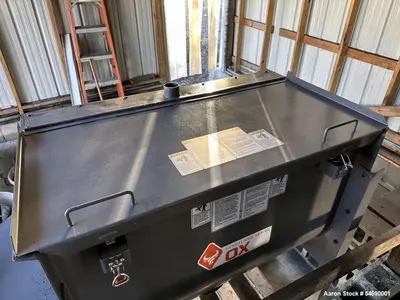

Available for sale is a used 2022 Marion Process Paddle Mixer, Model OX-15-CS, with a 15 cubic foot mixing capacity.

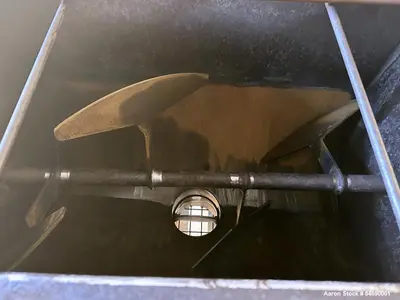

The mixer features a 2-3/16" diameter carbon steel main shaft with welded mixing blades. Blade clearance is stated at approximately 1/8 inch, allowing the paddle assembly to move material efficiently throughout the mixing chamber.

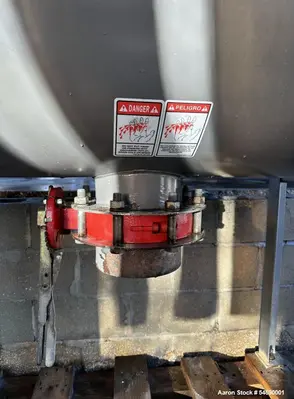

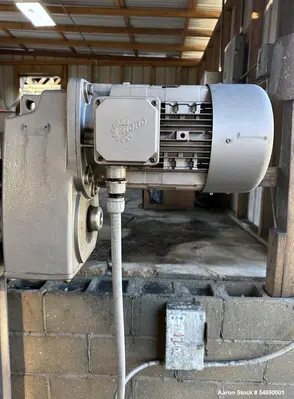

The unit is powered by a 7.5 HP motor and has an approximately 27" wide x 48" long mixing chamber opening. Product discharge is through an 8" diameter lever-actuated butterfly valve.

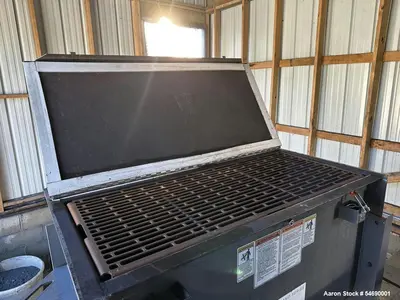

Additional features include a 21" x 48" safety grate, 3" OD vent tube with safety guard, removable seal-access covers, and a 240V control panel with start/stop and emergency-stop controls.
The mixer is supported on four carbon steel legs. Serial number is 22014.
Potential applications include batch mixing and blending of compatible chemical powders, plastic resins, minerals, agricultural materials, dry ingredients, granules, and other free-flowing or moderately cohesive bulk solids.
Specifications

Specification
Details

Manufacturer
Marion Process

Model
OX-15-CS

Equipment Type
Paddle Mixer / Batch Blender

Condition
Used

Year Built
2022

Serial Number
22014

Capacity
15 Cubic Feet

Main Shaft
2-3/16" Diameter Carbon Steel

Mixing Elements
Welded Blades

Blade Clearance
Approx. 1/8"

Drive Motor
7.5 HP

Mixing Chamber Opening
27"W x 48"L

Discharge
8" Diameter Butterfly Valve

Discharge Operation
Lever Actuated

Safety Grate
21" x 48"

Vent
3" OD with Safety Guard

Seal Access
Removable Covers

Controls
Start / Stop / Emergency Stop

Control Voltage
240V

Supports
(4) Carbon Steel Legs

Primary Process
Batch Mixing / Blending

Typical Applications

Powder blending
Batch mixing
Granule blending
Chemical processing
Plastics compounding
Mineral blending
Agricultural product mixing
Dry ingredient blending
Bulk solids processing
Additive incorporation
Homogeneous dry blending
Industrial material preparation

Products This Paddle Mixer Could Be Used For

Chemical powders
Plastic resins
Polymer pellets
Mineral powders
Agricultural materials
Fertilizer ingredients
Granulated products
Dry additives
Pigment blends
Powdered compounds
Free-flowing bulk solids
Moderately cohesive dry materials

Actual suitability and batch capacity depend on material bulk density, particle characteristics, moisture content, cohesiveness, required blend uniformity, fill level, and equipment condition. Carbon steel compatibility should also be evaluated for the intended product.
Frequently Asked Questions

What is the capacity of this Marion paddle mixer? The OX-15-CS has a stated capacity of 15 cubic feet. Actual batch weight depends on the bulk density and recommended working fill level of the material.

What size motor drives the mixer? The mixer is equipped with a 7.5 HP drive motor.

What are the mixing chamber dimensions? The chamber opening measures approximately 27 inches wide x 48 inches long.

How does the mixer discharge product? Material is discharged through an 8-inch diameter lever-actuated butterfly valve.

What safety and control features are included? The mixer includes a 21" x 48" safety grate, guarded 3" OD vent, removable seal-access covers, and a 240V control panel with start/stop and emergency-stop controls.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for this Marion paddle mixer.
