USED COLUMBIA FL-100

Manufacturer Information
Columbia Machine
Columbia Machine manufactures automated palletizing and material-handling equipment for case, tray, and package handling applications. Low-level palletizers are commonly integrated into end-of-line packaging systems to automatically arrange compatible cases into predetermined pallet patterns.
This Columbia FL100 is a low-level full-case palletizer and includes a Liberty 5 Series stretch wrapper for securing completed pallet loads.
Description

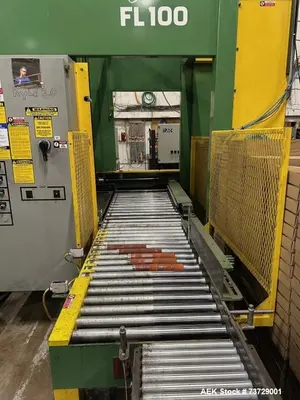

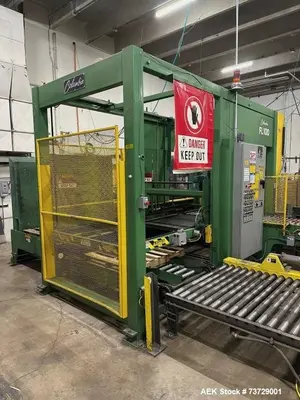

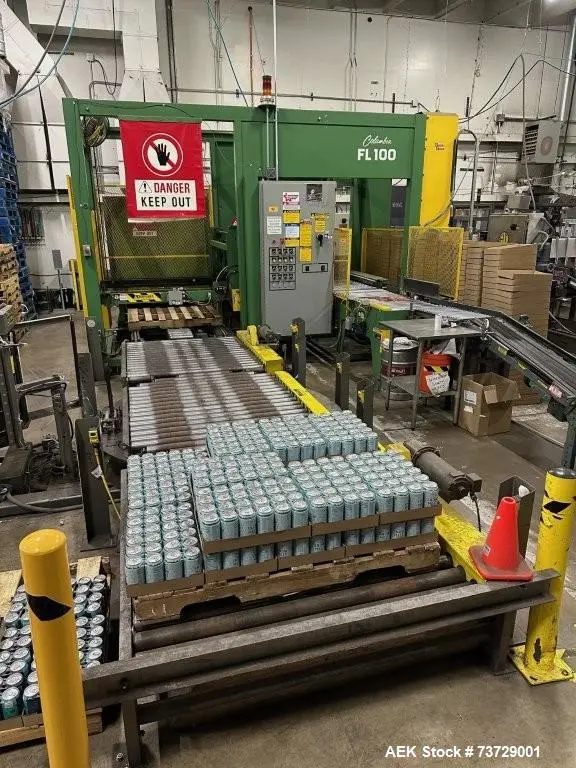

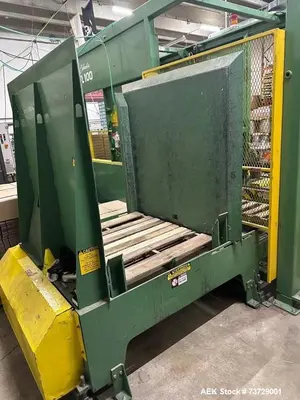

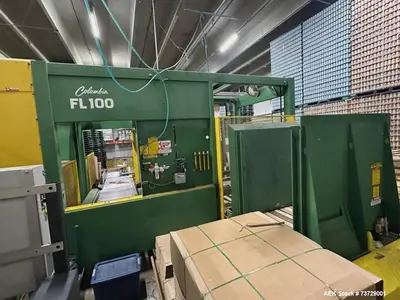

Available for sale is a used Columbia Model FL100 low-level case palletizer, designed for automated end-of-line case palletizing.
The FL100 is rated for production speeds of up to 12 cases per minute, depending on case dimensions, materials, pallet pattern, product characteristics, and operating conditions.
The stated maximum case size is 22" long x 16" wide x 18" high. Finished pallet loads can measure up to approximately 48" long x 48" wide x 65" high, including the skid.

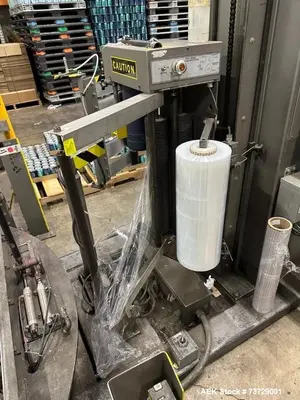

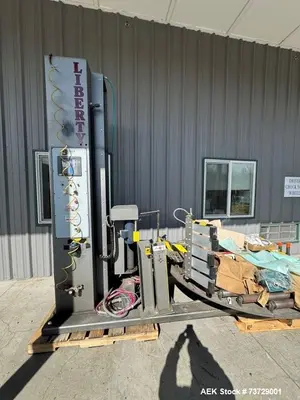

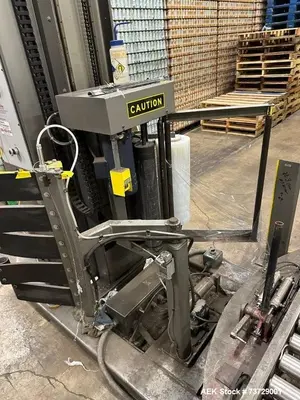

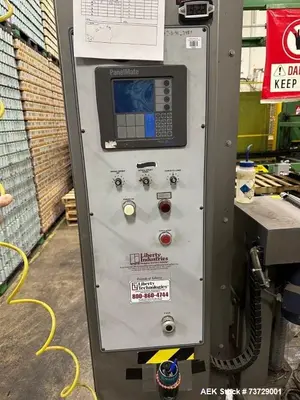

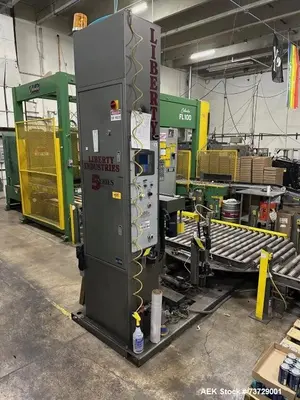

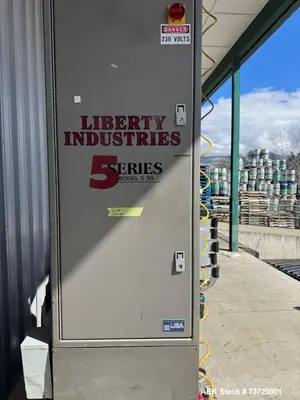

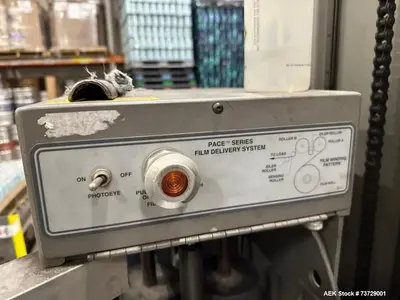

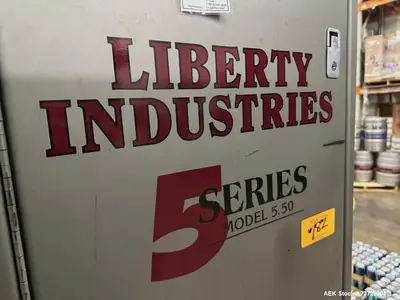

This system also includes a Liberty 5 Series stretch wrapper, allowing completed pallet loads to be stretch wrapped as part of the end-of-line packaging process.
The combination of automated palletizing and stretch wrapping may be suitable for food, beverage, consumer goods, chemical, warehouse, distribution, and general manufacturing operations handling compatible corrugated cases.
Specifications

Specification
Details

Manufacturer
Columbia

Model
FL100

Equipment Type
Low-Level Case Palletizer

Condition
Used

Palletizer Type
Full Case

Rated Speed
Up to 12 Cases/Minute

Maximum Case Length
22"

Maximum Case Width
16"

Maximum Case Height
18"

Maximum Load Length
48"

Maximum Load Width
48"

Maximum Load Height
65" Including Skid

Stretch Wrapper
Liberty 5 Series

Primary Function
Automatic Case Palletizing & Load Wrapping

Typical Applications

Automatic case palletizing
End-of-line packaging
Corrugated case handling
Finished goods palletizing
Distribution center packaging
Warehouse automation
Food case palletizing
Beverage case palletizing
Consumer product palletizing
Industrial product handling
Pallet load preparation
Stretch wrapping of finished loads

Products This Palletizer Could Be Used For

Case-packed food products
Beverage cases
Snack food cases
Frozen food cases
Canned product cases
Bottled product cases
Household goods
Personal care products
Packaged chemicals
Consumer packaged goods
Industrial components in cases
Other compatible corrugated cases

Actual throughput and product suitability depend on case dimensions, weight, construction, pallet pattern, pallet dimensions, product stability, infeed configuration, and controls.
Frequently Asked Questions

What is the rated speed of the Columbia FL100? The palletizer is rated for up to 12 cases per minute, depending on the materials and application.

What case sizes can this palletizer handle? The stated maximum case dimensions are 22"L x 16"W x 18"H.

What is the maximum finished pallet size? The system can accommodate loads up to approximately 48"L x 48"W x 65"H, including the skid.

Is a stretch wrapper included? Yes. The system includes a Liberty 5 Series stretch wrapper for securing completed pallet loads.

What does low-level palletizing mean? A low-level palletizer receives cases at a lower working elevation and automatically forms layers and builds pallet loads according to the configured pattern.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with dismantling and rigging coordination, loading, domestic and international freight, customs documentation, and logistics planning for the palletizer, stretch wrapper, and associated components.
