Used 2018 Maratek SSB-48 45-Gallon Batch Solvent Recovery System – 304 Stainless Steel Vacuum Distillation Unit

Manufacturer Information
Maratek Environmental Inc.
Maratek manufactures solvent recovery and recycling equipment used to recover compatible solvents from industrial process streams. Batch solvent recovery systems use controlled distillation to separate reusable solvent from less-volatile contaminants or process residues.
This Maratek SSB-48 was built in 2018 and was previously used in a cannabis processing application.
Description

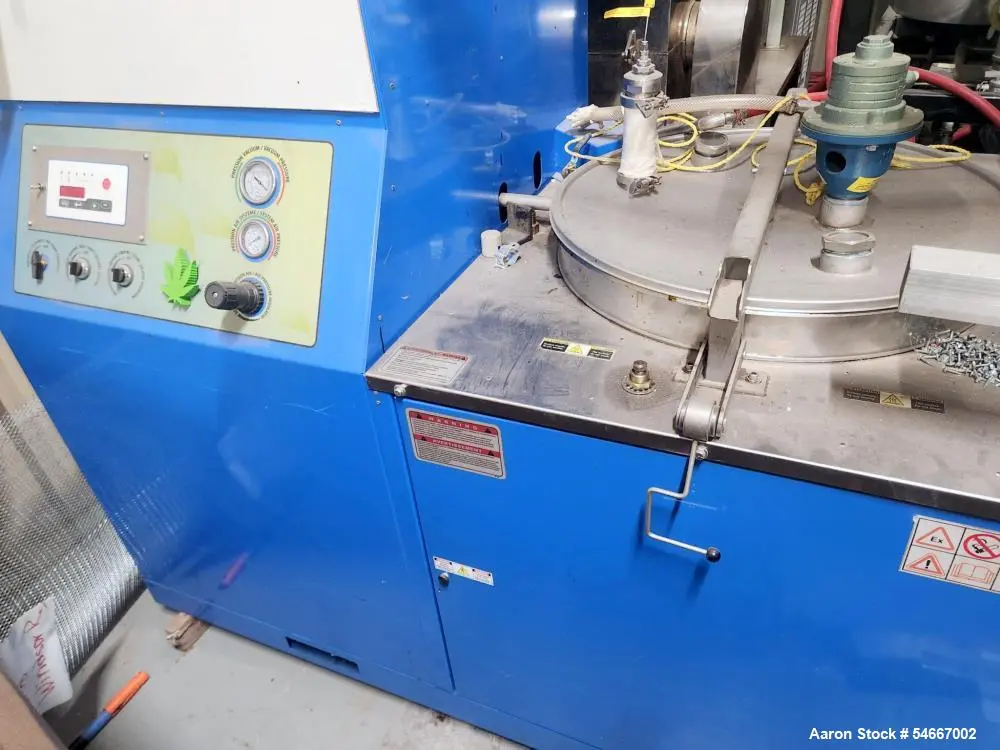

Available for sale is a used 2018 Maratek Batch Solvent Recovery System, Model SSB-48, constructed of 304 stainless steel.

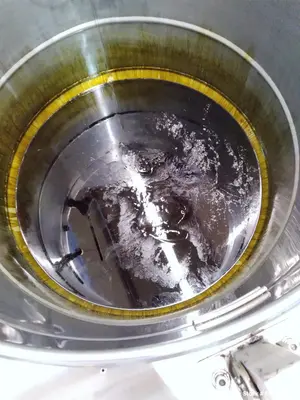

The system features a 55-gallon geometrical boiler capacity with approximately 45 gallons of useful boiler capacity. The supplied recovery yield range is 85–97%, with an approximate 3.5–4.5 hour distillation cycle time. Actual recovery and cycle time will vary with solvent type, contamination level, batch volume, operating conditions, and desired product purity.
The SSB-48 has a stated operating temperature range of 104°F to 360°F, with a supplied maximum solvent temperature specification of 590°F. Operating pressure is stated at 0.223–1 bar absolute, corresponding to approximately -0.776–0 bar relative pressure, allowing operation under vacuum conditions.

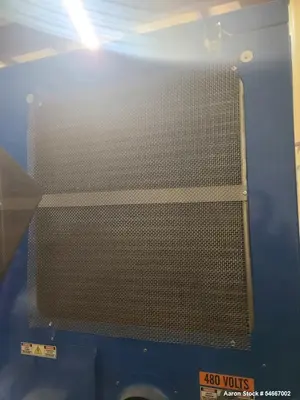

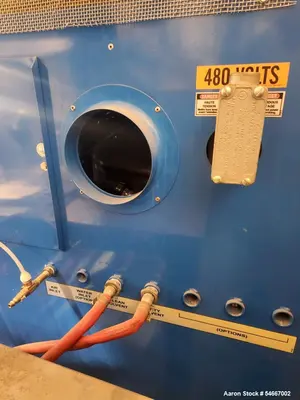

Cooling is supported by a 1 HP fan cooling system. Electrical requirements are stated as 480–600V, 60 Hz, 3-phase.
Previously used in a cannabis application, this solvent recovery unit may be considered for compatible solvent recycling, reclamation, purification, and waste-volume-reduction processes. Solvent compatibility and all applicable hazardous-location, ventilation, fire-protection, grounding/bonding, and operating requirements should be verified before installation.
Specifications

Specification
Details

Manufacturer
Maratek

Model
SSB-48

Equipment Type
Batch Solvent Recovery System

Condition
Used

Year Built
2018

Construction
304 Stainless Steel

Geometrical Boiler Capacity
55 Gallons

Useful Boiler Capacity
45 Gallons

Stated Recovery Yield
85–97%

Approx. Distillation Cycle
3.5–4.5 Hours

Operating Temperature
104–360°F

Stated Solvent Temperature
Up to 590°F

Absolute Operating Pressure
0.223–1 Bar

Relative Operating Pressure
-0.776–0 Bar

Cooling System
Fan Cooled

Fan Motor
1 HP

Electrical
480–600V / 60 Hz / 3-Phase

Previous Application
Cannabis Processing

Primary Process
Batch Solvent Distillation / Recovery

Typical Applications

Batch solvent recovery
Solvent recycling
Solvent reclamation
Vacuum distillation
Process solvent purification
Solvent reuse operations
Waste solvent reduction
Process liquid separation
Extraction solvent recovery
Manufacturing solvent recycling
Batch distillation
Compatible solvent processing

Products / Solvent Streams This System Could Be Used For

Compatible extraction solvents
Process solvents
Cleaning solvents
Solvent-containing process streams
Compatible alcohol-based solvent streams
Manufacturing solvent waste
Laboratory and production solvent streams
Solvent/residue mixtures
Extraction-process solvent streams
Reclaimable industrial solvents
Contaminated compatible solvents
Other mixtures suitable for batch distillation

Actual suitability depends on solvent chemistry, boiling point, flash point, contaminants, concentration, required recovery purity, materials compatibility, and the installed equipment configuration. Flammable-solvent service requires appropriate engineering review and verification of electrical classification, ventilation, grounding/bonding, fire protection, and applicable codes.
Frequently Asked Questions

What is the usable batch capacity? The SSB-48 has a 55-gallon geometrical boiler capacity and approximately 45 gallons of useful boiler capacity.

What recovery yield can the system achieve? The supplied specifications state an 85–97% recovery yield range. Actual recovery depends on the solvent and process conditions.

How long is a typical distillation cycle? The stated cycle time is approximately 3.5–4.5 hours, although actual time will depend on batch composition, loading, operating pressure, and temperature.

Can the system operate under vacuum? Yes. The supplied operating range is 0.223–1 bar absolute, or approximately -0.776–0 bar relative pressure.

What was this Maratek SSB-48 previously used for? The system was previously used in a cannabis processing application. Suitability for a new solvent or process should be independently evaluated.

Can Aaron Equipment assist with shipping and logistics? Yes. Aaron Equipment can assist with rigging and loading coordination, domestic and international freight, customs documentation, and logistics planning for this Maratek solvent recovery system.
