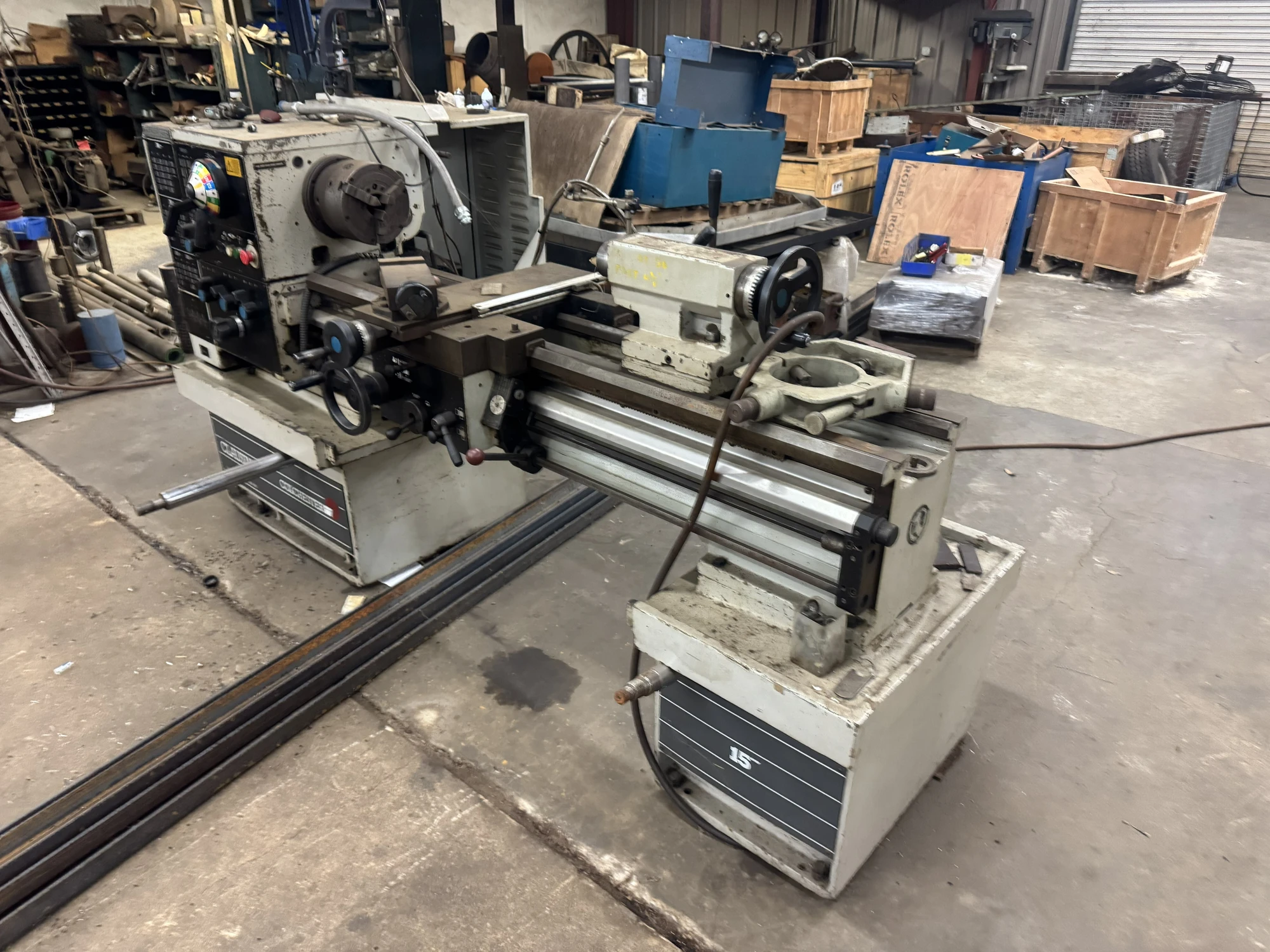

USED 1998 CLAUSING COLCHESTER 1550

Distance Between Centers...............50"
Swing Over Bed.........................15.7"
Swing Over Cross Slide.................9.7"
Spindle Bore...........................2.125"
Spindle Nose Type......................D1-6 Camlock
Morse Taper............................MT-4
Spindle Speeds.........................2000 RPM
Width Of Bed Ways......................12.5"
Cross-Slide Dimensions.................7" Wide X 33.5" Long
Cross-Slide Travel.....................9.8"
Top Slide..............................4" Wide X 5.1" Travel
Top Slide Tool Section.................1" X 1"
Tailstock Quill Diameter...............2.8"
Tailstock Travel.......................5.5"
Tailstock Morse Taper..................MT-5
Leadscrew Diameter.....................1.25"
Leadscrew Thread.......................4 TPI
Threads................................Metric 0.2-14mm / TPI 2-56
Electrics..............................460v / 3 Phase
Motor..................................7.5 HP
Dimensions.............................98.4" x 43.3" x 51.2"
Weight.................................3,300 LBS
