USED 2019 GANESH GEN MILL 5127
Overview

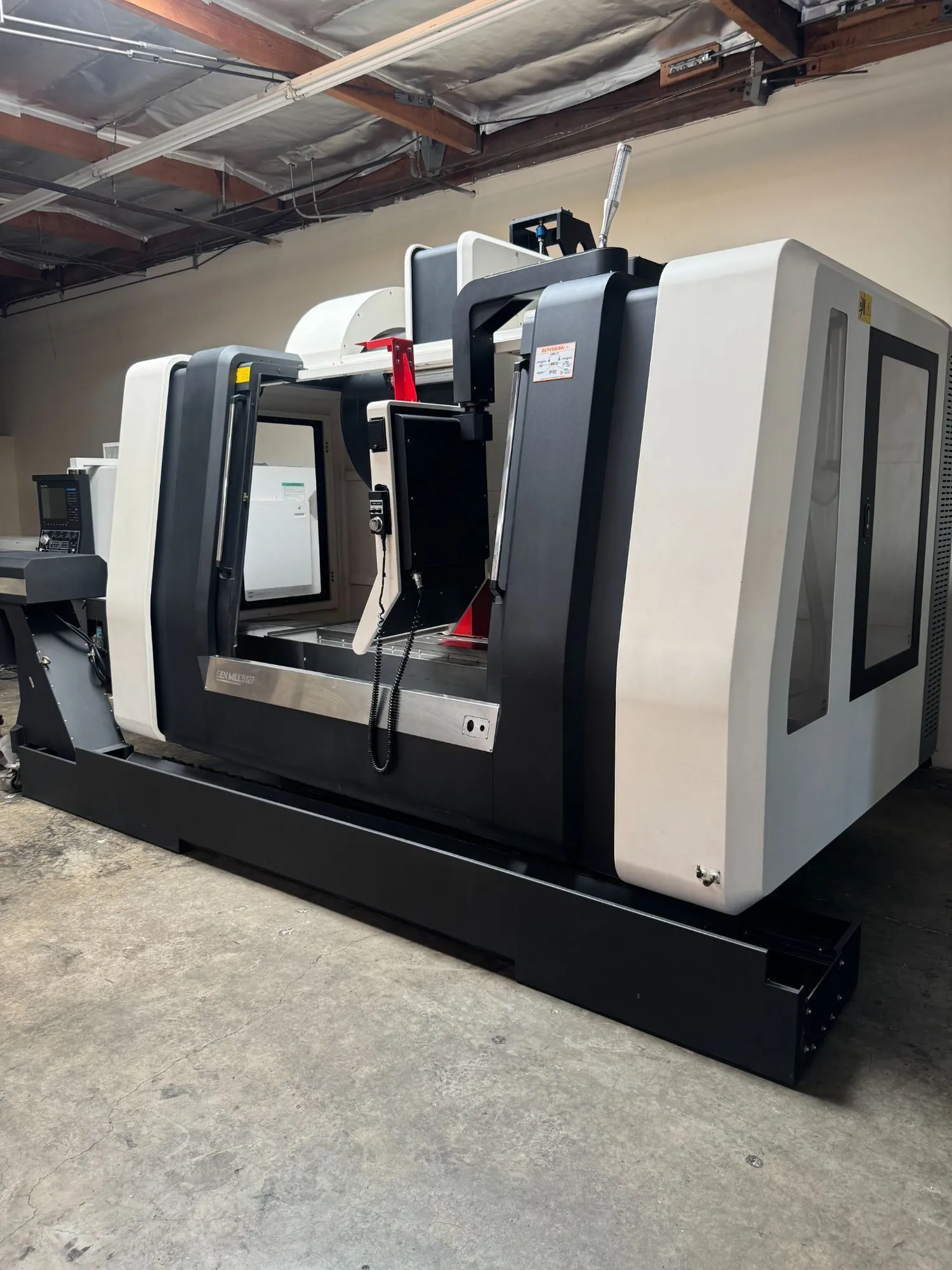

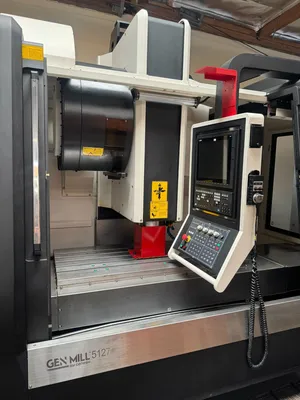

GANESH GEN MILL 5127 vertical machining center, 2019, used. Features X: 34.64, Y: 23.62, Z: 25.59, power: 25.0 HP, 12000 RPM, 40 ATC, CT40/BT40 taper. Compact table 12.6x12.6, 5-axis, designed for precise and efficient machining tasks.
Specs
X-Axis: 51.27"
Y-Axis: 27.56"
Z-Axis: 25.59"
Table Size: 57.98" x 27.56"
Max. Table Load: 4,850 lbs
Spindle Taper: CAT 40
Max. Spindle Speed: 12,000 RPM
Spindle Motor: 35 HP
Tool Changer Capacity: 30 Tools
Rapid Traverse: 984 IPM
Coolant Capacity: 134 Gallons
Through-Tool Coolant Pressure: 300 PSI
Machine Weight: 19,841 lbs
Dimensions: 146" x 130" x 119"
Voltage: 220V
Phase: 3 Phase
Frequency: 50/60 Hz
Amperage: 75 Amps
Equipped With

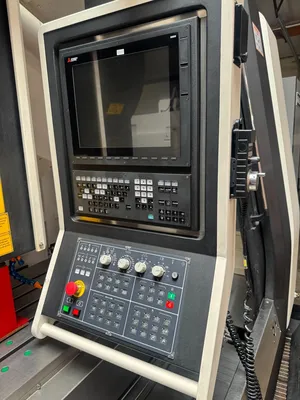

Mitsubishi M800 CNC Control
30-Tool High-Speed Double Arm Automatic Tool Changer
12,000 RPM Direct-Drive Spindle
CAT 40 Big-Plus Spindle
300 PSI Through-Tool Coolant
Spindle Chiller
Chip Conveyor
4th & 5th Axis Wiring
2,700 Block Look-Ahead High-Speed Machining
Roller Bearing Ways
Remote Manual Pulse Generator / Handwheel
