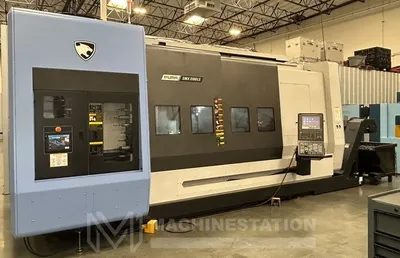

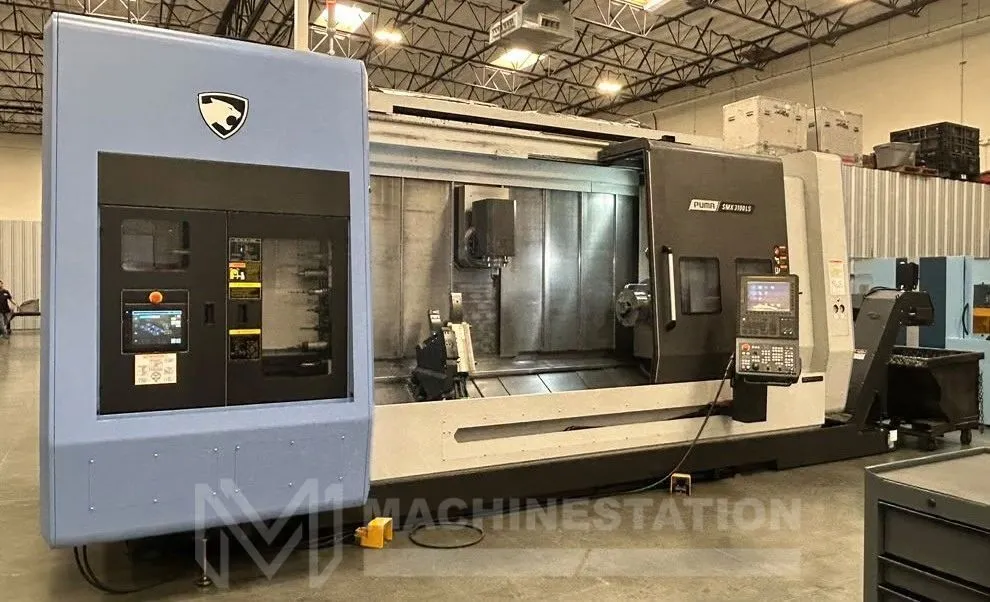

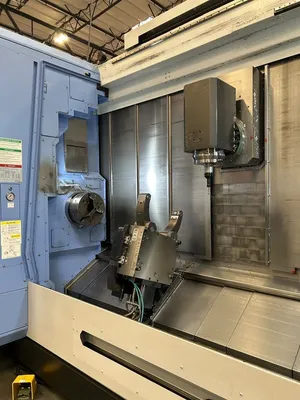

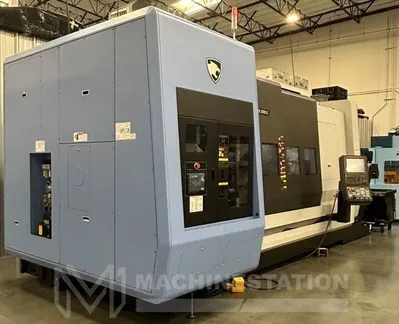

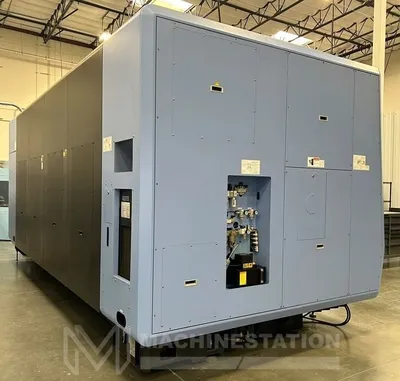

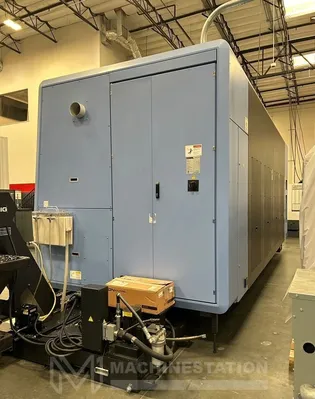

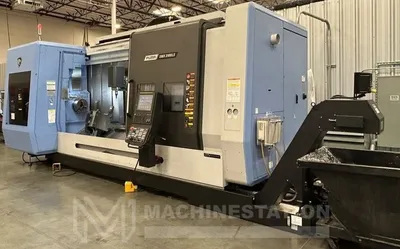

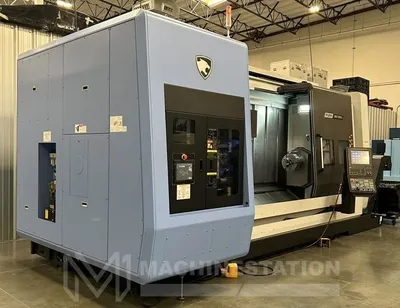

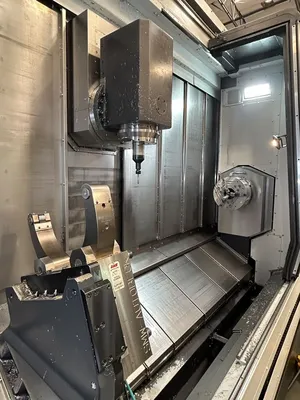

USED 2023 DOOSAN PUMA SMX3100LS

All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

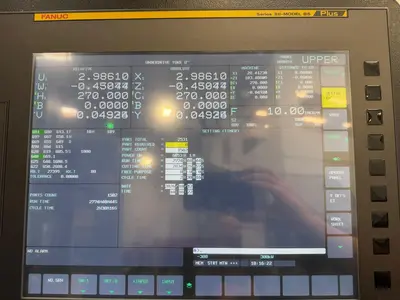

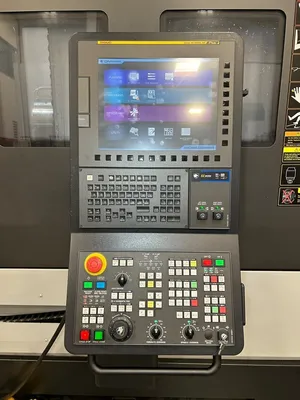

Fanuc Series 31i-Model B5 Plus CNC Control
Rigid Tapping
Automatic Lubrication Unit
Coolant Tank

Capacity:
Max Swing Over Bed: 26.00 inch
Max Machining Diameter: 26.00 inch
Max Machining Length: 100.00 inch
Max Bar Capacity: 4.01 inch

Travels:
X Axis Travel: 24.80 inch
Y Axis Travel: 11.81 inch (± 5.9 inch)
Z Axis Travel: 101.77 inch
A-Axis Stroke (Sub Spindle): 98.40 inch
C Axis: 360° (0.0001°)
B Axis: 240° (± 120°) (0.0001°)

Feedrate:
Rapid Traverse X Axis: 1,889 IPM
Rapid Traverse Y Axis: 1,417 IPM
Rapid Traverse Z Axis: 1,181 IPM
Rapid Traverse A Axis: 1,181 IPM
Rapid Traverse B Axis: 40 RPM
Rapid Traverse C Axis: 200 RPM

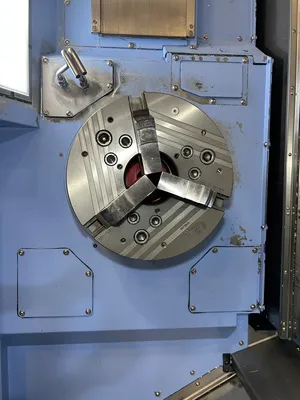

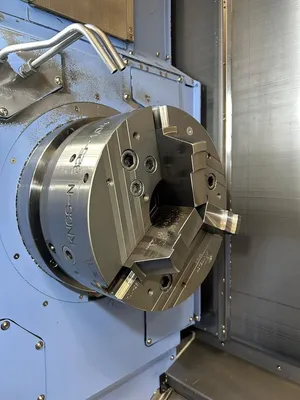

Main Spindle:

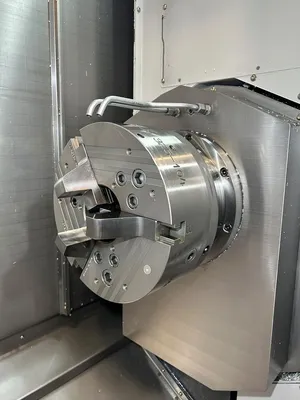

Chuck Size: 12.8 inch
Spindle Nose: A2-11
Spindle Bore: 4.52 inch
Max Spindle Speed: 3,000 RPM
Spindle Motor: 40 HP

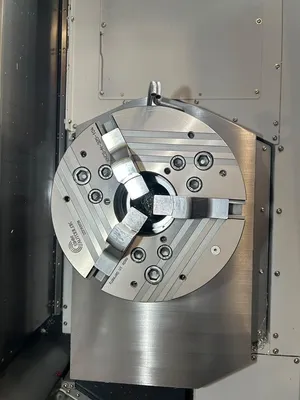

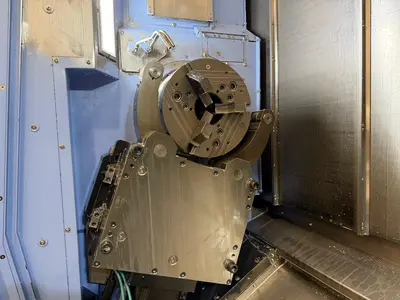

Sub Spindle:
Chuck Size: 12.8 inch
Spindle Nose: A2-8
Spindle Bore: 3.60 inch
Max Spindle Speed: 4,000 RPM
Spindle Motor: 40 HP

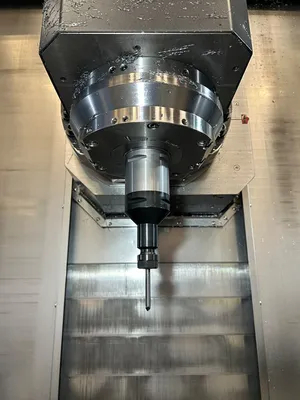

Milling Spindle:
Milling Spindle Speed: 12,000 RPM
Milling Spindle Motor: 35 HP
Milling Tool Taper: CAPTO C6

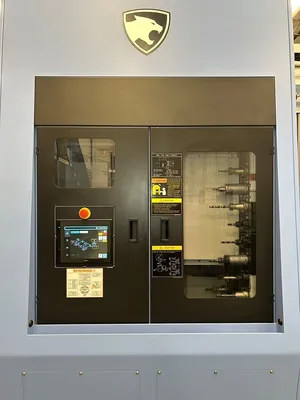

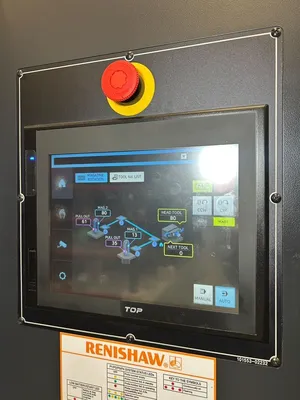

Tool Changer:
Capacity: 80 Tools
Max Tool Length: 17.7 inch
Max Tool Weight: 26.5 lbs
Max Tool Diameter: 3.5 - 5.1 Inch

General:
Power Source: 220V / 50/60 Hz / 3-Phase / 99.72 kVA
Overall Dimensions: 252 inch x 118 inch x 112 inch High Approx.
Machine Weight: 47,178 lbs. Approx.
