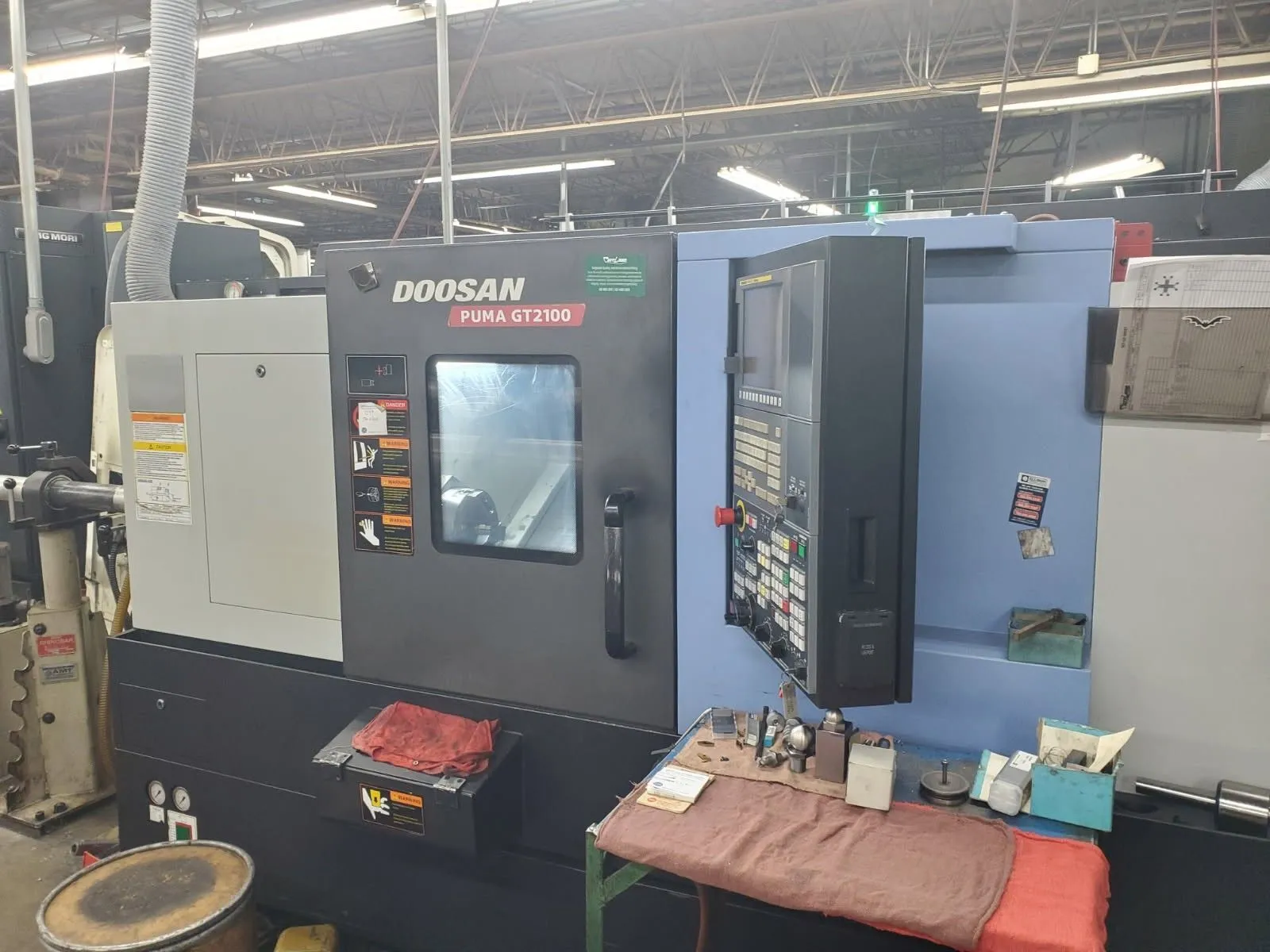

USED 2014 DOOSAN PUMA GT2100

Missouri, United States
Asking Price
USD $42,900.00
Financing estimate
Or as low as$100.82 USD/month
over 60 months
Apply
1 available
288Listings|222Followers
Overview
CNC Lathes

The Doosan Puma GT2100 is an 8-inch global standard CNC turning center built for high-precision, reliable machining in automotive, aerospace, and general manufacturing.

Specs
Swing
21.6"
548.64 mm
Machining Length
19.7"
500.38 mm
# Axis
2
2
Bar Capacity
2.6"
66.04 mm
Chuck Size
8"
203.2 mm
Distance Between Centers
22"
558.8 mm
Turning Diameter
11.8"
299.72 mm
Power
25 hp
18.6 kW
Max RPM
4,500 RPM
4,500 RPM
Tailstock
Yes
Yes
Live Tooling
No
No
Sub Spindle
No
No
# of Turrets
1
1
Hole Thru
3 in
Control
CNC (FANUC)
CNC (FANUC)
Dimensions
Length: 116.00" Width: 97.00" Height: 67.00" Width: 72.00" Height:
Length: 116.00" Width: 97.00" Height: 67.00" Width: 72.00" Height:
Weight
8000
8000
Equipped With

Chip Conveyor
Tailstock
Rhino Bar Feeder
