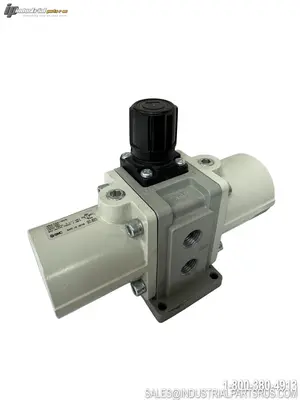

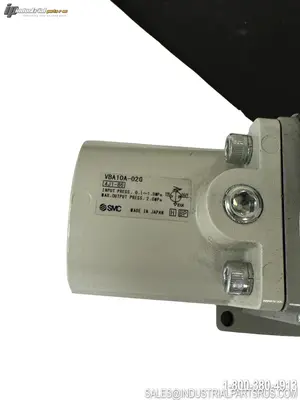

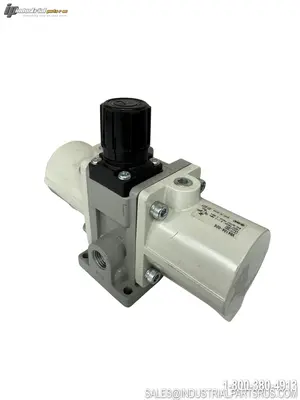

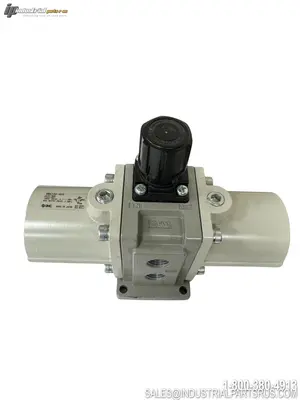

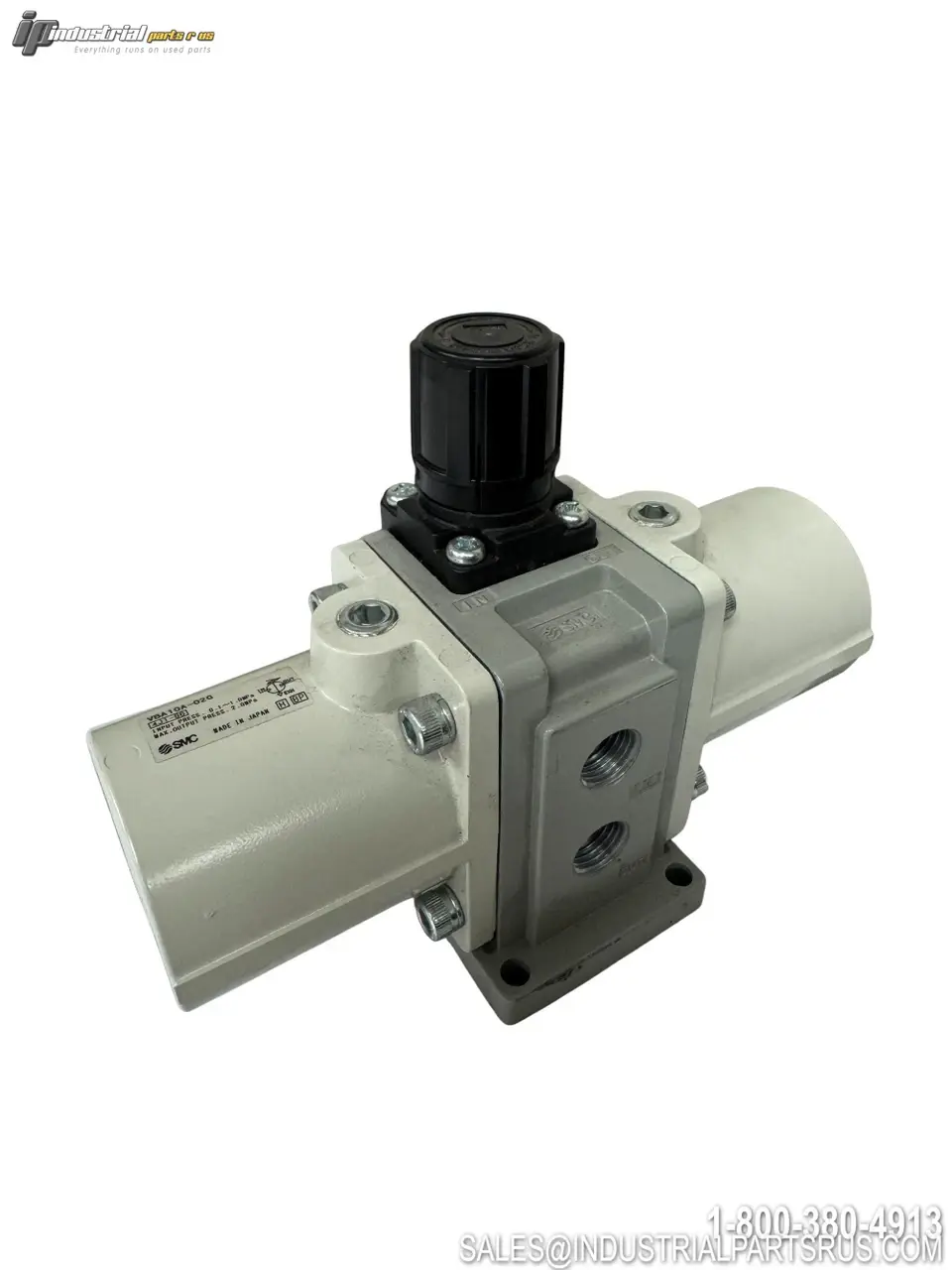

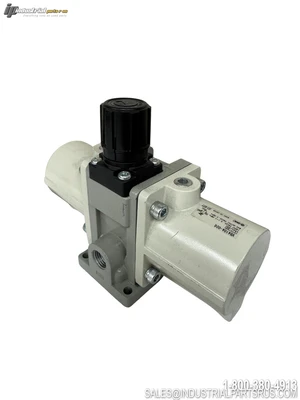

NEW SMC VBA10A-02G

The SMC VBA10A-02G is a handle-operated pneumatic booster regulator from the VBA Series, designed to increase compressed air line pressure up to two times without requiring an external power supply. It features Rc (PT) 1/4" port threading, comes equipped with two pressure gauges (IN and OUT), a built-in 100-mesh filter at the IN port, and a floating piston structure for extended service life and reduced operating noise. The unit is ideal for point-of-use pressure boosting in pneumatic systems where higher localized pressure is needed than the main supply provides.
Specification
Value
Brand
SMC
Model / Part Number
VBA10A-02G
Series
VBA
Product Type
Booster Regulator
Body Size
10A
Port Size (IN/OUT/EXH)
Rc 1/4" (3 locations)
Thread Type
Rc (PT)
Pressure Increase Ratio
2x (Twice)
Pressure Adjustment Mechanism
Handle-operated with relief mechanism
Supply Pressure Range
0.1 to 1.0 MPa (14.5 to 145 psi)
Set Pressure Range (Output)
0.2 to 2.0 MPa (29 to 290 psi)
Maximum Operating Pressure
1.0 MPa (145 psi) [Input]
Proof Pressure
3.0 MPa (435 psi)
Maximum Flow Rate
230 L/min (ANR)
Pressure Gauge Port Size
Rc 1/8" (IN and OUT, 2 locations)
Option
G – Pressure Gauge (2 pcs., IN & OUT)
Pressure Medium / Fluid
Compressed Air
Ambient & Fluid Temperature
2 to 50°C (No freezing)
Installation Orientation
Horizontal
Lubrication
Grease (Non-lube)
Built-in Filter
100-mesh filter at IN port
Piston Structure
Floating piston
Weight
0.84 kg (1.85 lb)
Dimensions (H × L)
Approx. 113 mm × 150 mm (4.45 in × 5.91 in)
Semi-Standard
Standard Product
Manufacturer
SMC Corporation
We warranty all items for 30 days from date of purchase.
