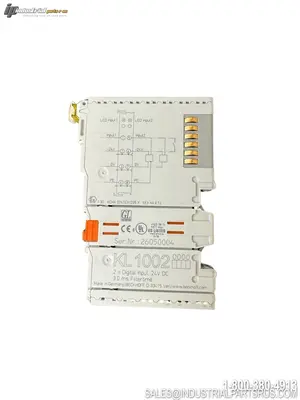

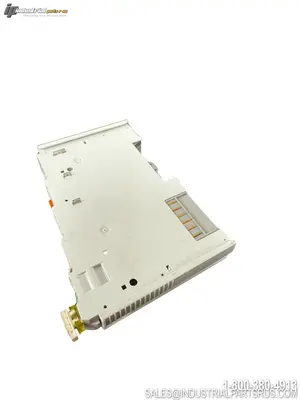

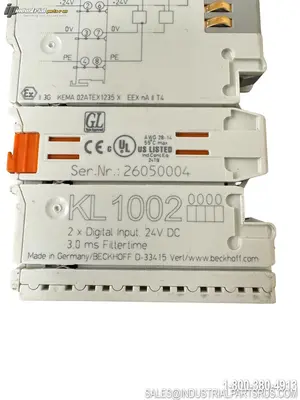

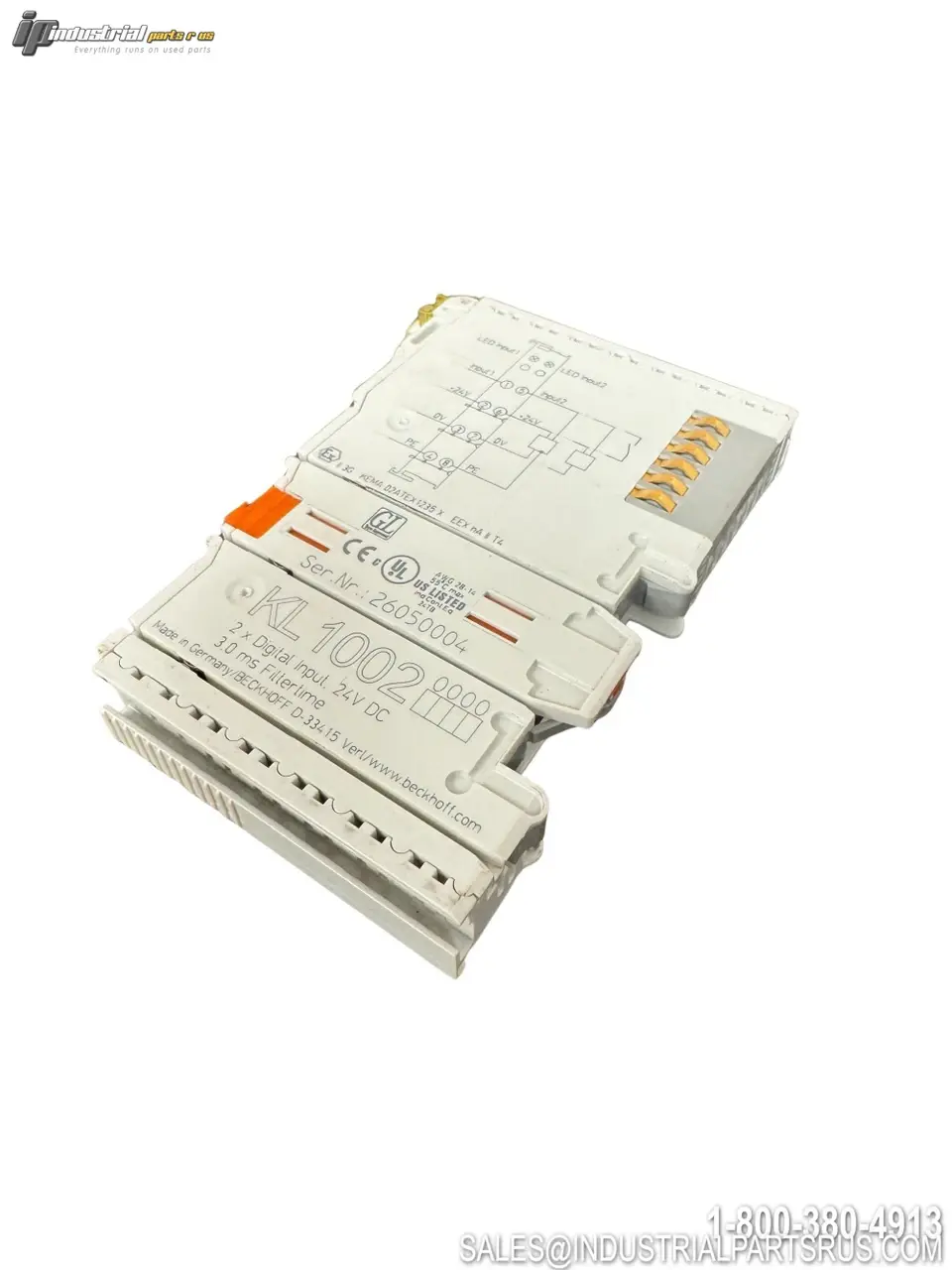

USED BECKHOFF DIGITAL INPUT MODULE KL1002, 24VD

The Beckhoff KL1002 is a 2-channel digital input Bus Terminal that acquires binary 24 V DC control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. Each channel's signal state is indicated by a dedicated LED, and a built-in 3 ms input filter prevents false triggering from mechanical switch bounce. The module mounts on a standard 35 mm DIN rail and requires no address or configuration settings, making it a plug-and-play addition to any Beckhoff Bus Terminal system.
Specification
Value
Brand
Beckhoff
Model / Part Number
Digital Input Module KL1002, 24VD
Product Type
Bus Terminal, 2-Channel Digital Input
Number of Inputs
2
Nominal Voltage
24 V DC (-15% / +20%)
Signal Voltage "0"
-3 V … +5 V
Signal Voltage "1"
+15 V … +30 V
Input Filter
3.0 ms (typical)
Input Current
5 mA (typical)
Current Consumption K-Bus
3 mA (typical)
Electrical Isolation
500 V (K-bus / field potential)
Bit Width in Process Image
2 input bits
Connection Technology
4-wire
Specification / Standard
EN 61131-2, Type 1
Configuration
No address or configuration setting required
IP Rating
IP20
Mounting
35 mm DIN rail, EN 60715, variable position
Housing Material
Polycarbonate
Dimensions (W x H x D)
12 mm x 100 mm x 68 mm
Weight
approx. 50 g
Operating Temperature
-25 °C … +60 °C
Storage Temperature
-40 °C … +85 °C
Relative Humidity
5% … 95%, no condensation
Wire Connection Cross-Section
0.08 … 2.5 mm² (solid/flexible); AWG 28–14
Power Contact Current Load
Imax: 10 A
Signal Indicators
LED per channel (2 total)
Pluggable Wiring
Compatible with all KSxxxx Bus Terminals
EMC Immunity / Emission
EN 61000-6-2 / EN 61000-6-4
Approvals / Markings
CE, UL, CCC, ATEX, IECEx, DNV
ATEX Ex Marking
II 3 G Ex ec IIC T4 Gc
Manufacturer
Beckhoff Automation GmbH & Co. KG
We warranty all items for 30 days from date of purchase.
