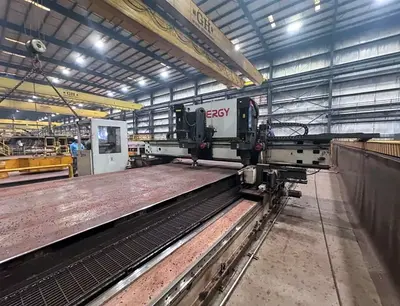

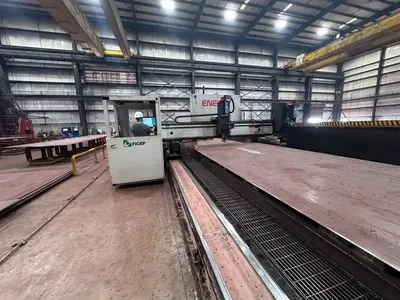

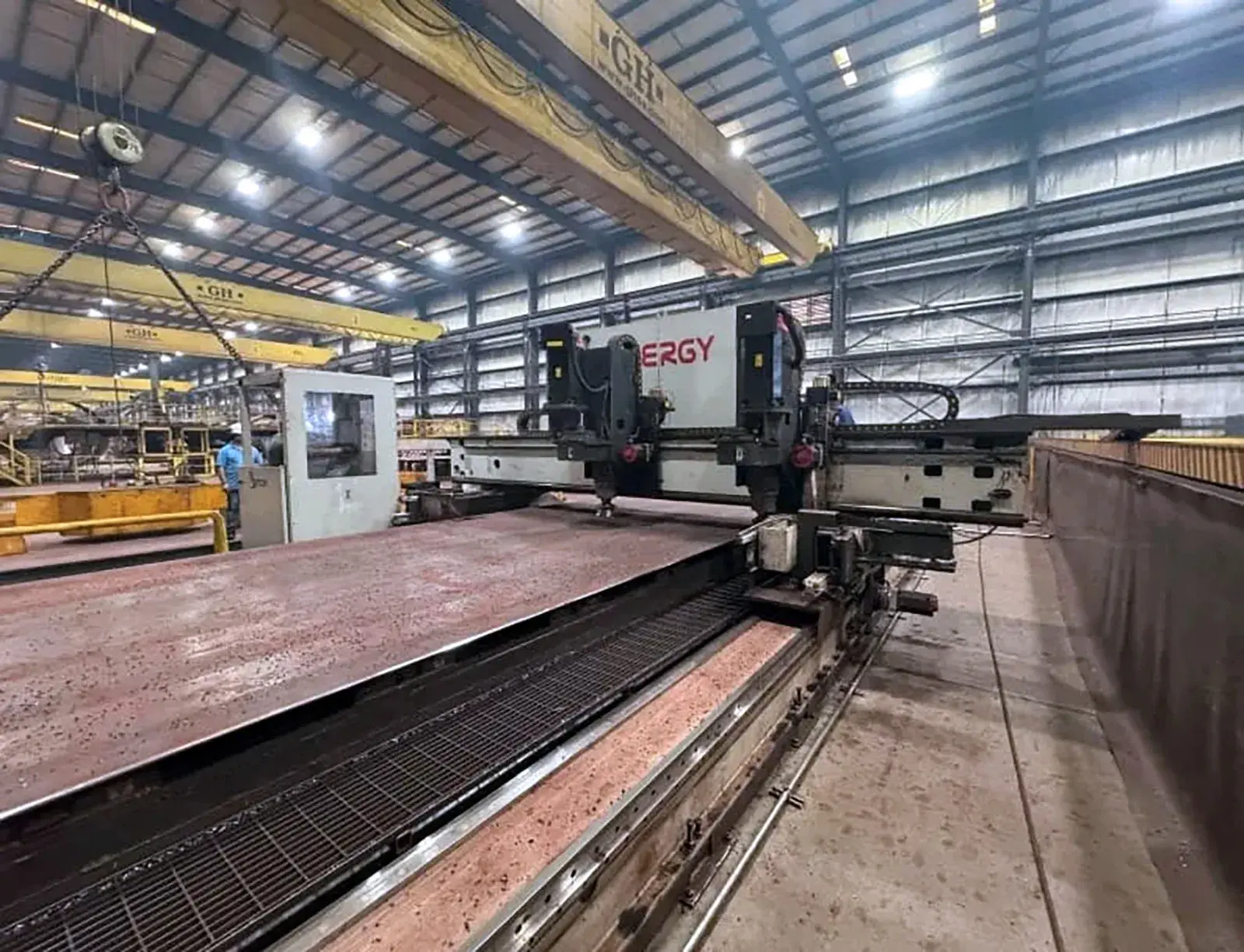

USED 2022 FICEP ENERGY 3202GDX PLATE PROCESSING GANTRY – CNC DRILLING & MILLING LINE
Overview
Used Ficep Energy 3202GDX (2022) is an ultra-heavy-duty CNC gantry working center engineered for edge milling, drilling, tapping and marking massive steel plates. Built for demanding wind energy, offshore oil & gas, shipbuilding, bridge construction and heavy industrial fabrication, it delivers high-capacity precision processing for critical steel structures.
Specs
Ficep Pegaso CNC Control: Windows 10
2 Vertical Milling/Drilling Heads
Automatic Plate Orientation Detection
Drilling Programming
3D Graphics
3 Position Automatic Tool Changer (ATC)
Max plate width: 126.0 in (3200 mm)
Max Plate Length: 91.86 ft (28,000 mm)
Min Plate Thickness: 0.39 in (10 mm)
Max Plate Thickness: 5.51 in (140 mm)
Spindle: 2 Spindles
Spindle Taper: CAT50 Big Plus
Spindle Horsepower: 53.6 HP (40 kW)
Spindle Speed: 5000 RPM
Max Drilling Thickness: 5.51 in (140 mm)
Max Milling Tool Diameter: 11.81 in (300 mm)
Drill Feed Rate: 1.57–39.37 in/min (40–1000 mm/min)
Fast Approach/Return: 787 in/min (20 m/min)
C Frame Longitudinal Speed: 98.4 ft/min (30 m/min)
Cross Axis Positioning Speed: 98.4 ft/min (30 m/min)
Power Requirement: 400V 3 Phase
Equipped With
Ficep Pegaso CNC Control: Windows 10
2 Vertical Milling/Drilling Heads
Automatic Plate Orientation Detection
Drilling Programming
3D Graphics
3 Position Automatic Tool Changer (ATC)
