USED 2013 MORBIDELLI UNIVERSAL 3615

Lot Closes:: 10/23/2026 10:00:00 AM PT

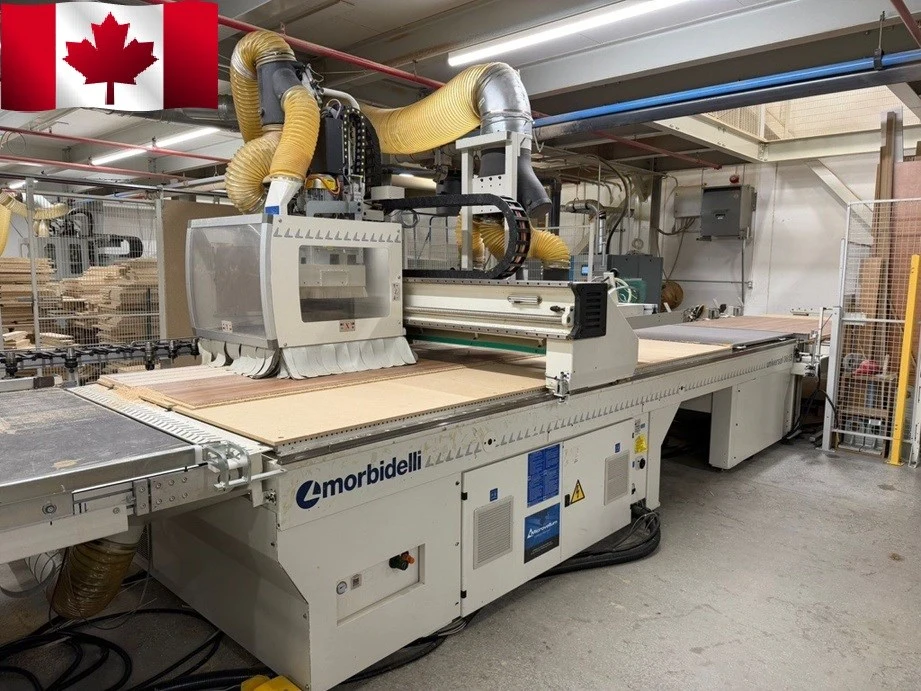

Morbidelli "Universal 3615" CNC Router with Infeed and Outfeed System
See video of machine in operation

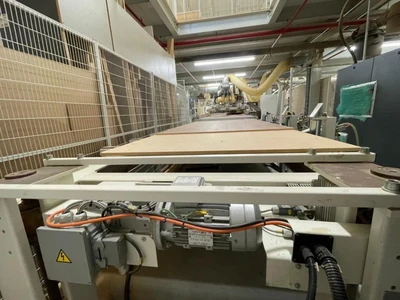

Infeed
     180" L x 108" W x 48" H (overall size as setup for production)
     Scissor lift table
Machine
     200" L x 108" W x 110" H (overall size as setup for production)
     Fixed table, moving gantry
     60" x 144" router table
          Aluminum
          Eight (8) vacuum zones
          Pneumatic reference stops
          Gridded for custom gasketing
     Drill unit
          (18) vertical spindles
          (4) horizonal spindles in X
          (4) horizontal spindles in Y
          X axis grooving saw
          3 HP motor
          1,000 - 6,000 RPM

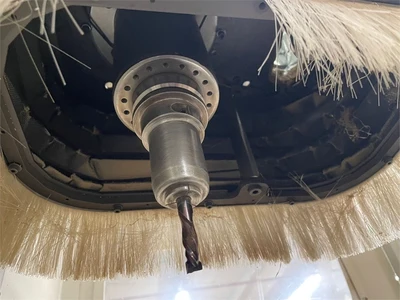

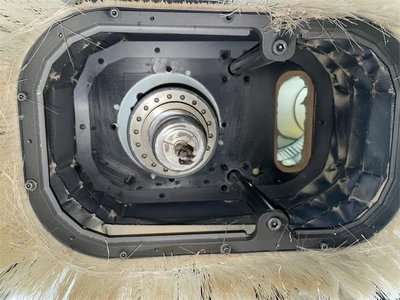

     Router
          HSK
          12 HP
          1,000 - 24,000 RPM

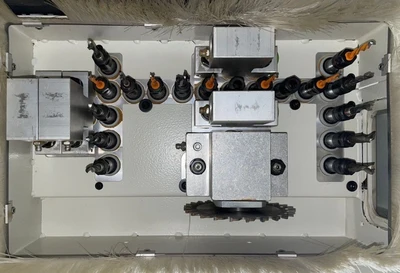

     Tool changer
          Twenty (20) positions
          Mounted on rear of machine
     Sound enclosure

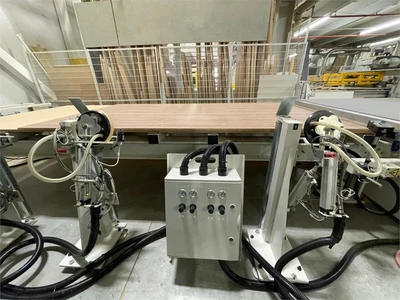

     Panel loading and offloading devices
     Foot pedal operation

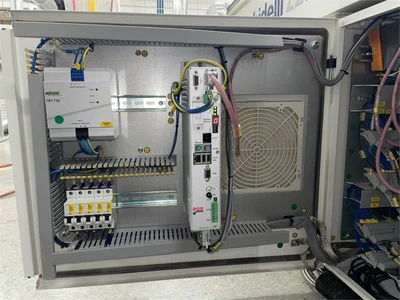

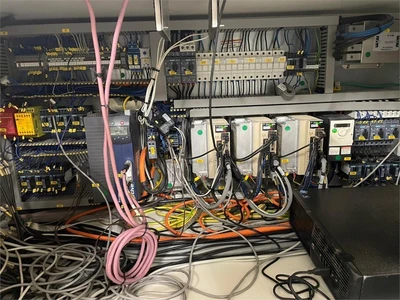

     Air-conditioned electrical cabinet
Outfeed
     190" L x 72" W x 68" H (overall size as setup for production)
     Motorized belt conveyor

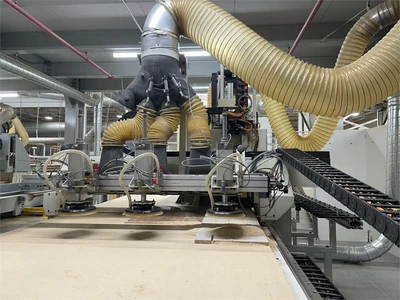

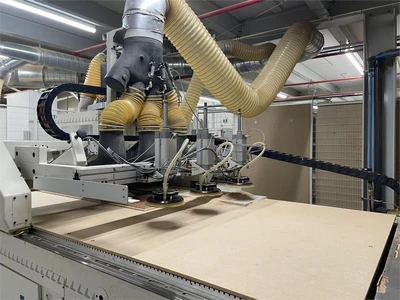

     Top and bottom dust collection
Safety fencing
Front safety photo eyes

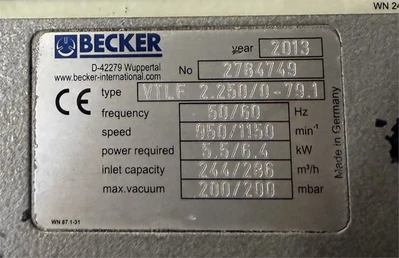

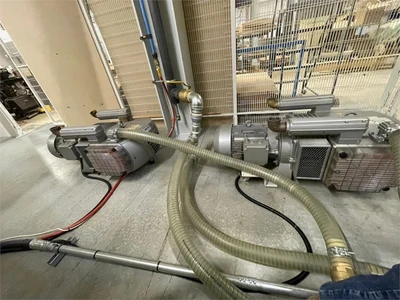

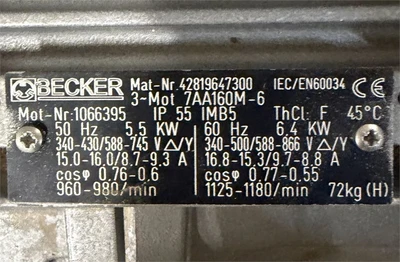

Two (2) Becker "VTLF-2.250/0-79.1" vacuum pumps
     8.5 HP each
     286 m/hr. capacity each
PC control on mobile stand
     Windows operating system
     XILOG Plus operating software
     Standard keyboard and mouse
Remote control pendant
Dust pipe and flex hose NOT included
