ColorFlare CF2500 Pro
Overview

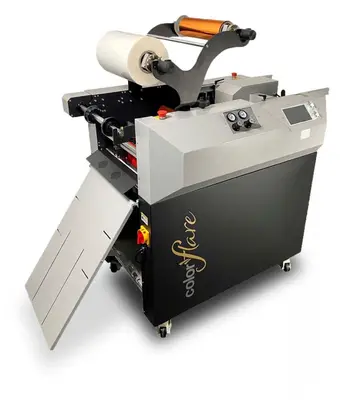

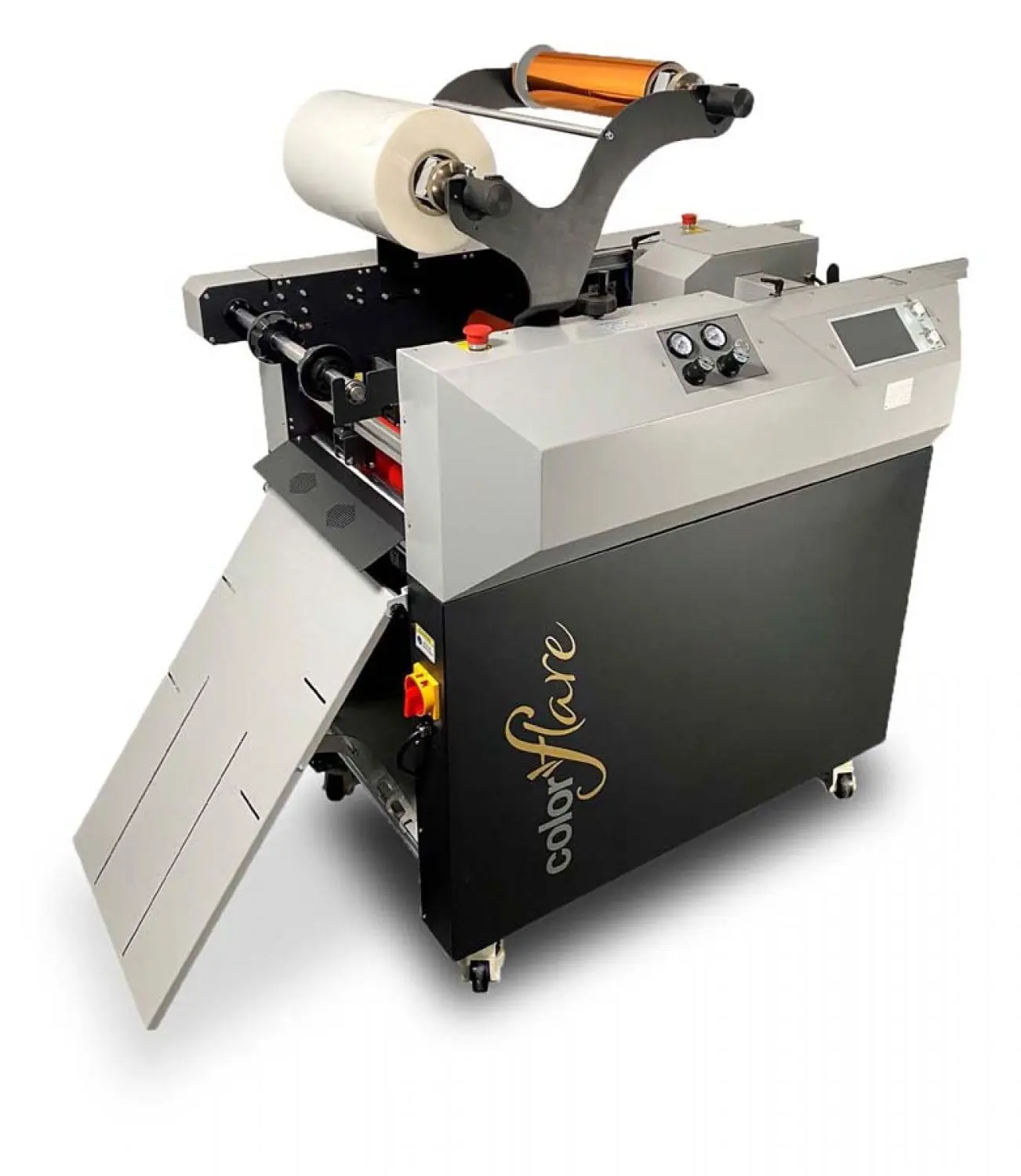

The Morgana CF2500 delivers an all in one automatic feeding solution for both lamination and foiling. With its unique oil roller heating system providing consistent temperatures, lamination results are improved and energy consumption is reduced. Its simple to set up process offers faultless feeding and speedy production – with fully controllable pressure and heat processes, devised to deliver optimum results with today’s print output.
Specs
Features:
- Automatic feeding with frontal air suction
- Pnuematic auto sheet separation
- Dual process for lamination, film and foil finishes
- High hydraulic pressure for a smooth professional finish
- Electronically adjustable speed and temperature via touchscreen
- Easily adjustable de-curling system
- Auto stop function for stack re-loading
Specification:
Media sizes - Max. 390 x 715mm
Media thickness - 130gsm to 400gsm
Lamination speed - 1m/min ~ 15m/min
Laminate/Foil thickness - 20-250 micron
Automatic feeding - Yes
Feeding mode - Dual air suction
Pile height - Max: 280mm/1400 sheets
Laminating temperature - Max: 130ºC
Roller pressure - Hydraulic -1 metric ton (actual reading is 2138.48lbs)
Heating mode - Oil heating
Laminate/Foil core size - 3” (76mm)
Laminating rollers - Upper: High gloss chromium | Lower: Silicon Rubber
Power supply - 220~240v 50/60Hz, 3200w
Height - 58.3" (1480mm)
Width - 68.1" (1730mm)
Length - 31.5" (800mm)
Weight (unpacked) - 837.7lbs (380Kg)
