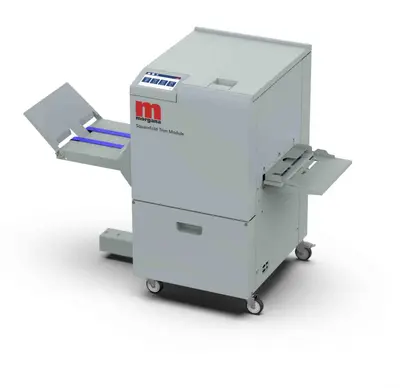

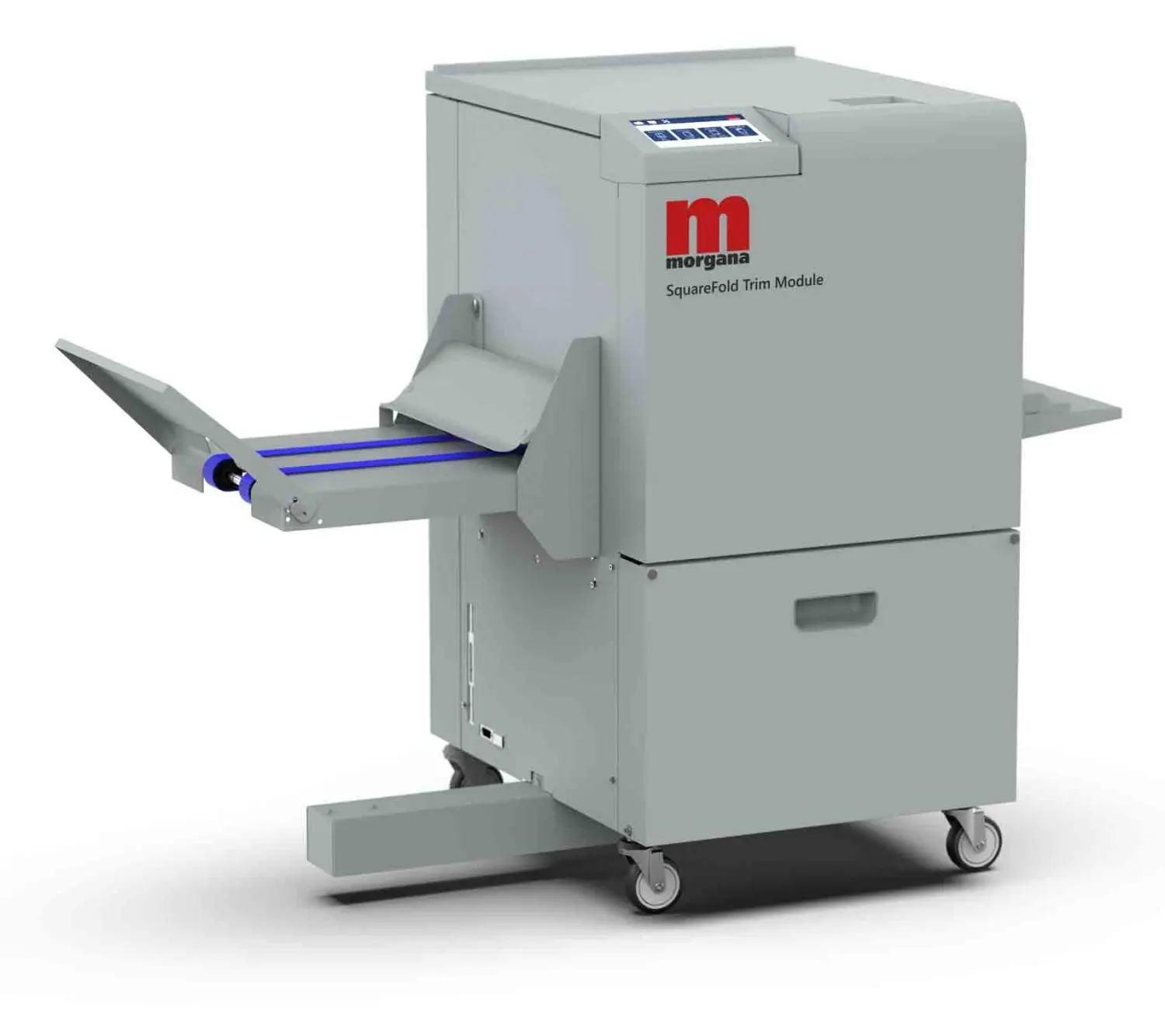

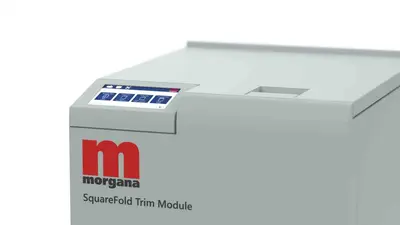

SquareFold Trimmer

Features:
Operator Assisted Three-Side Trimming

Not all customers have access to a guillotine or the time to use one for short run jobs. The SFT module can also process booklets for bleed trimming book by book in an operator assisted process. Full bleed booklets are now an option for small CRD’s or office installations.

The look of a Perfect Bound Book

The module is equipped with the heavy-duty SquareFold module you find in our larger Booklet Making Systems. This enables booklets made from a wide variety of paper stocks and sizes to have a perfectly formed spine. It also makes the booklets easier to stack.

The result is the look and feel of a Perfect Bound book – At a fraction of the cost.
Specification:
SquareFold Trimmer

Paper weight (Min) - 63gsm / 17lb bond

Paper weight (Max) - 350gsm / 130lb cover

Sheet count (Min) - 1 folded sheet

Sheet count (Max) - 50 stapled and folded sheets - 25 sheets using side trimmer

Feeded book size W x L (Min) - 148.5 x 105mm / 5.85” x 4.14”

Feeded book size W x L (Max) - 320 x 310mm / 12.6” x 12.2”

Finished book size W x L (Min) - 148.5 x 100mm / 5.85” x 3.93”

Finished book size W x L (Max) - 320 x 310mm / 12.6” x 12.2” (bypass)

318 x 309mm / 12.5” x 12.16” (trimming all sides)

Face trimming (Min) - 1mm / 0.039”

Face trimming (Max) - 210mm / 8.26”

Side trimming (Min) - 1mm / 0.039” per side

Side trimming (Max) - 24mm / 0.94” per side

Duty cycle Average - 20.000 booklets/month
