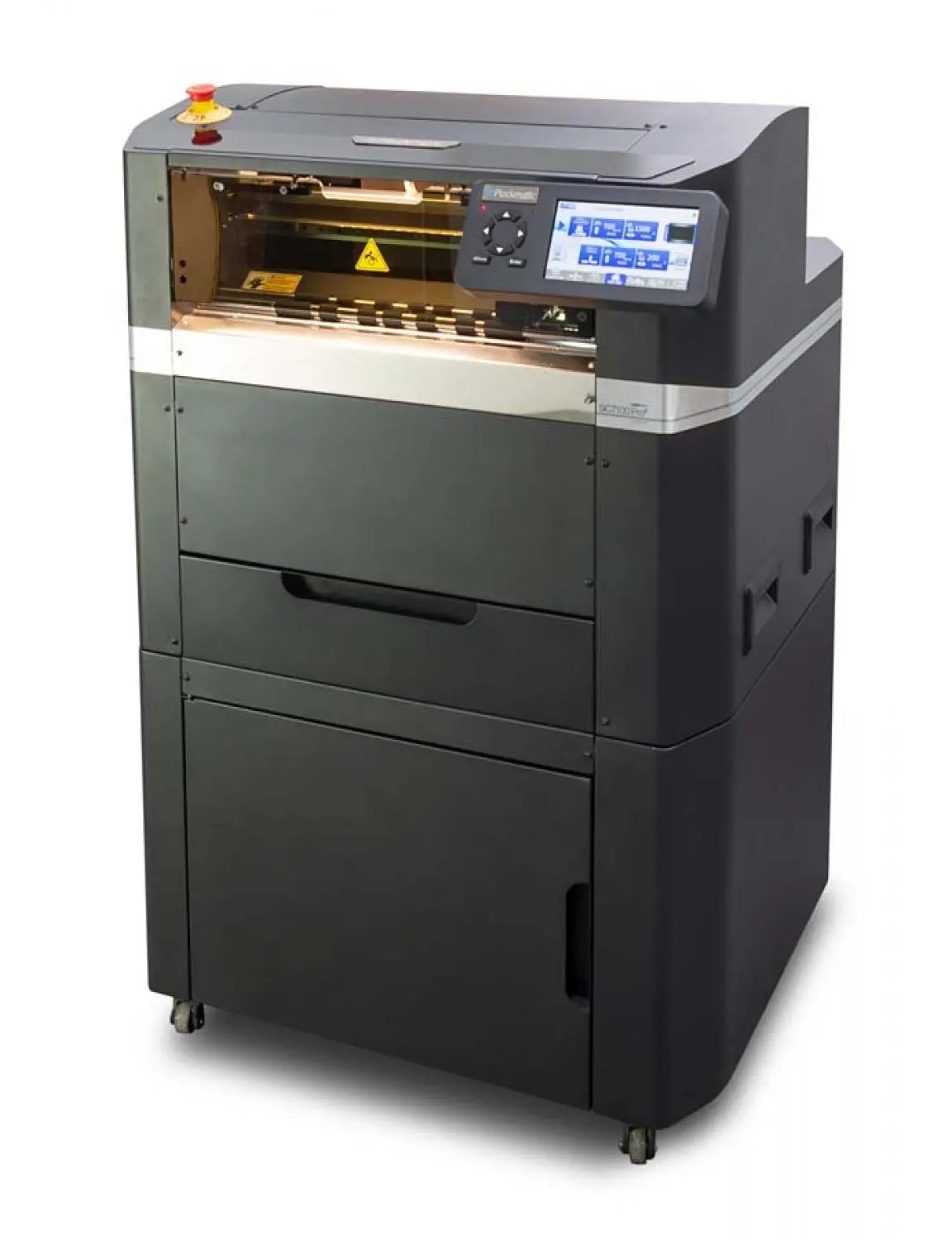

ColorCut SC7100 Pro-T
Overview
The ColorCut SC7100 Pro-T model. Combining ultra-reliable feeding with an instant job retrieval system and high-speed cutting and tangential creasing.
Superb, and unique, dual tool cutter/creasers are a hybrid blend of flatbed, sheet-fed, tangential and contour cutting technologies, designed to deliver the benefits of each technology in a compact, affordable and productive unit.
This fully-automatic addition to your studio or production line, can produce point of sale, packaging, and kiss-cut labels in absolutely any shape you wish, in a highly productive and totally versatile way – all from your own pre-designed and printed artwork!
Equipped with an amazing dual tool head that incorporates a premium flatbed style active TANGENTIAL creasing wheel, makes this device completely unique, enabling you to cut and crease paperboard up to 450 micron and handle a diverse range of media, including paper and synthetics in-between.
Couple all of this easily usable convenience and functionality with the QR code driven workflow for total unattended automation and you have an extremely powerful, flexible system at your disposal, capable of rapidly processing up to 1,000 sheets, even with multiple mixed jobs in the same stack!
Specs
Features:
- Digitally cut-through any shape on up to 450 micron media, or kiss-cut sheet labels, all at up to 1060mm/sec.
- Digital process means no more costly dies or waiting time
- Auto feeder stacks up to 1,000 sheets with self-centering function and air blade separation with extendable paper tray
- ColorCut Pro – Production Studio software included
- QR* code/Job Library retrieves associated cut files – even for mixed job batch sessions or rotated sheets
- SmartMark registration delivers incredible accuracy – enabled via included ColorCut Pro software
- Retractable media tray and integral media storage area
- *QR codes and SmartMarks are generated as part of the included ColorCut Pro software plugin
Specification:
Max media size - 340 x 710mm
Effective contour cutting area - 330 x 700mm
Crease capability - Tangential wheel 2.5Kg (2,500gf) Max 450micron
Auto-sheet capacity - 105mm stacker height (Up to 1,000 sheets of 80gsm media for auto-sheet feed)
Max weight - 15kgs
Type of cut - Die-Cut (with tags), Half Cut (Kiss-cut) & Perf
Max. speed - 1060mm per second
Weight (unpacked) inc. stand - 145kgs
Power supply - 100-240v 50/60Hz, 100W average (320W peak)
