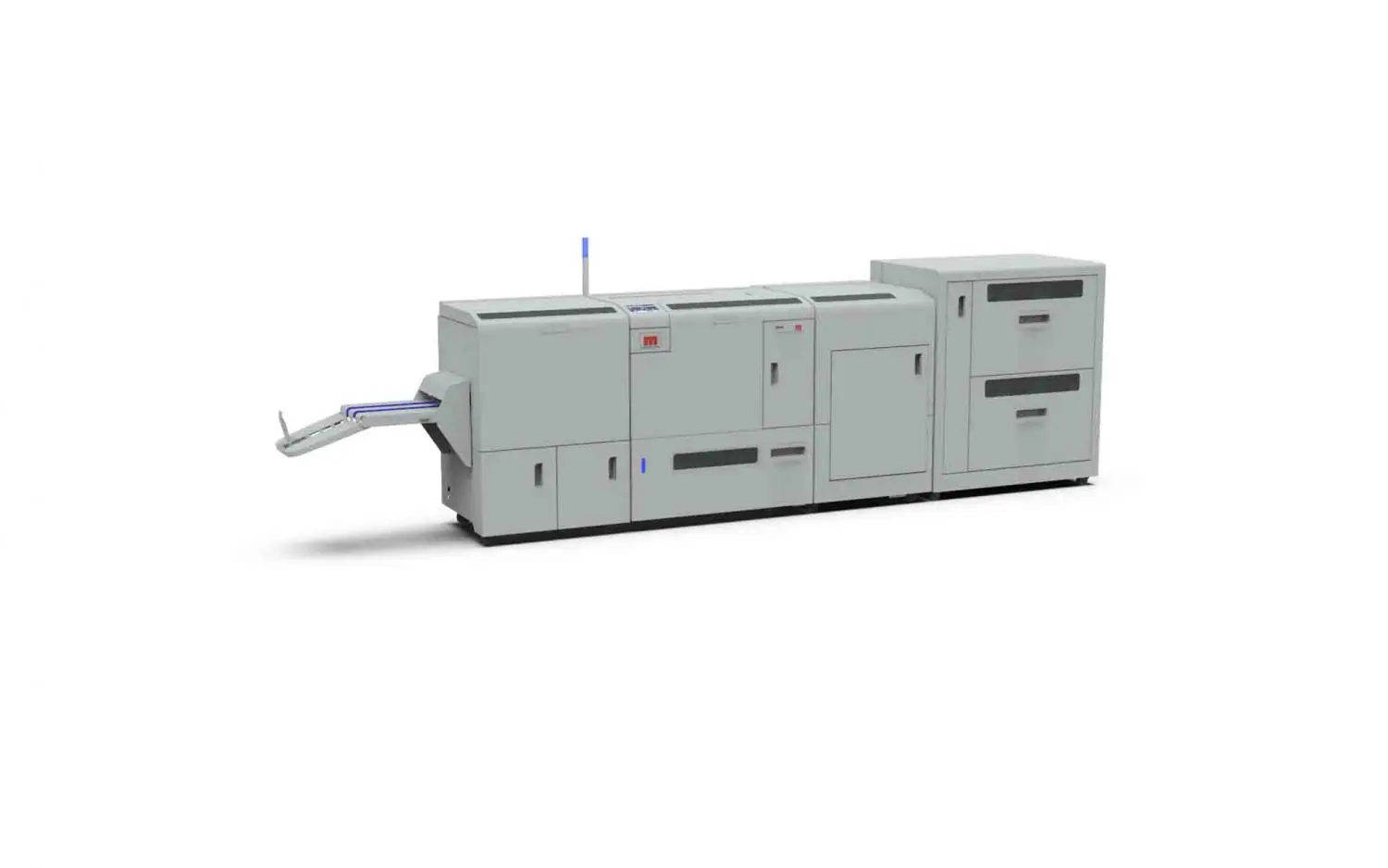

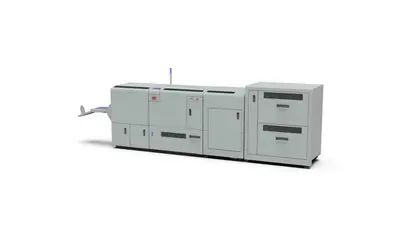

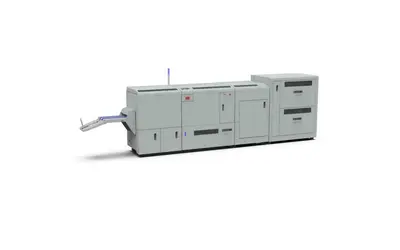

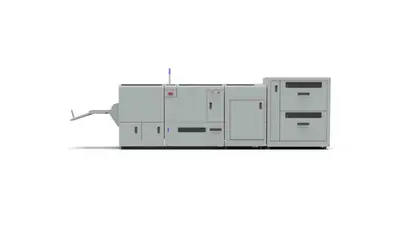

BM5035 / BM5050
Overview
BM5035 / BM5050 - The NEW BM5000 series booklet makers produce booklets in a variety of sizes – A4 / US Letter landscape, A6 / 6″ x 4″ 2-up and more.
The all NEW Morgana BM5000 booklet maker series is the latest member of the Plockmatic Group booklet making family. Engineered for mid-to-high volume customers with the highest quality and functionality requirements. With an increasing number of printing systems available to handle larger cut-sheet sizes, A4 / US letter landscape and oversize booklets can now be produced easily and cost-effectively. The new BM5000 Series delivers these new applications by handling up to 620mm / 24.5″ long sheets.
The BM5035S/5050S, with its optional 4 stitching head configuration, lets you finish jobs that have been imposed 2 up on a sheet, 30 sheets only when using four stitch heads. This functionality offers you higher productivity and reduced costs per book.
Specs
Features:
BM5035 / BM5050
• Paper Size Min: 206 x 210mm / 8.1″ x 8.27″ to Max: 320 x 620mm / 12.6″ x 24.4″
• Stock Range: 65 – 300gsm / 18lb bond – 110lb cover dependent on paper
Set thickness:
• Minimum set thickness: 1 sheet 80gsm / 20lb bond (when folded makes an 4 pageleaflet)
• Maximum set thickness: 3.5mm / 0.39” and 5mm / 0.197” (approx. 50 sheets of 80gsm / 20lb bond)
BM5035S / BM5050S
• Paper Size Min: 120 x 210mm / 4.73” x 8.27” to Max: 320 x 620mm / 12.6” x 24.4”
• Stock Range: 65 – 300gsm / 18lb bond – 110lb cover dependent on paper
Set thickness:
• Minimum set thickness: 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
• Maximum set thickness with two stitch heads: 3.5mm / 0.39” and 5mm / 0.197” (approx. 50 sheets of 80gsm / 20lb bond)
• Maximum set thickness with four stitch heads: 3mm / 0.118” (approx. 30 sheets of 80gsm / 20lb bond)
Book thickness:
• Maximum finished book: book thickness – 10mm / 0.39″ (approx 200 pages 80gsm / 20lb bond)
• Stapling – Easy change, low maintenance, heavy duty staple cartridges
• Staples per cartridge: 5000
Book thickness:
• Maximum finished book with two stitch heads: 10mm / 0.39″ (approx 200 pages 80gsm / 20lb bond)
• Maximum finished book with four stitch heads: 6mm / 0.236″ (approx 120 pages 80gsm / 20lb bond)
• Stapling – 2 or 4 ISP Stitch heads
• Staples per spool – Approx. 50.000
Specification:
BM5035 / BM5050
Paper size minimum - 206 x 210mm / 8.1″ x 8.27″
Paper size maximum - 320 x 620mm / 12.6″ x 24.4″
Stock Range - 65 – 300gsm / 18lb bond – 110lb cover dependent on paper
Minimum set thickness - 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
Maximum set thickness - 3.5mm / 0.39” and 5mm / 0.197” (approx. 200 pages of 80gsm / 20lb bond.
Maximum finished book thickness - 3.5mm / 0.39” and 5mm / 0.197” (approx. 200 pages of 80gsm / 20lb bond.
Staples per cartridge - 5000
BM5035S / BM5050S
Paper size minimum - 120 x 210mm / 4.73” x 8.27”
Paper size maximum - 320 x 620mm / 12.6” x 24.4”
Stock Range - 65 – 300gsm / 18lb bond – 110lb cover dependent on paper
Minimum set thickness - 1 sheet 80gsm / 20lb bond (when folded makes an 4 page leaflet)
Maximum set thickness - 3.5mm / 0.39” and 5mm / 0.197” (approx. 200 pages of 80gsm / 20lb bond.
Maximum finished book thickness - 10mm / 0.39″ (approx 200 pages 80gsm / 20lb bond)
Staples per spool Approx - 50.000

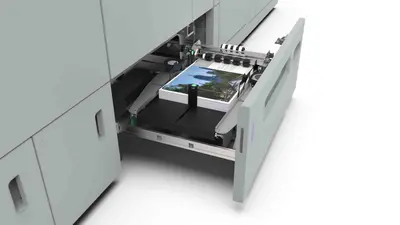

VFX Dual Bin Feeders
No. of bins - 2
Bin capacity - 2 x 270mm / 10.6”
Sheet size, max - 350 x 660mm / 13.8” x 26”
Sheet size, min - 120 x 210mm / 4.72” x 8.26”
Paper weight uncoated, min - 64gsm / 16 lb Bond
Paper weight coated, min - 105gsm / 28 lb Bond
Paper weight, max - 300gsm* / 110 lb Cover*
*350gsm / 130 lb - Cover supported on some media
Center registration - Yes
Air separation - Yes
Error detection - Double feed, misfeed, empty bin, paper jam
Dimensions - H1260 x W1017 x D700 mm / H49.6” x W40” x D27.6”
Weight 250kg / 551lbs
