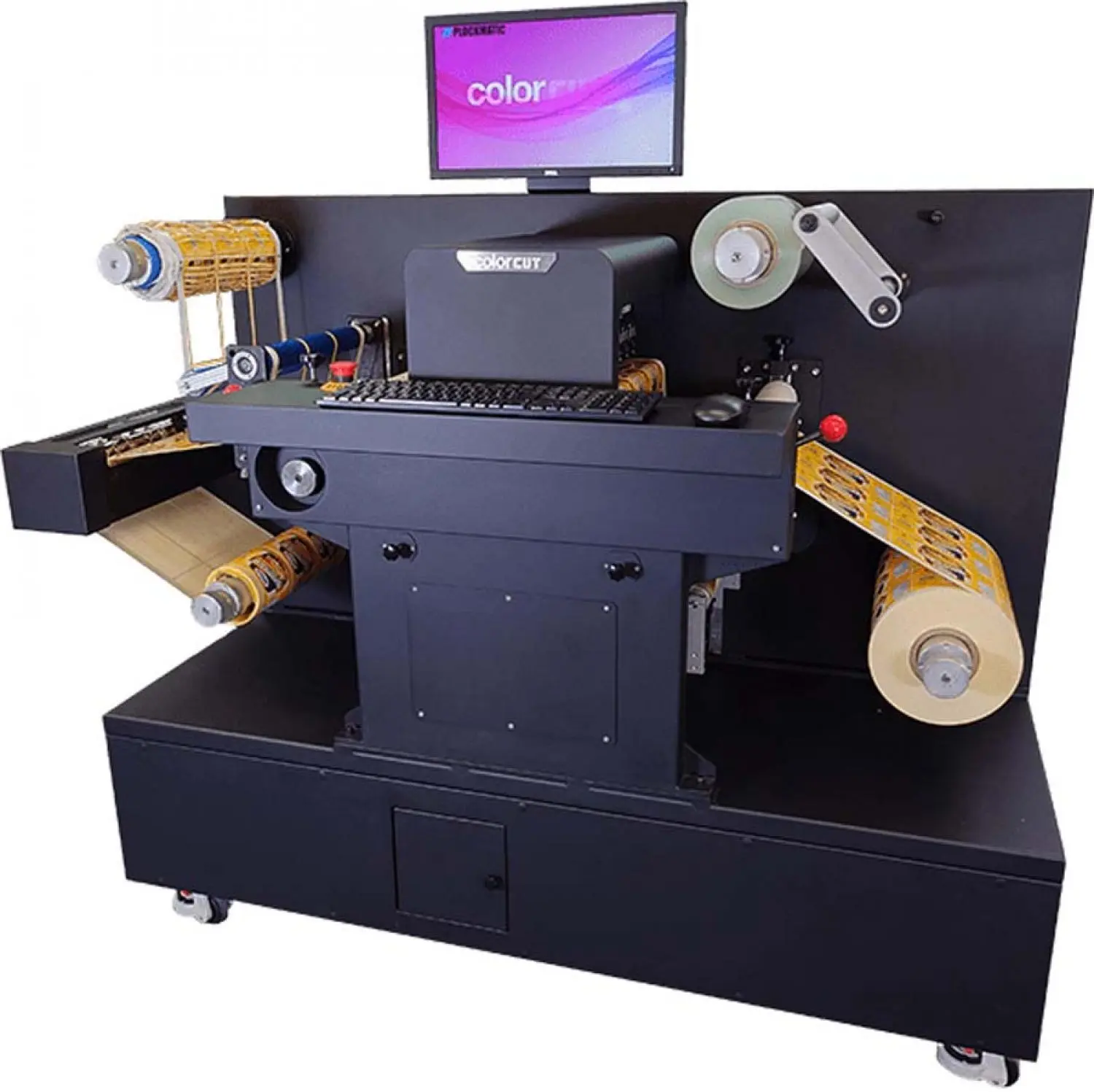

Morgana ColorCut LCF500 Pro

Features:
- Digital process means no more costly dies

- Roll widths of 150mm, 215mm up to 320mm wide and up to 300mm diameter

- Select from one to four PageMark registration points, enabling you to set the balance between speed and precision cutting

- Lamination provides your finished labels with surface protection and light fastness

- QR code/Job Library retrieves associated cut files – even for mixed batch production

- Linear cutting speeds up to 10.5m/min dependent on label design and roll width

- Automatic tracking technology continually measures roll position to dynamically adjust for rewind accuracy

- Customizable matrix removal control settings

- Convert rolls with final job slitting – up to 7 rolls

- Run jobs from computer
Specification:
Maximum label frame length - 420mm (16.53”)

Mandrel core diameter - 76mm (3”)

Maximum input and output roll diameter - 300mm (11.8”)

Material web width - Up to 320mm (12.6”)

Registration system - 1, 2 or 4 marks with Vision3 - High resolution CCD vision system ARMS 9

Slitting - Up to 6 blade slitting – supplied

Lamination - Inline lamination when required

Rewind mandrels - One – matrix removal

Weight (unpacked) - 397kgs (875lbs)

Dimensions - 1,720mm x 930mm x 1330mm (67.7" x 36.6" x 51.2") W D H

Power supply - 110~240V AC, 50/60Hz, 350W, 3.4A
