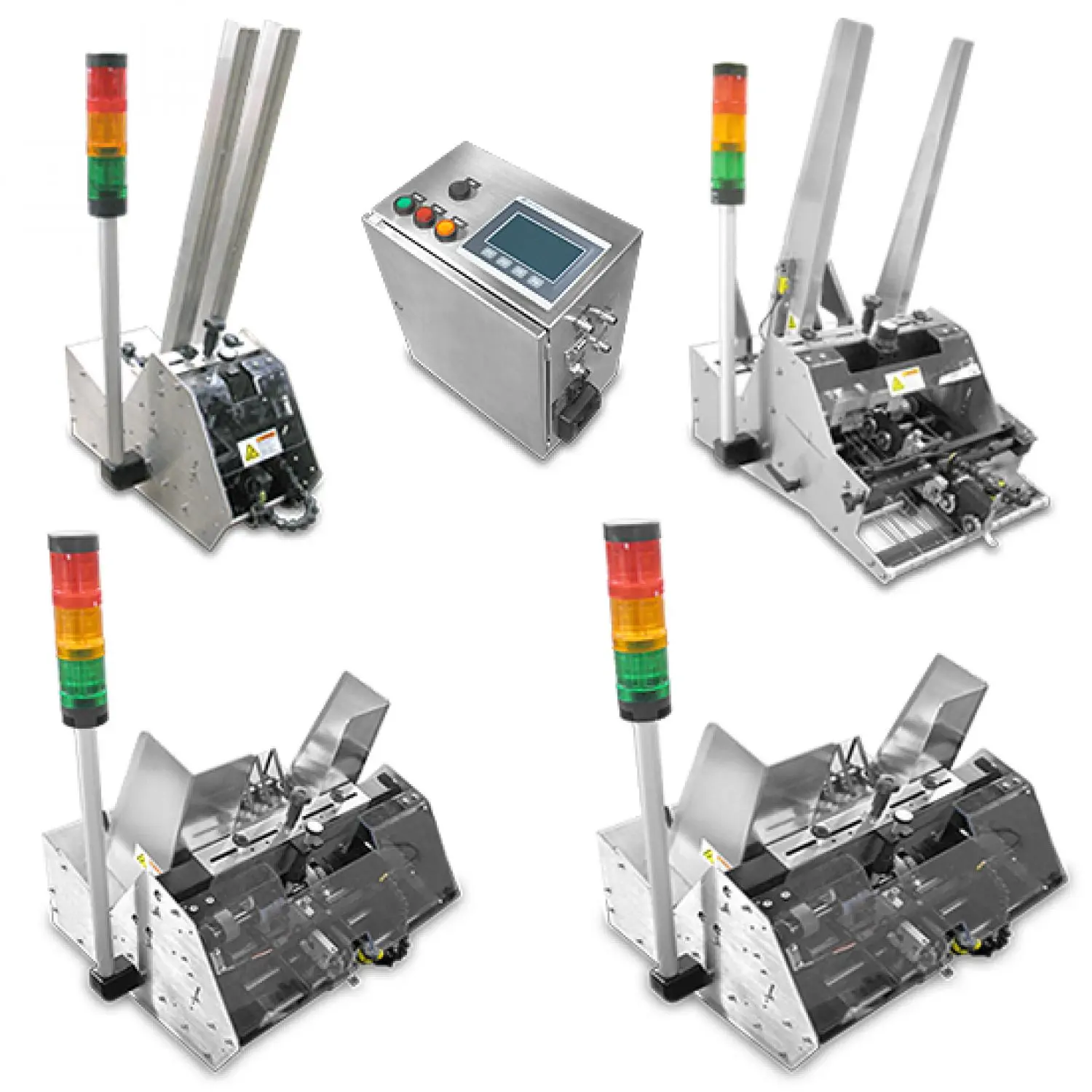

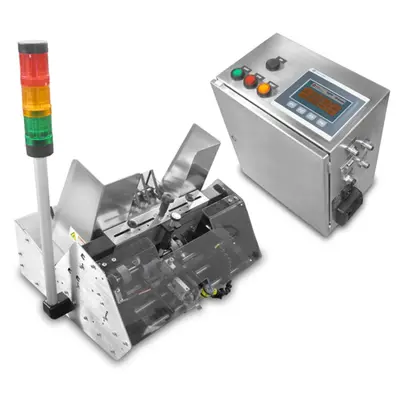

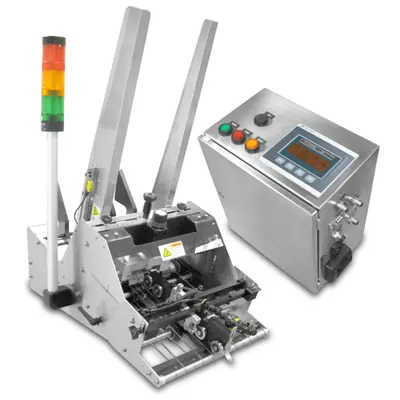

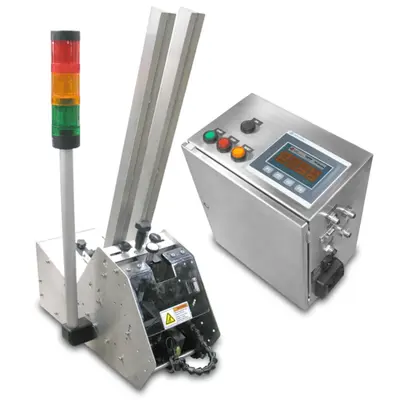

Streamfeeder P Series Friction Feeders

Features:
- Allen-Bradley touch screen display;

- Batch counting capabilities;

- Isolated 24VDC inputs and outputs;

- Miss-detect;

- One-knob side guide positioning;

- Photo-sensor trigger input;

- Rubber feed belts;

- Stand-alone self triggering;

- Timeout stop;

- Trigger delay;

- Vacuum assist.
Specification:
Maximum Product Size:

P-600: Standard: 6” wide x 9” long (152 x 229 mm)*;

Small Product Feeder: 5 W x 5 L in (127 x 127 mm)*.

P-1250: 12” wide x 14” long (305 x 357 mm)*.

P-1800: 18” wide x 14” long (457 x 357 mm)*.

P-2400: 24” wide x 14” long (609 x 357 mm)*.

Minimum Product Size:

P-600: Standard: 2” wide x 2.5” long (51 x 64 mm)*;

Small Product Feeder: 1 W x 1 L in (25.4 x 25.4 mm)*.

P-1800: 8” wide x 2.5” long (203 x 64 mm)*.

P-2400: 4” wide x 2.5” long (101.6 x 64 mm)*.

Min/Max Product Thickness: .003” – 1.00” (.076 – 25.4 mm)*;

Belt Speed: 7,000 in/min (178 m/min);

Batch Size: 1-9,999;

Utilities: 115/230vac, 50/60 Hz, 12/6A (configured).

Weight:

P-600: Feeder: 45 lbs. (20.4 kg); Control Box: 36 lbs. (16.3 kg);

P-1250, P-1800: Feeder: 50 lbs. (23 kg); Control Box: 36 lbs. (16.3 kg);

P-2400: Feeder: 60 lbs. (27.2 kg); Control Box: 36 lbs. (16.3 kg).
