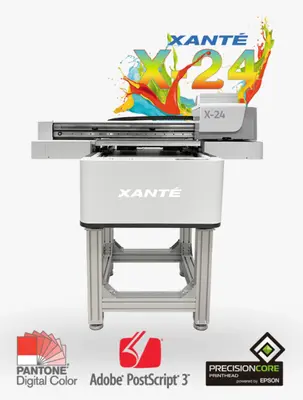

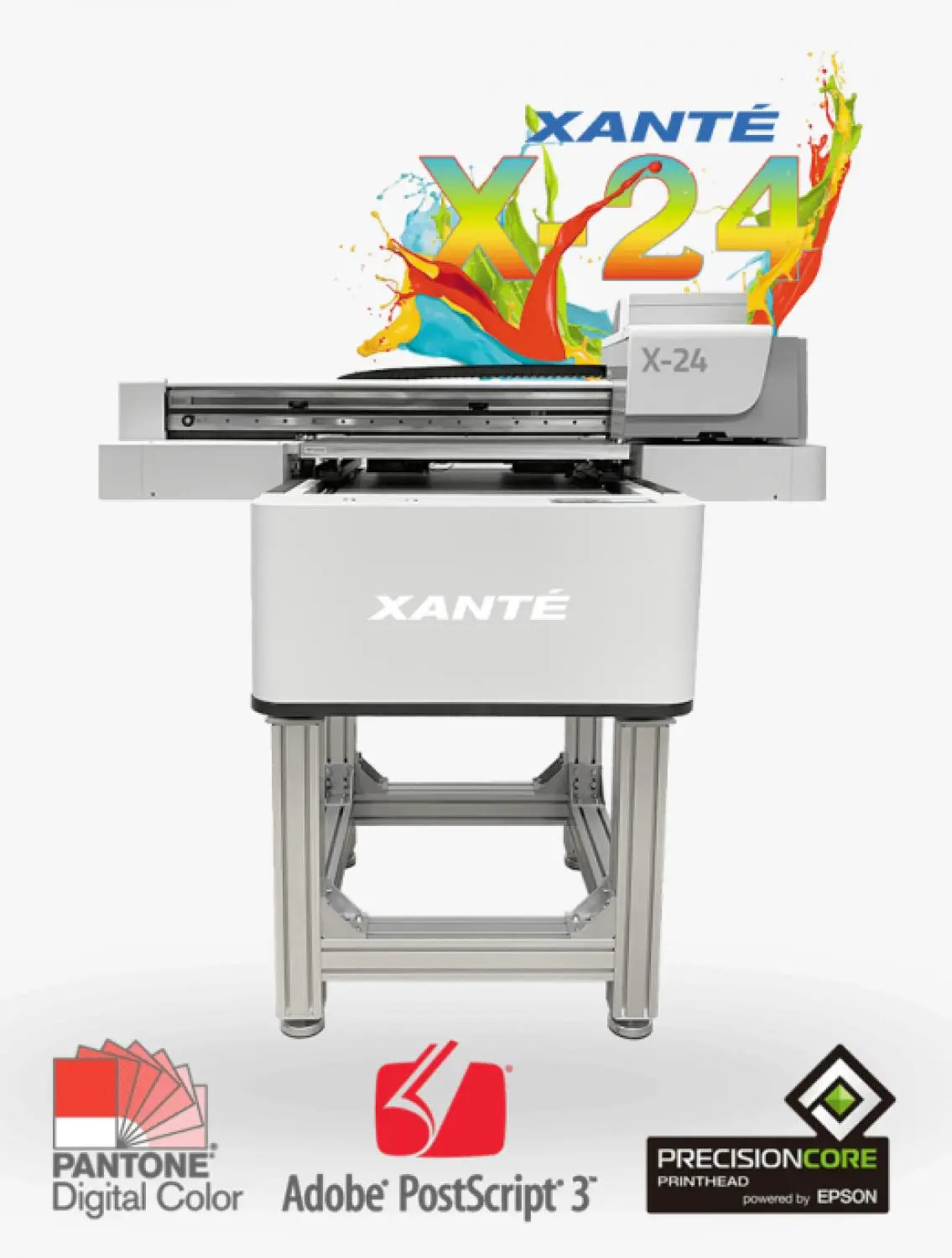

Xanté X-24 UV Inkjet Flatbed Printer

Features:
The X-24 printer is the perfect investment for your business. Print just 12 yard signs a week and your lease payment is covered, with the rest being pure profit! Don’t miss out on the opportunity to capitalize on the exploding sign market with our high-quality, cost-effective UV printers. The X-Series printers are ideal for printing indoor signage and outdoor signage.

Capable of printing up to 24” x 18” (60.9cm x 45.7cm), the X-24 utilizes a single LED lamp for instant ink curing. Print variable data and sequentially numbered items with independent color control. Build depth with layers of fast-drying, UV-cured ink. Create impressive displays that grab attention. This process is fast and renders strong, durable results. Print on media up to 6 inches (15.24cm) tall! Five ways to print intense, brilliant, pure white: Flood, White Active Pixels, White Inactive Pixels, White Spot Color, or No White. (CMYK + WW)
Specification:
PRINTING CAPABILITIES

Max. media size:

Min. media size:

Max. print height:

Media transport:

Print colors:

Resolution:

UV lamp:

24” x 18” (60.9cm x 45.7cm)

.5” x .5”

7” ( 17.78cm)

24” x 19.7” (60.9cm x 50cm)

Vacuum bed

CMYK + WW or CMYK + CMYK

1440/2160/2880 DPI Resolutions

Dual LED, 385-415 nM, low heat curing lamp

INK AND MEDIA

Ink type:

UV, 500 mL bottles per color

The maximum shelf life is 1 (one) year from Date of Manufacture (DoM). Once opened, the shelf life

is 2 (two) months or 1 (one) year from DoM, whichever comes first.

Media types:

PVC plastic, styrene, wood, aluminum, metal, acrylics, coroplast, ceramics, fabric, leather,

composites, paperboard, foamboard, glass, carpet, tile and more

PRINTER CONNECTIVITY

1-Gigabit Ethernet

PREPRESS SOFTWARE

Xanté iQueue Workflow:

Adobe® PostScript® 3™, Independent CMYK Density Control, Spot Color Matching, Imposition,

Digital File Editing, Variable Printing, and much more

WEIGHTS, DIMENSIONS

Dimensions:

Net/Gross weight:

Power supply:

38”L X 57.5”W X 28.5”H (97 x 146 x 72 cm)

255lbs (115kg)

110v or 220v 50-60hz

WORKING CONDITION

Operating temperature:

Relative humidity:

22-26°C (68°F - 78°F)

50-80RH
