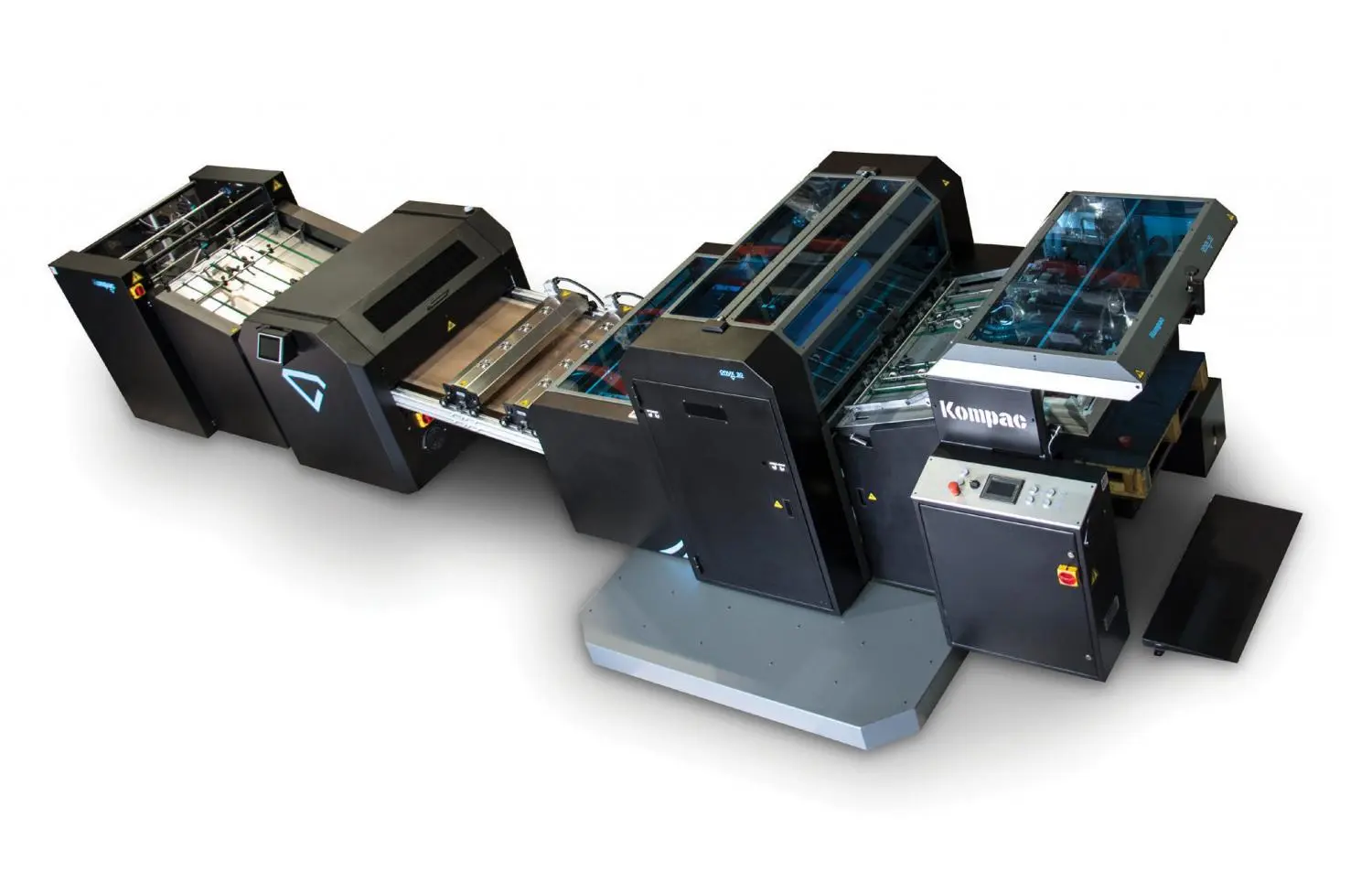

Kompac Onyx 30

Features:
- Flood and spot coat substrates up to 23” x 32” (584mm x 812mm) and 3-30 pt (60-600 gsm);

- Easily apply UV, aqueous, specialty coatings and primers;

- Flood or spot coat/prime at up to 6000 sph;

- Perfect solution for medium/large digital, commercial packaging, and label printers;

- High pile pallet stream feeder accepts pallets or dollies directly from digital or offset press, eliminating hand loading and optimizing productivity;

- High pile pallet stacker handles 34” (86cm) lift, and offers the perfect stack, ideal for subsequent finishing;

- Chambered anilox system for soft touch and UV matte;

- Die-cutting, creasing, and perfing;

- IR dryer with patented short-wave, high intensity intensity bulbs and air curtain (dual IR available) l 2-minute coating change.
Specification:
SHEET SIZE:

23” x 31.5” (584mm x 800mm)

23” x 30.5” (584mm x 774mm) with optional anilox

COATING AREA:

21.65” X 31.5” (550mm x 800mm)

MINIMUM SHEET SIZE:

10” x 12” (254mm x 305mm)

SPEED:

up to 6000 sheets per hour

STOCK WEIGHT:

3pt to 30pt (60 to 600g/m2)

FOOTPRINT:

6’ wide x 24’ long (1.8m x 7.4m)
