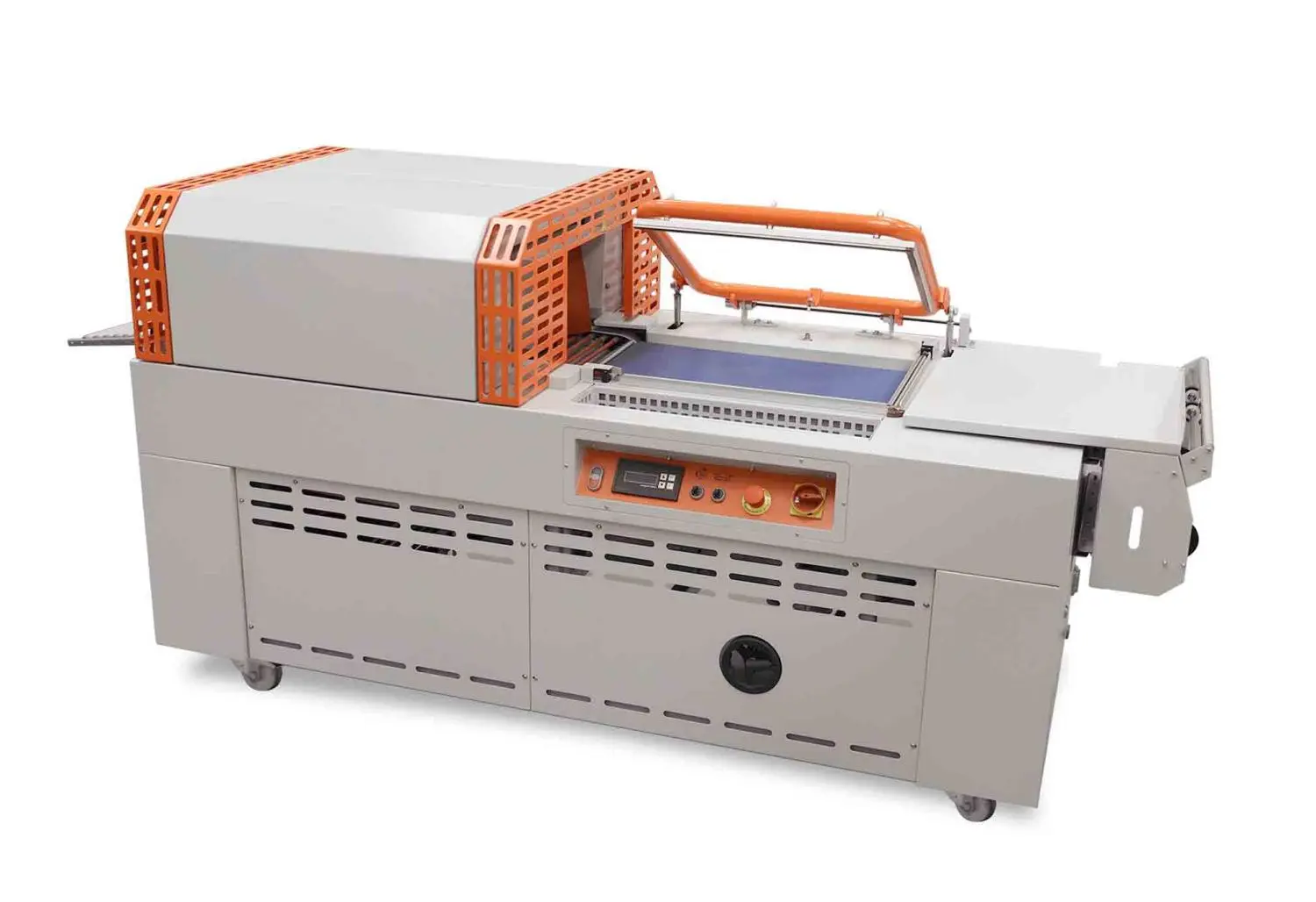

Clamco 250C Combo
Overview
The Clamco 250C Combo Shrink Wrap System combines an L-bar sealer with a shrink tunnel in one robust, compact unit. The 250C features a motorized closing seal bar arm that improves both operator ergonomics as well as production output. The power take-away conveyor quickly transitions product from the sealer to the tunnel. The high flow 6,000 watt tunnel is ideal for effectively shrink wrapping a range of products at a rate of up to 12 packs/min. The 250C Combo Series includes standard features and unique advantages not found on competitive systems in the same class.
Specs
Features:
L-Bar Sealer Features
- 17″ x 23″ seal area for shrink wrapping a range of product sizes
- Heavy-duty seal arm with motorized closing – push button or auto pace modes
- Quick height adjustment facilitates centering the seal on the product
- Heated seal blade for long-lasting performance and easy replacement
- Adjustable seal power provides high seal repeatability
- Designed to work with polyolefin up to 150 gauge and PVC up to 100 gauge
Shrink Tunnel Features
- Tunnel chamber size: 16″ W x 22 “L x 9” H
- 6,000 watt tunnel heating power provides high performance
- Digitally-controlled tunnel temperature for superior consistency
- Heavy-duty blower with adjustable velocity and flow for optimized performance
- Tunnel conveyor with variable speed and live rollers (1.25” spacing) for a better shrink result
- Insulated tunnel design minimizes heat loss and maintains temperature consistency
Operating Features
- User-friendly operator controls for fast, easy and repeatable setup
- Film cradle can accommodate up to 20″ wide centerfold film
- Pinwheel perforator wheels for rapid air escape that results in excellent shrink
- 20” long roller outfeed conveyor for package transfer at the end of the process
- Robust design with welded steel frame and 33” operating height
Safety Features
- Seal arm obstruction detection for ensured operator safety
- Automatic cool down for maximum component reliability
- Quick access to the entire electrical cabinet for easy troubleshooting
- Designed to meet CE requirements
- Locking casters for safe, stable operation
- Emergency stop button
Additional Options
- Foot Switch (Operator uses a foot switch to activate the seal bar, allowing operator to use hands to prepare the next product for sealing.)
- Palm Switch Cycle Activation – Magnetic Mount (A magnetically-mounted palm switch that triggers the machine to cycle, eliminating the need for using the fixed start button.)
Specification:
Seal length (end) - 17"
Seal length (side) - 23"
Film width (max) - 20" Centerfold
Tunnel opening width - 16"
Tunnel opening height - 9"
Tunnel inside length - 22"
Tunnel power (watts) - 6000 Watts
Electrical Requirements - 220V, 50 amps, 1 phase
Overall Dimensions - 106"L x 38"W x 50"H
Shipping weight (approx.) - 1,650 lbs
