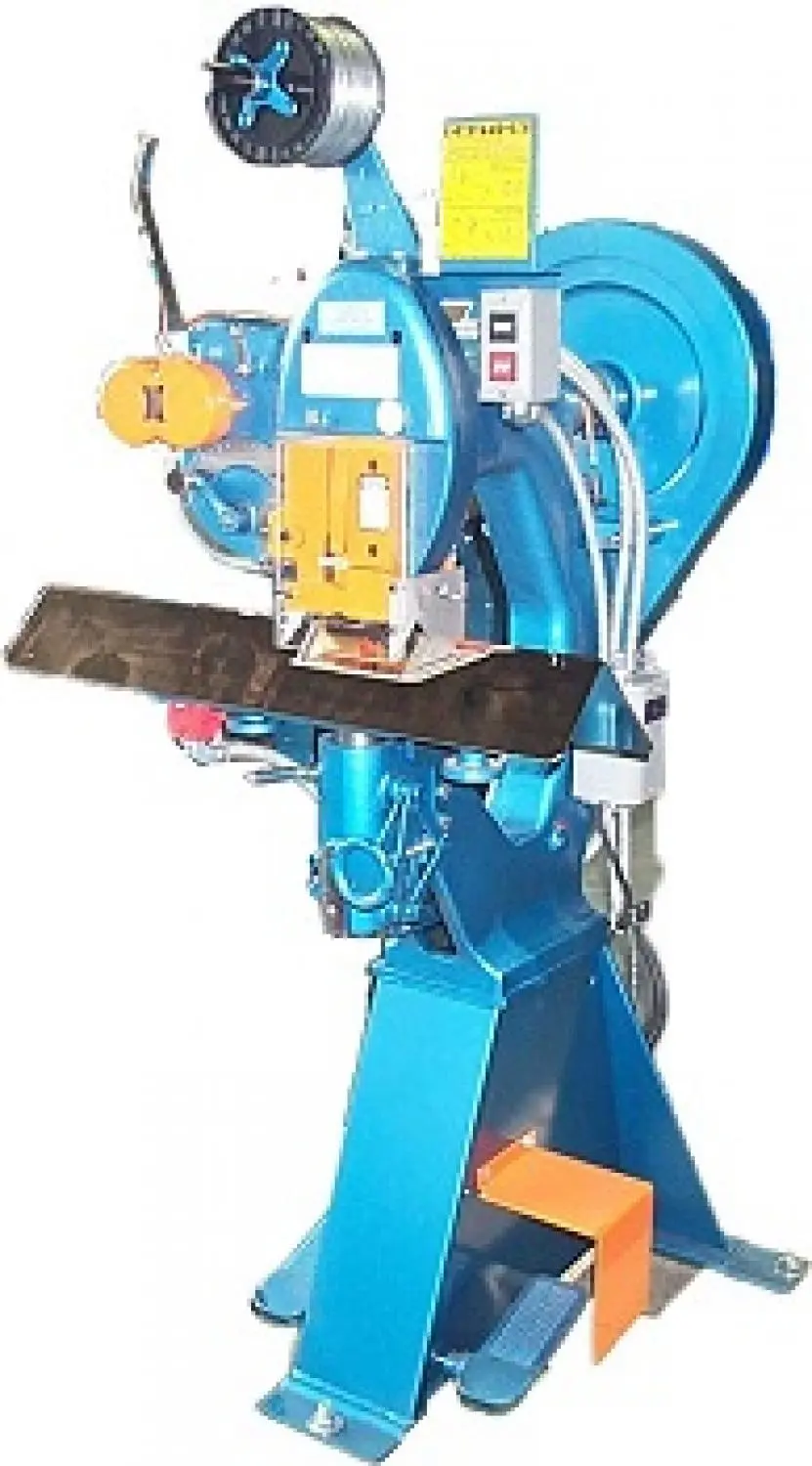

Deluxe Stitcher S3A Bindery Stitcher
Overview
MODEL S3A 7/8" - The two (2) sheet to 7/8" capacity stitcher. The S3A 7/8" performs like three stitchers in one. It's furnished with three sets of formers and drivers:
- a set for #25 round wire (2 sheets to 1/4");
- a set for #20 x #25 flat wire (1/4" to 1/2")*;
- a set for 19 x 21 1/2 flat wire (1/2" to 7/8").
As a result, the most particular customer will be pleased with perfect stitching on any job from two sheets to 7/8". The unit comes with saddle, flat table and gauges for flat and saddle stitching.
* Shipped with these parts installed.
MODEL S3A 1 1/8" - For consistently thick flat work ranging from 1/8" to 1 1/8". Features improved cut-off mechanism with carbide tip for #18 x 20# (type 230) high carbon book-binders wire. Comes with table and gauges for flat stitching. Saddle is optional. (for use in the 1/8" to 1/4" work range only).
Specs
Features:
Please contact us for more information.
Specification:
Throat Depth: Flat work 12" Saddle 15";
Capacity*:
S3A 7/8: 2 sheets up to 7/8";
S3A 1 1/8: 1/8" to 1 1/8".
Standard width of stitch:
S3A 7/8: 7/16";
S3A 1 1/8: 9/16".
Stitches per minutes: 191;
Stitcher clearance from top of compressed work to bottom of head: 1 7/16".
Stitch height from floor: 33".
Size of Wire:
S3A 7/8: 19 x 21 1/2; 20 x 24 Flat; 25 to 30 Round.
S3A 1 1/8: #18 x #20; Flat High Carbon; #20 x #25 Flat**.
Coil holders and wire supplied:
S3A 7/8: 1 holder, 1 coil #20X #25;
S3A 1 1/8: 1 holder, 1 coil #18 X #20.
Number of heads supplied with stitcher: 1.
Number of heads that can be used simultaneously: 1.
Size of table:
S3A 7/8: Flat 9" x 21" with gauges; Saddle 6" x 26".
S3A 1 1/8: Flat 9" x 21" with gauges; Saddle 6" x 26" (optional).
Floor (or bench) space:
S3A 7/8: 27" x 27 1/2";
S3A 1 1/8: 27" x 27 1/2".
Motor:
S3A 7/8: 1/3 HP, 115 AC 60 cycle single phase;
S3A 1 1/8: 1/3 HP, 115 AC 60 cycle single phase.
Net weight: 382lb.
Shipping weight: 457lb.
