CHAMP 185
Overview

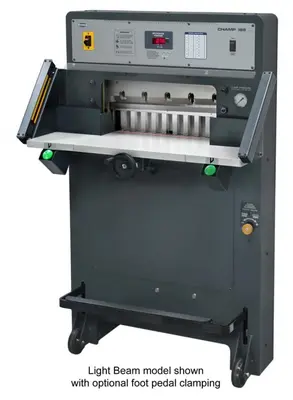

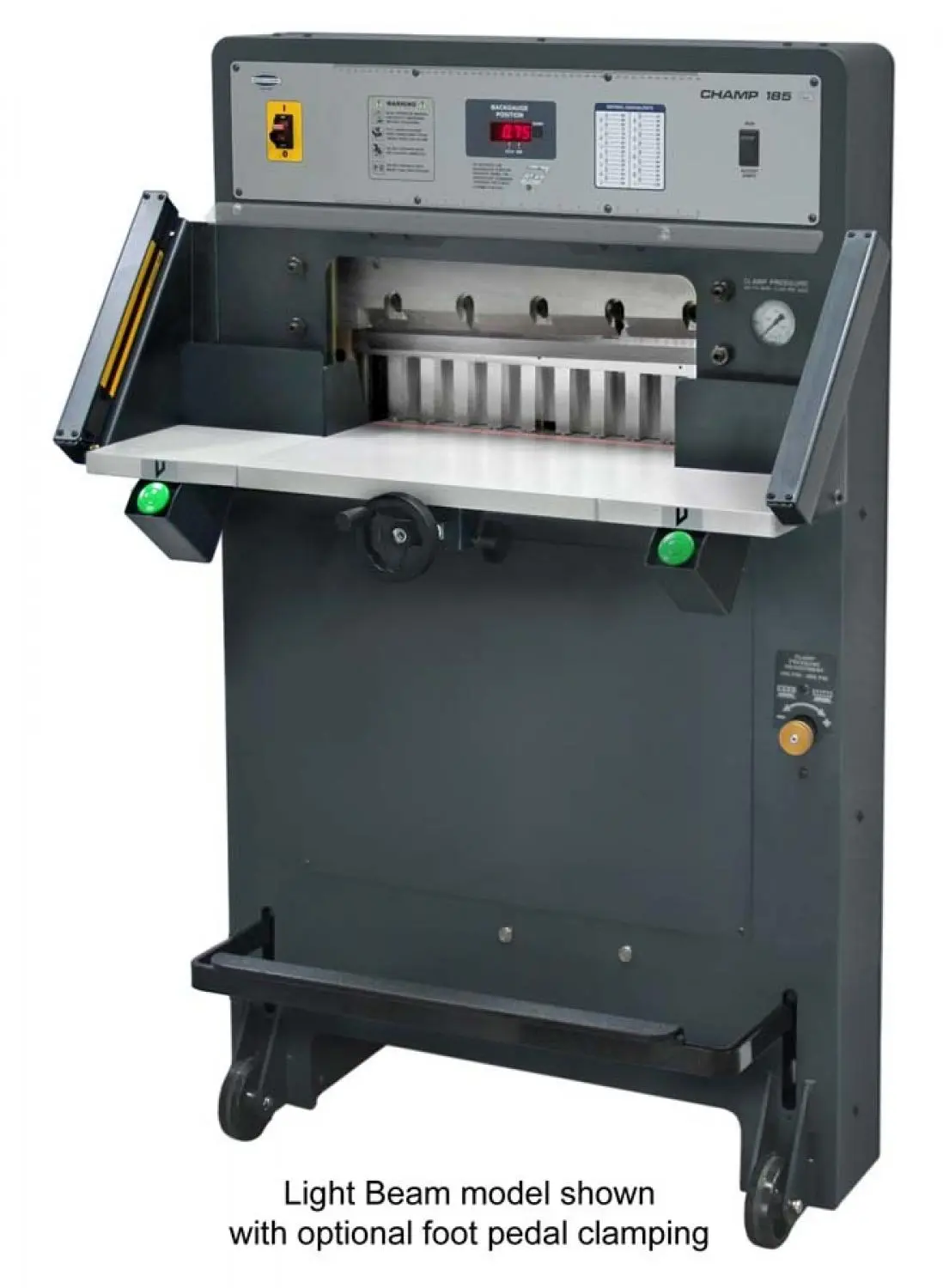

The CHAMP 185 series delivers hydraulic powered strength and durability with easy to use controls to the 18” cutter market that is crowded with weaker electric motor powered machines. The CHAMP's strong ¼” thick cold rolled steel weldment frame offers a superior design allowing operators to cut today's hard stocks accurately in piles of up to 3.25” high.
The USA made CHAMP 185 cutter has wheels with lockable casters allowing the machine to easily be moved - even through standard 36” wide doorways.
Specs
Features:
- 18.5” cutting width / 3.25” clamp opening
- Hydraulic clamping and cutting – 2,350 lbs. pressure
- 120 volt 1-phase power / optional 220 volt motor
- Adjustable clamp pressure
- Maximum cut 19” / minimum cut .75” (or 1.75” with false clamp plate)
- Red LED optical cut line-light indicator
- Machine dimensions 33.5” wide (tilt shield) x 42” deep
- Optional false clamp plate
- Optional pre-clamp foot pedal
- Optional light beam system replaces the front tilt shield
- One HHS knife, three cutting sticks, wood jogging aid, tool kit, knife change holder assembly, and operators manual included
- 1-year warranty
- CE certified
Specification:
General
Maximum Cutting Width 18-1/2” / 470 mm
Minimum Cut: without false clamp plate 3/4” / 19mm
Minimum Cut: with false clamp plate 1-3/4” / 45mm
Maximum Cut Depth 19” / 482mm
Clamp Opening: without false clamp plate 3-1/4” / 82mm
Clamp Opening: with false clamp plate 3” / 76mm
Table Space in front of knife 13-1/4” / 337mm
Dimensions
Overall Height 56” / 1423 mm
Overall Width (no side tables) 33-1/2” / 851 mm
Overall Depth 43-1/2” / 1105 mm
Net Weight (approx.) 775 lbs. / 342 kg
Shipping Weight (approx.) 920 lbs. / 417 kg
Electrical
Standard 120 Volt AC, 60 Hz, 1 Phase, 14 Amp (service size: 20 Amp) - power cord included
Power option 1 [Optional] 220 Volt AC, 60 Hz, 1 Phase, 10 Amp (service size: 20 Amp) – power cord included
Power option 2 [Optional] 230 Volt AC, 50 Hz, 1 Phase, 10 Amp (service size: 20 Amp) – power cord included
