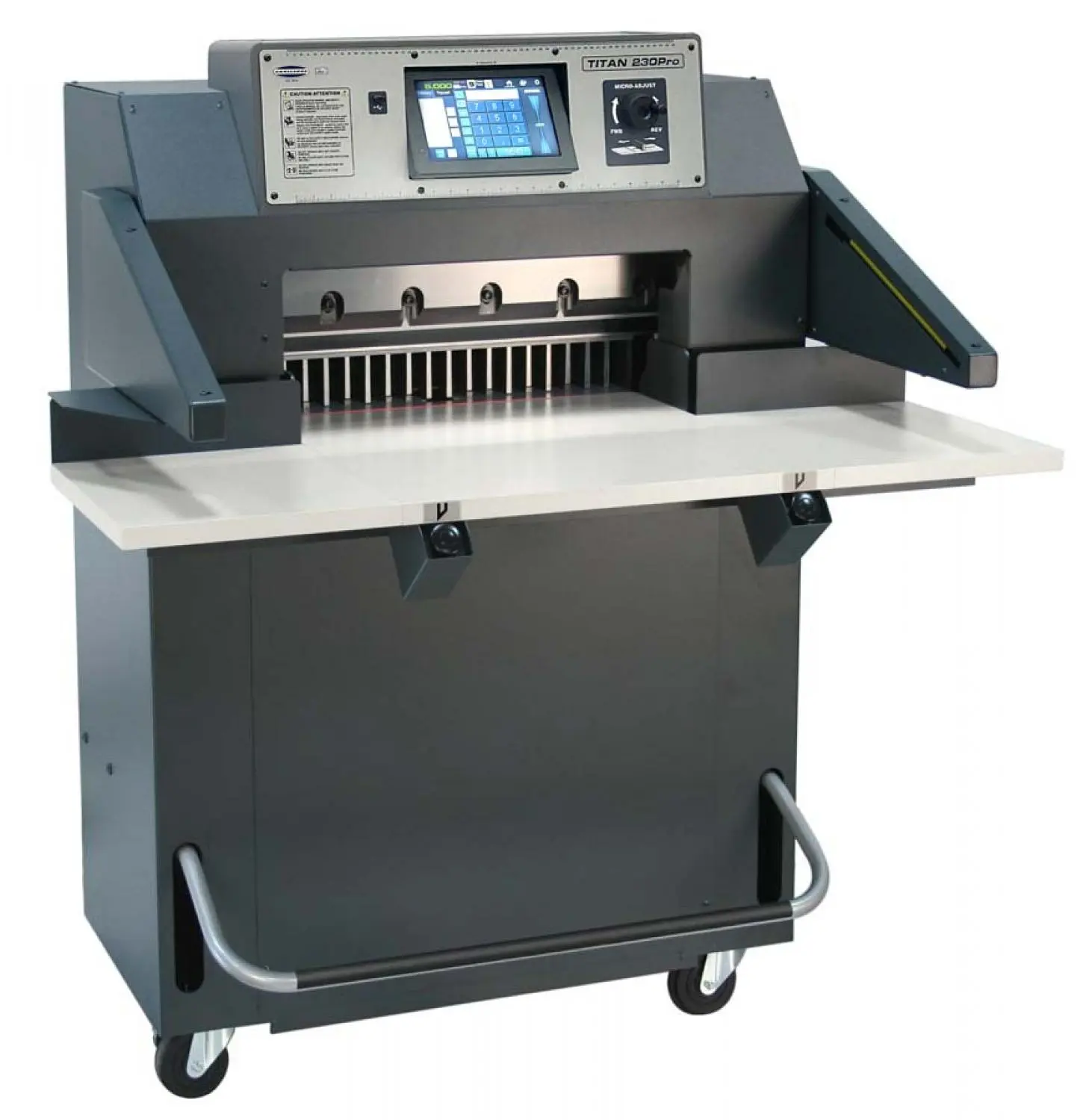

Titan 230Pro
Overview
With today’s digital print market placing great demands on your business, some decisions can be difficult. Investments in cutting-edge wide format, inkjet, and digital print engines ensure you meet your customer’s diverse needs, but there are so many choices! When it comes to choosing your next paper cutter, this one is easy… step up to a Titan 230Pro!
Upholding the Challenge excellence of innovation and strength we’ve become famous for since 1870. The Titan 230 is based on a solid cast iron and steel construction for maximum durability. UHMW gib surfaces, LED line lights, and a one-inch thick solid tool aluminum table require virtually no maintenance for years of trouble-free operation.
The intuitive "Pro" touch-screen controller allows easy job programming. The electronic clamp pressure control can be programmed for each step individually in a job. Machine self-diagnostics and error indication walks the operator through any potential difficulties.
The Titan 230Pro meets the toughest safety standards in the industry today. Category 4 safety eye beams, enclosed rear table, two-hand cut buttons, and knife safety latch contribute to our UL and CE certifications.
Specs
Features:
- Fully hydraulic cutting and clamping
- Solid cast iron and steel construction ensure years of trouble-free operation
- Solid 1-inch thick tool grade aluminum table offers the strong work surface required in production environments
- Bright red LED line light is easy to see and needs no future replacement
- Standard electronic clamp pressure adjustment
- Fully programmable controller offers intuitive operation and up to 9,801 total cut position storage
Specification:
General
Maximum Cutting Width 23" / 58.4cm
Minimum Cut w/o False Clamp Plate 1/2" / 13mm
Minimum Cut w/ False Clamp Plate 1-7/8" / 48cm
Maximum Cut Depth 24" / 61.0cm
Clamp Opening w/o False Clamp Plate 3-1/4" / 8.3cm
Clamp Opening w/ False Clamp Plate 3" / 7.6cm
Clamping Method Hydraulic and Manual
Backgauge Control Motor Powered
Dimensions
Table Space (in front of knife) 24-1/4" / 61.6cm
Table Space (behind knife) 24" / 61.0cm
Total Height 53" 135cm
Total Width 50" / 127cm
Total Length 66" / 168cm
Pass through opening (w/o beams & switch) 39" / 99cm
Pass through opening (w/o table & treadle) 29" / 73.7cm
Net Weight (approximate) 1000 lbs / 454 kg
Shipping Weight (approximate) 1120 lbs / 508 kg
Electrical
Motor Type Standard Motor
Hydraulic Pump 1-3/4 H.P. One Phase, 60 Hz, AC
Power option 1 208/230 Volts, 12 Amps (service size 15 Amps)
Power note Requires receptacle type: NEMA 6-15R or 6-20R
