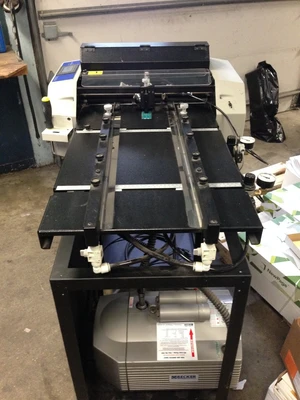

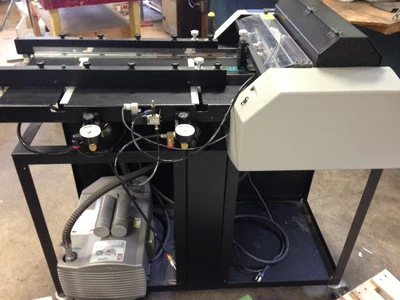

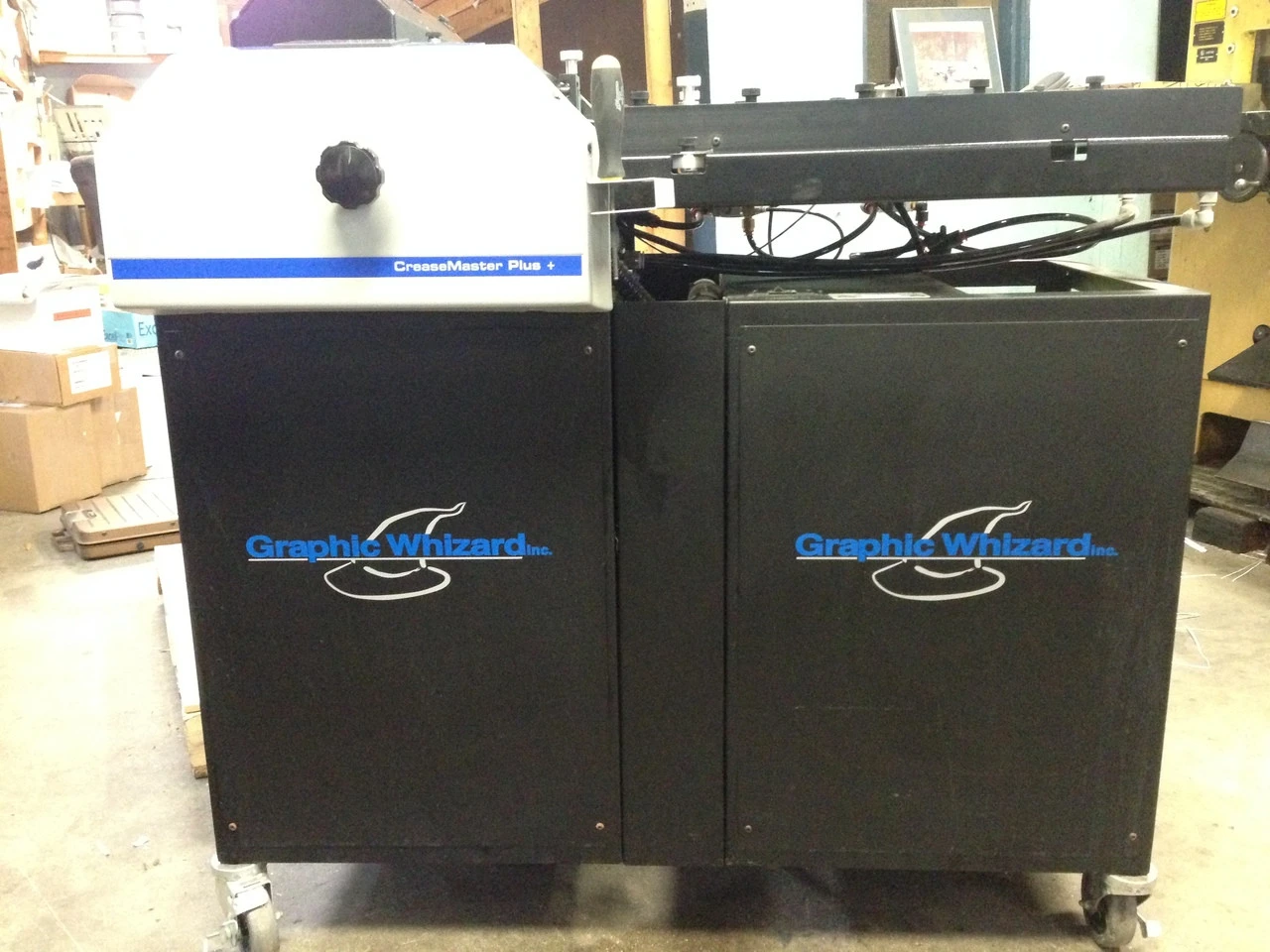

2010 Graphic Wizard Crease Master Plus

2010 Graphic Wizard Creasemater plus

            Serial#:2409653

            Model: CMPLUS-TS

            Air feed

            Comes with strike perf and impact perf

            This is in like new condition.



PRODUCT FEATURES:

Electrical:              120V/230V, 60/50Hz, 5.0 Amp

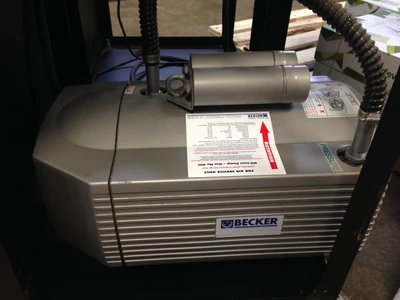

Pump is 20A

Maximum Speed (impact creasing): 4600 8.5 x 11″ sheets per hour *landscape 8.5″x 11″, 1 impact crease, job performance will vary dependent upon job specifications

Maximum Speed (rotary perf/score):              4900 8.5 x 11″ sheets per hour  *landscape 8.5″x 11″, rotary perf/score, job performance will vary dependent upon job specifications

Maximum stock size:           18″W x 25.5″L (45.7cm x 57cm)

Minimum stock size:            3.5″W x 5″L (8.9 cm x 12.7 cm)

Stock weight:        12lb. – 18 point (45- 385 gsm)

Dimensions:          Length: 60″ (1.52m)

Width: 27″ (0.69m)

Height: 46″ (1.17m)

Weight: 250 lbs. (114 kg)

Perforation options:            2,4,6,8,12,16 teeth per inch (TPI), 42, 50 and 72 Microperf TPI

Rotary score options:          Wide (standard) or narrow

Strike Perf attachment:      Optional

Impact Perf:          Optional

Creasing Die:        Wide (standard) or narrow

Slitting Blade:        Optional



ADDITIONAL FEATURES:

Impact creasing significantly reduces cracking of digitally-printed substrates during the finishing process.

Inverted and regular impact creasing in the same pass!

Up to 10 impact creases per sheet

Up to 20 jobs can be stored into memory

Easy-to-use programming. Set up in minutes!

Rotary perforations (at the entrance of the machine for accuracy; no tail whip) are anvil style and produce a “burr-free” finish. Microperfs are also available

Optional strike perf attachment and Impact Perf available for “box” or “T” perfs





Certified Installation and Training Available
