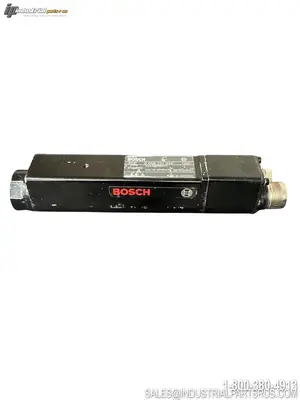

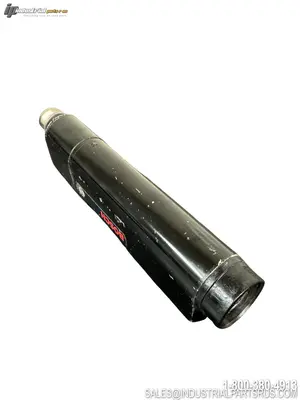

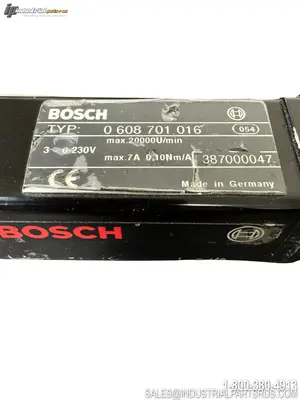

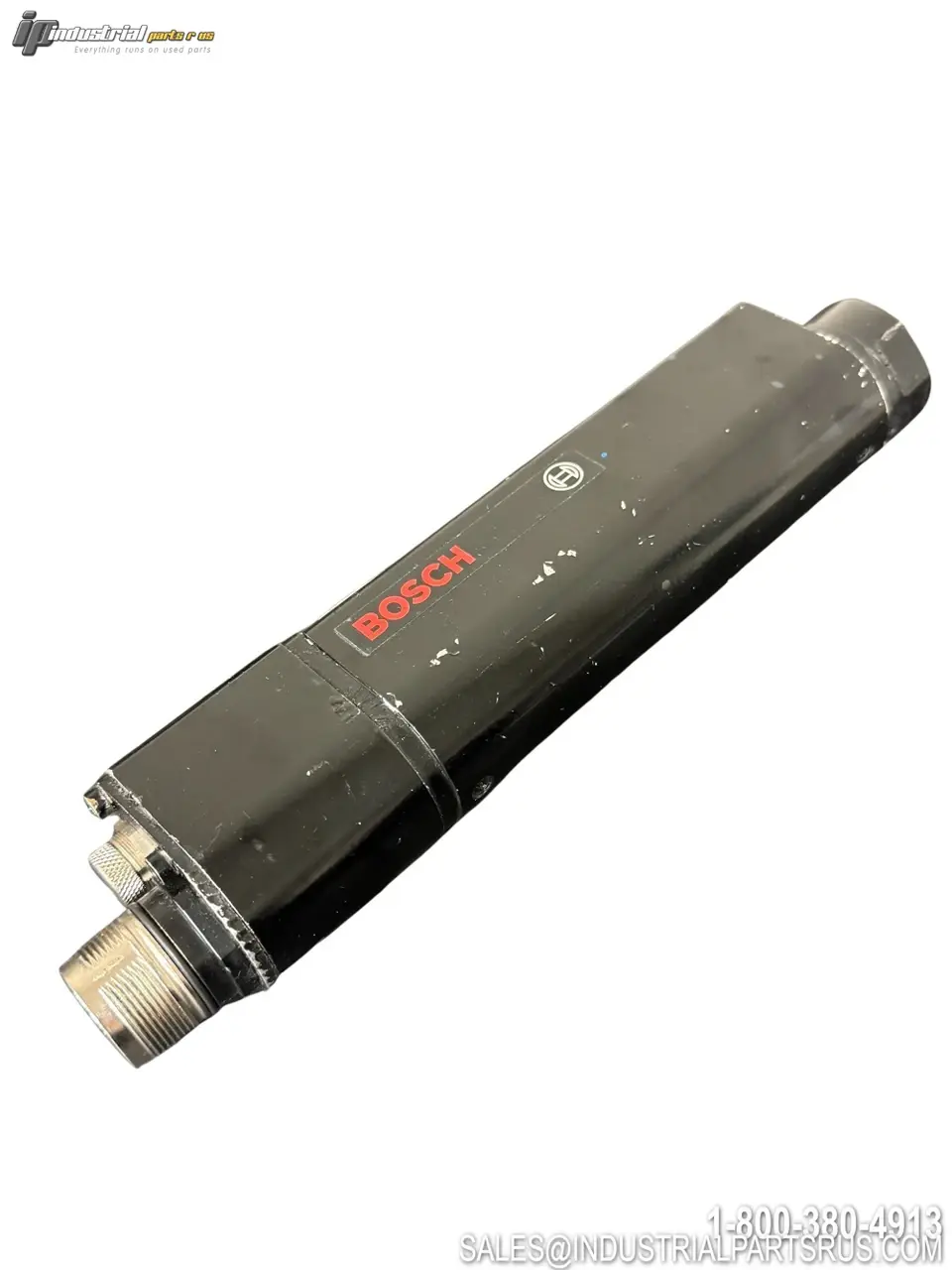

USED BOSCH 0608701016

The Bosch Rexroth 0608701016 is an EC302 SZ2 brushless EC (electronically commutated) servo motor belonging to the Bosch Rexroth System 300 tightening series. Designed for high-speed precision tightening spindle applications, this motor features a 14-pin industrial connector and is rated for up to 20,000 RPM with a three-phase 0–230V supply. It is commonly deployed in automated assembly and torque tightening systems where compact size and high rotational speed are critical requirements.
Specification
Value
Brand
Bosch Rexroth
Model / Part Number
0608701016
Type Code
EC302 SZ2
Product Series
System 300
Motor Type
EC Motor (Electronically Commutated / Brushless)
Supply Voltage
0–230 V (3-phase AC)
Max Speed
20,000 RPM
Max Current
0.7 A
Torque Constant
0.1 Nm/A
Rated Torque
0.6 Nm
Peak Torque
0.7 Nm
Connector Type
14-Pin Industrial Connector
Application
Tightening Spindle / Automated Assembly
Weight (approx.)
0.85 kg
Manufacturer
Bosch Rexroth AG
We warranty all items for 30 days from date of purchase.
