NEW ORIENTAL MOTOR DSP502MD

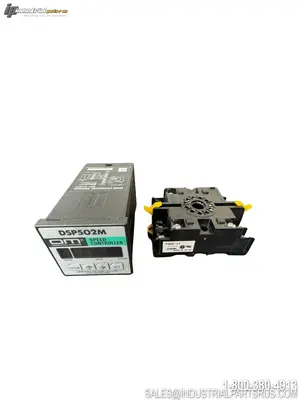

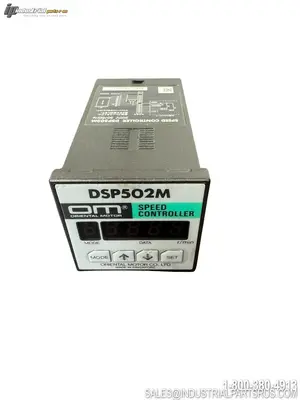

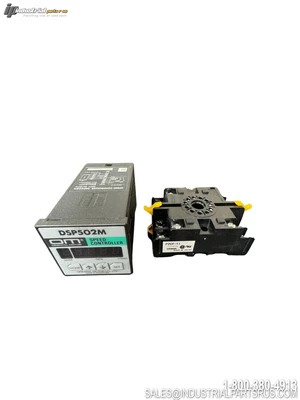

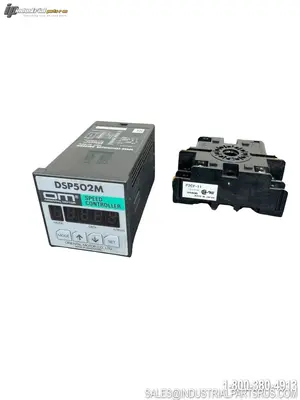

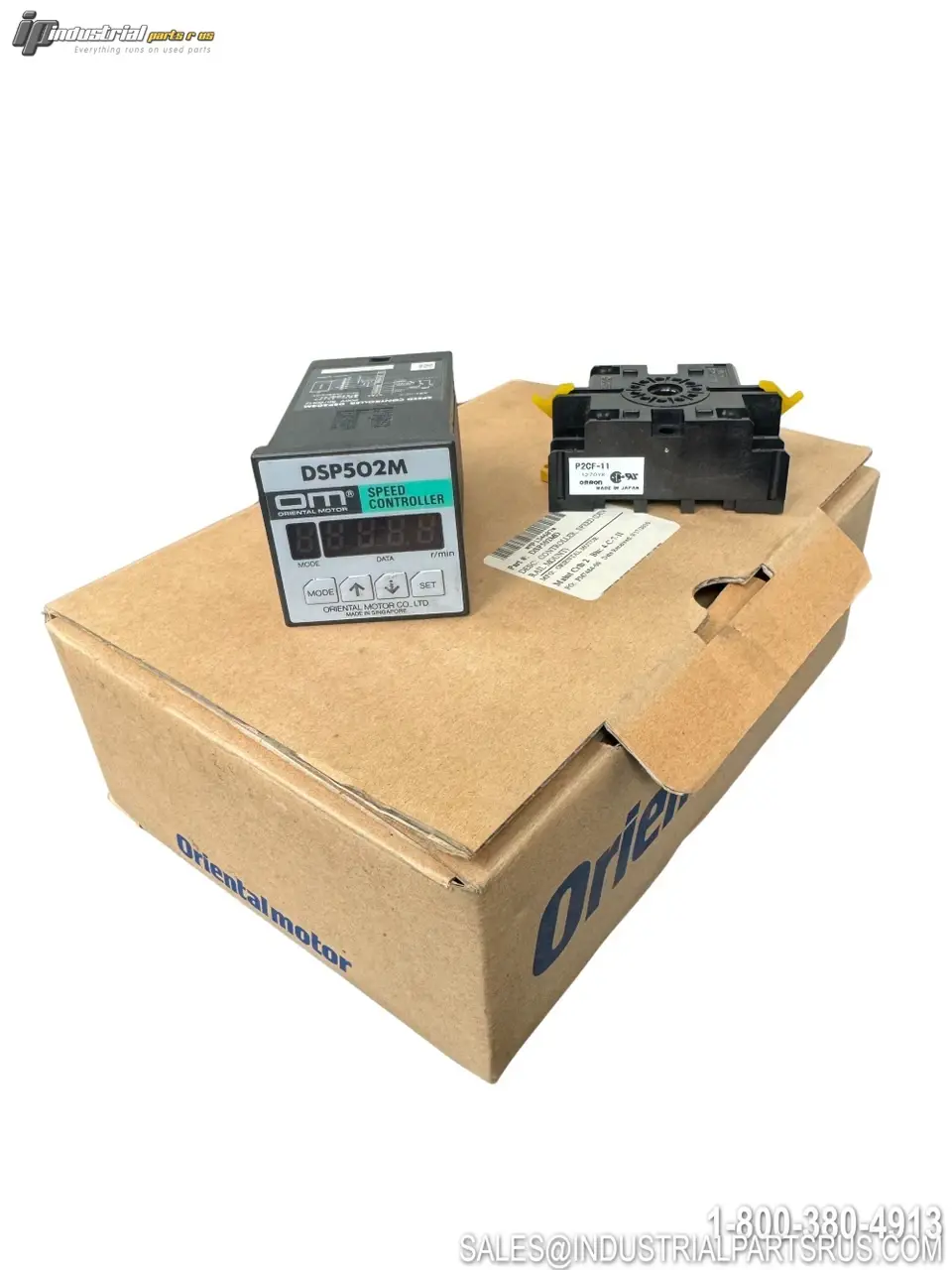

The Oriental Motor DSP502MD is a Speed Control Pack from the MSD Series, designed for use with single-phase 200V AC speed control motors rated from 6W to 40W. It features non-contact speed control with a built-in digital tachometer, photocoupler signal inputs for CW/CCW/Speed Select control, and DIN rail mounting for convenient installation in control panels or switchboards. Speed can be set digitally in 10 r/min increments across a wide range of 90 to 1400 r/min (50Hz) or 90 to 1700 r/min (60Hz).
Specification
Value
Brand
Oriental Motor
Model / Part Number
DSP502MD
Product Series
MSD Series
Product Type
Speed Control Pack
Power Supply (Input Voltage)
Single-Phase 200V ±10%
Input Frequency
50/60 Hz
Applicable Motor Output
6W, 15W, 25W, 40W
Control Power Supply
DC 24V ±10%, 0.1A minimum
Control Input Type
Photocoupler input (CW / CCW / SPEED SELECT)
External Contact Rating
DC 26.4V, 15mA
Speed Control Range (50 Hz)
90 – 1400 r/min
Speed Control Range (60 Hz)
90 – 1700 r/min (90–1600 r/min for 6W)
Speed Setting Method
Digital, settable in 10 r/min increments
Display
7-Segment LED (rotation speed display)
Mounting Type
DIN Rail
DIN Rail Width
35 mm
Phase
Single-Phase
Functions
Speed Control, Non-contact Instantaneous Stop, CW/CCW, Speed Switching, Slow Start/Slow Down, Abnormal Stop
Electromagnetic Brakes / Clutches
No
Environment
Standard
Product Status
End of Production (Order cutoff: January 29, 2027)
