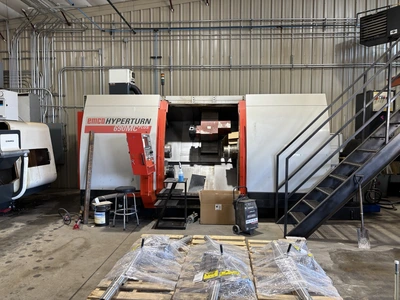

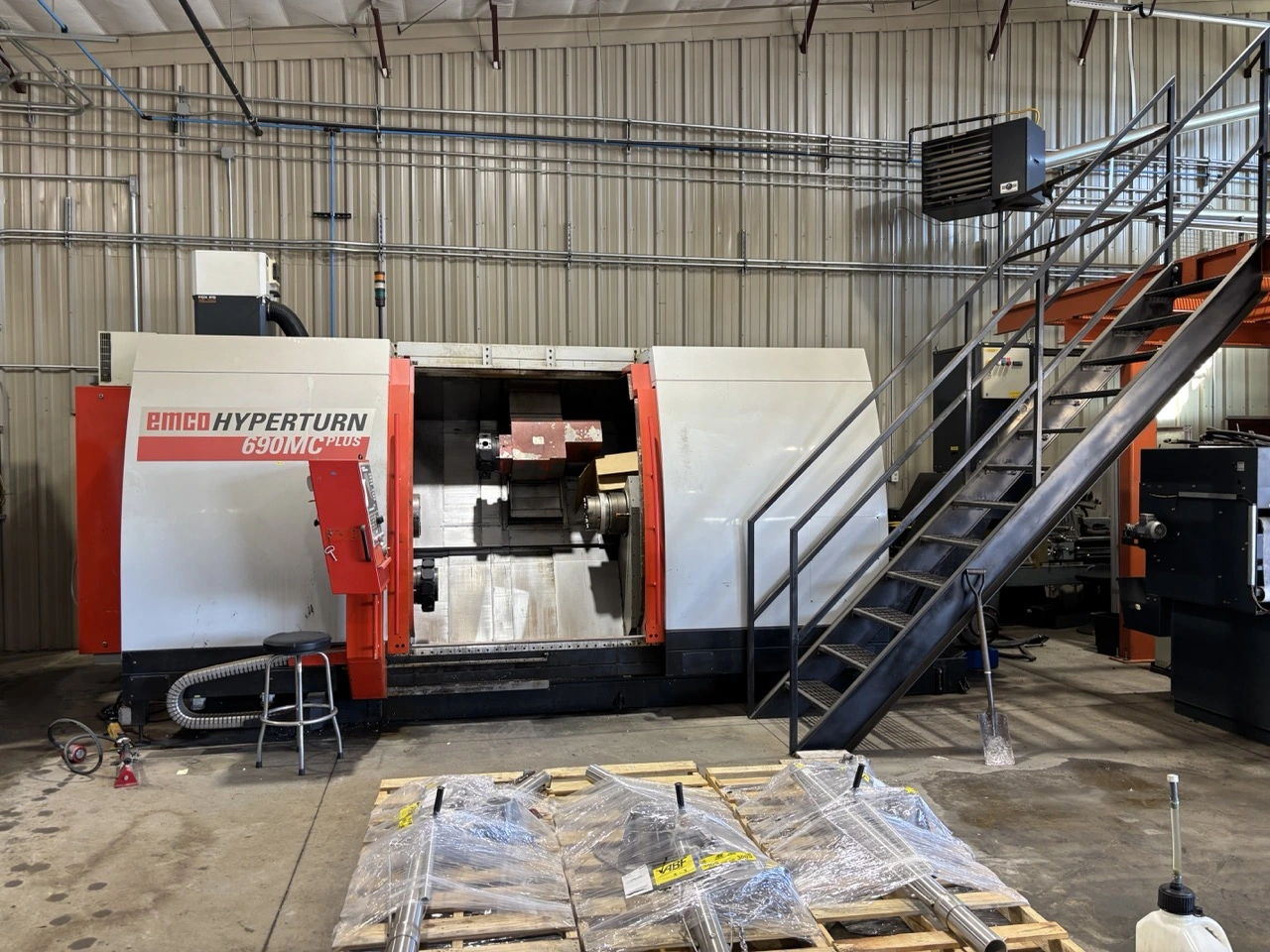

USED 2004 EMCO HT690MC TMYPLUS

Swing Over Bed: 27.56″
Maximum Turning Diameter: 20.47″
Distance Between Spindle Noses: 59.06″
Bar Capacity: 3.74″
Main Spindle Bore: 4.17″
Main Spindle Nose: A2-8
Main Spindle Speed: 3,200 RPM
Main Spindle Power: 49.6 HP Continuous / 72.4 HP At 40% Duty
Subspindle Nose: A2-8
Subspindle Speed: 3,200 RPM
Subspindle Power: 22.8 HP Continuous / 33.5 HP At 40% Duty
X1 Axis Travel: 11.02″
X2 Axis Travel: 11.02″
Z1 Axis Travel: 41.54″
Z2 Axis Travel: 42.91″
Subspindle Travel: 43.31″

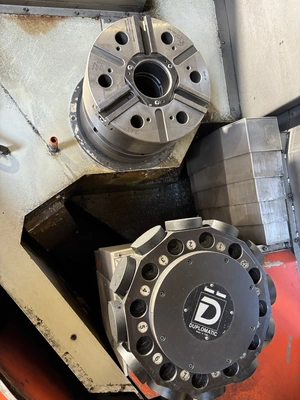

Turret Quantity: 2
Tool Capacity: 12 Stations Per Turret
Driven Tool Capacity: 12 Stations Per Turret
Toolholder Interface: VDI 40
Live Tooling Speed: 3,000 RPM
Live Tooling Power: 7.8 HP Continuous / 14.1 HP At 40% Duty
X/Z/Subspindle Rapid Traverse: 1,181 IPM
Coolant Tank Capacity: 111 Gal.
Approximate Weight: 33,069 Lbs.
Equipped With:

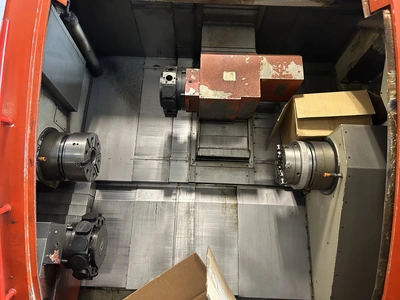

– Twin Tool Turrets
– Subspindle
– Live Tooling
– Y-Axis Capability
– C-Axis Positioning
Hydraulic Chuck Requires Cylinder Replacement
