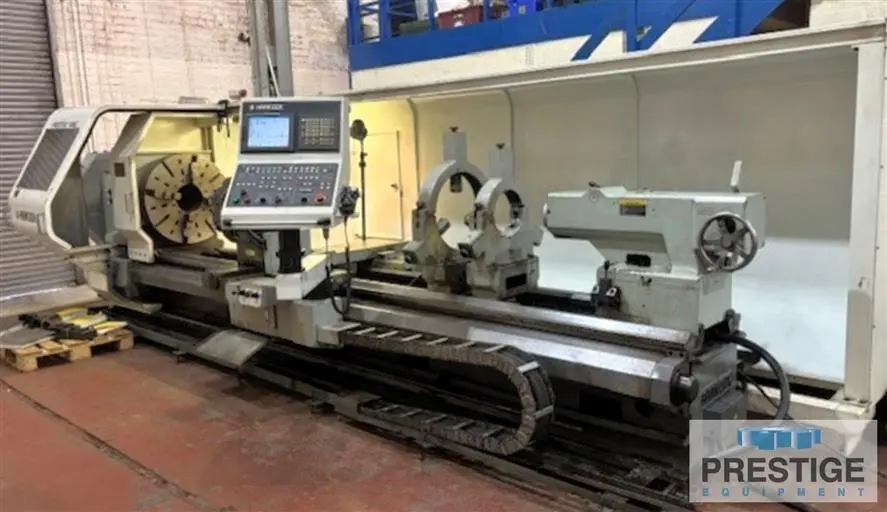

USED 2010 HANKOOK PROTEC 9NC

CAPACITY:
Maximum Swing Over Bed: 37.4"
Maximum Swing Over Slide: 24.8"
Distance Between Centers: 157.48"
Maximum Workpiece Weight: 11,000 Lbs

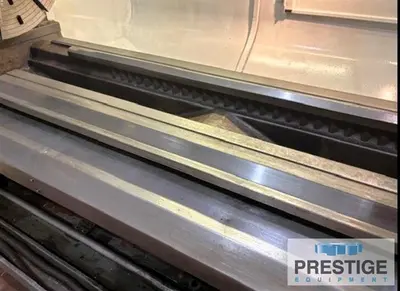

Bed Width: 24.8"
Spindle Speeds, 3 Ranges: 2-630 RPM
Spindle Bore: 10"
Spindle Drive Motor: 49 HP
X-Axis Travel (Cross): 21.1"
Z-Axis Travel (Longitundinal): 151"
X-Axis Rapid Traverse: 157 IPM
Z-Axis Rapid Traverse: 236 IPM
Tailstock Quill Diameter: 6.3"
Tailstock Spindle Taper: #6 MT
Approx Overall Machine Weight: 20,220 Lbs.

Equipped With:

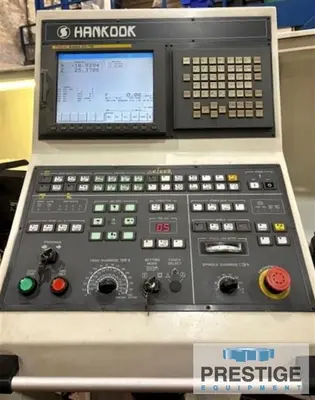

Fanuc 21i-TB CNC Control

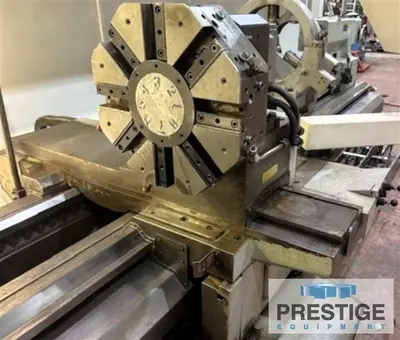

Duplomatic 8-Station Auto Indexing Turret

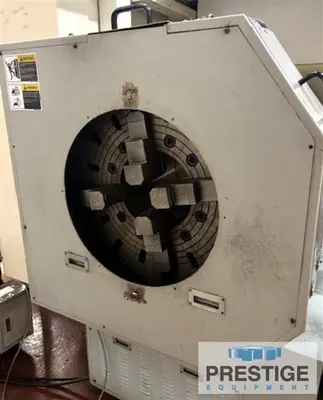

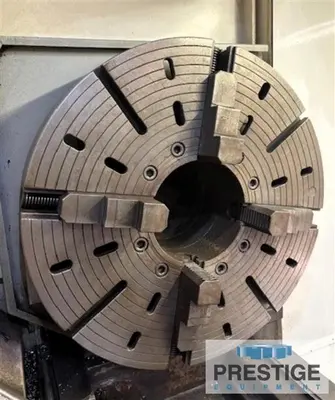

31.49" 4-Jaw Front & Rear Chucks

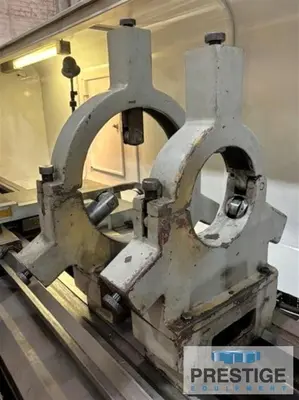

9.8" Steady Rest
17.7" Steady Rest
Tailstock

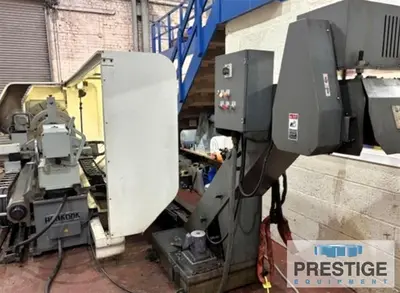

Chip Conveyor

Features:
Fanuc 21i-TB CNC Control
10" Spindle Bore
31.49" 4-Jaw Front & Rear Chucks
