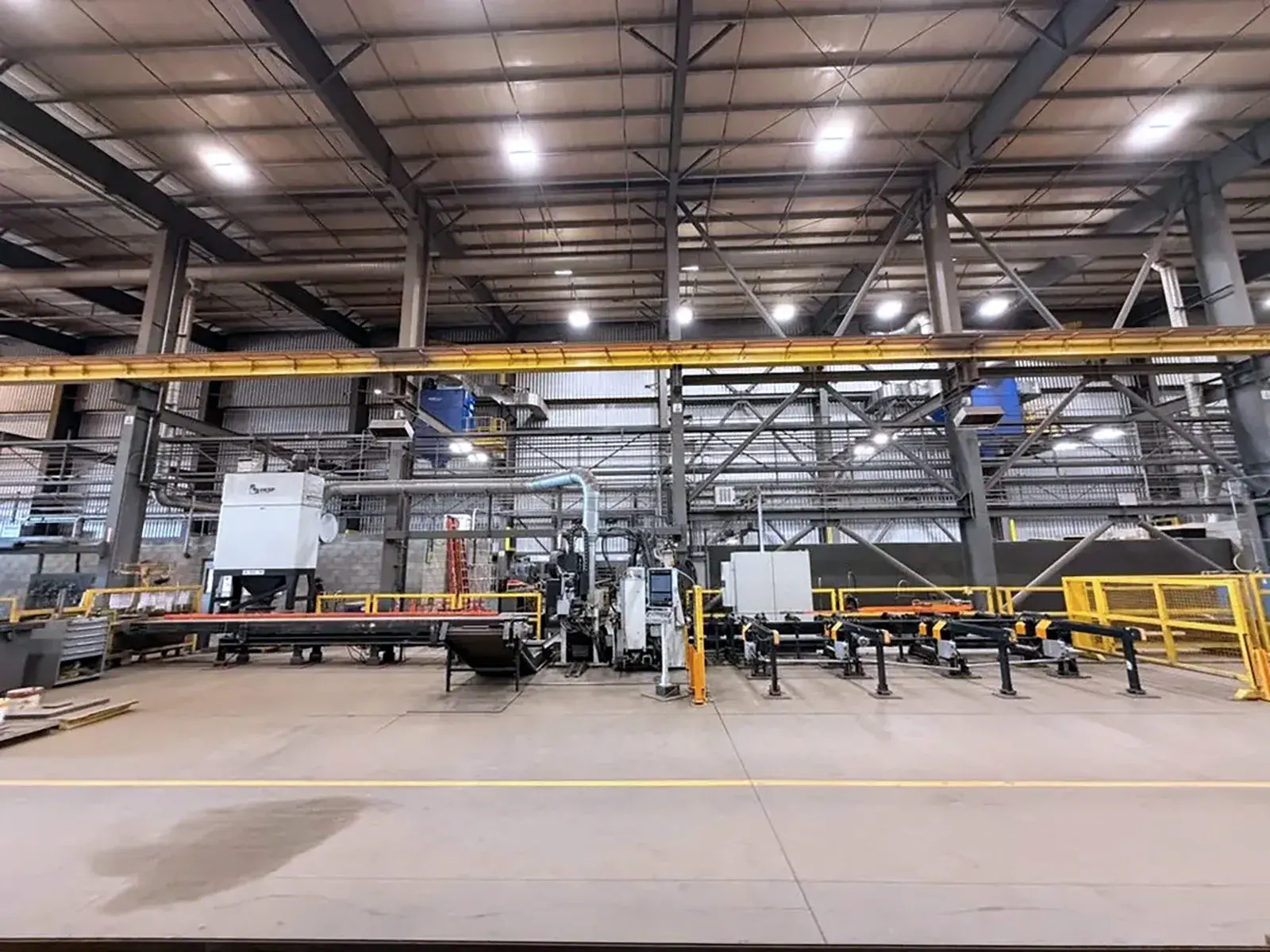

USED 2016 FICEP TIPO D8 FLAT & ANGLE PROCESSING LINE

Ficep CNC Control: 15" touchscreen. Windows 7. CANopen fieldbus
Hypertherm HPR260 Plasma System
2D/3D Graphics Package
Automatic Nesting & Optimization
Flats Punching Unit
8 Position Flat Punch Tool Changer
Horizontal Punching Unit
CNC Drilling Unit
Flats Shear
Angle Shear
CNC Marking Unit
CNC Torch Positioning
Outfeed Conveyor System
Minimum Flat Capacity: 2" × 0.24" (50 × 6 mm)
Maximum Flat Capacity: 20" × 1" (510 × 25 mm)
Minimum Angle Capacity: 2" × 2" × 0.24" (50 × 50 × 6 mm)
Maximum Angle Capacity: 8" × 8" × 0.63" (200 × 200 × 16 mm)
Minimum Profile Length: 8.2 ft (2,500 mm)
Maximum Drill Diameter: 1.57" (40 mm)
Maximum Drill Thickness: 1.57" (40 mm)
Drill Spindle Motor: 7.4 HP (5.5 kW)
Drill Speed Range: 180–800 RPM
Flat Punching Force: 123.6 tons (1,100 kN)
Maximum Flat Punch Diameter: 1.81" (46 mm)
Maximum Flat Punch Thickness: 1" (25 mm)
Horizontal Punching Force: 67.4 tons (600 kN)
Horizontal Punch Throat Depth: 6.3" (160 mm)
Maximum Horizontal Punch Diameter: 1.18" (30 mm)
Maximum Horizontal Punch Thickness: 0.63" (16 mm)
Shear force: 247.2 tons (2,200 kN)
Maximum Flat Shear Capacity: 20" × 1" (510 × 25 mm)
Flat Miter Cuts: ±45° up to 13.8" (350 mm)
Angle Shear Force: 337.2 tons (3,000 kN)
Angle Shear Max Capacity: 8" × 8" × 0.79" (200 × 200 × 20 mm)
Marking Unit Force: 8.99 tons (80 kN)
Maximum Plasma Thickness: 1" (25mm)
Electrical Requirements: 480V 3 Phase
