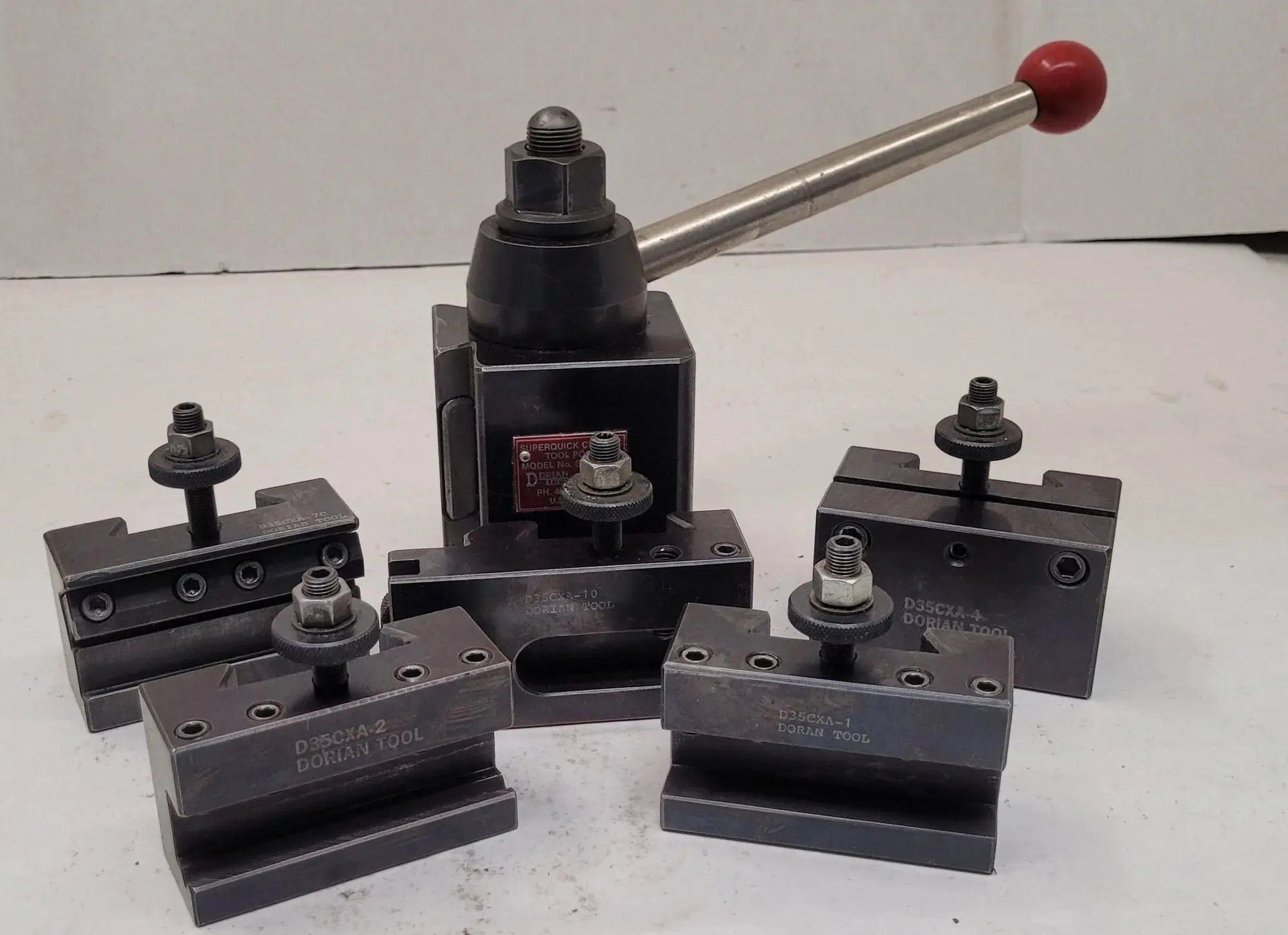

Dorian Tools SD35CXA Quick Change Tool Post Set With 6 Holders

DORIAN TOOLS SD35CXA QUICK CHANGE TOOL POST W/ HOLDERS 6 PIECE SET
USED
BRAND: DORIAN TOOLS

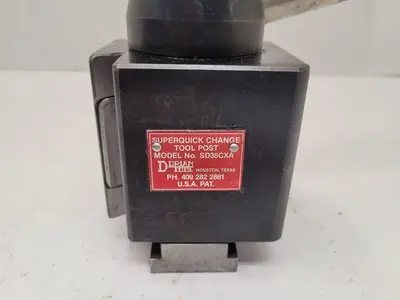

TYPE: SD35CXA

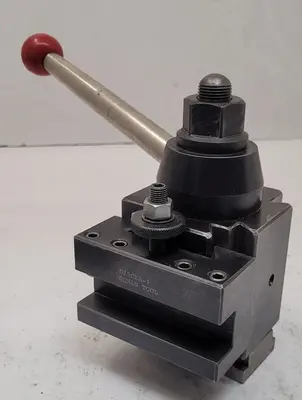

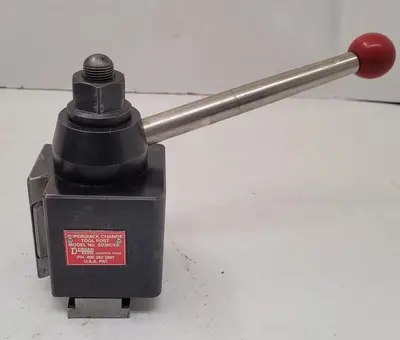

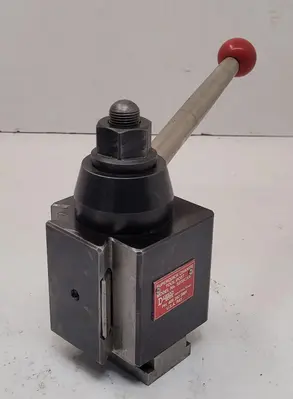

QUICK CHANGE TOOL POST
TOTAL PIECES IN SET, INCLUDING POST: 6
LATHE SWING: 14" TO 17"
TOOL CAPACITY: 3/4" TO 1" (20–25 MM)
OPTIMUM CENTER HEIGHT: 1.625" (41.28 MM)
HOLDING POST THREAD SIZE: 3/4"-16
TOOL POST STYLE: WEDGE TYPE
REPEATABILITY: PRECISE WITHIN .0001"
A (BASE WIDTH): 3.500" (88 MM)
B (BODY HEIGHT): 3.250" / 2.250" DEPENDING ON REFERENCE SURFACE
C (OVERALL HEIGHT): 5.650"
D (BOLT HOLE DIAMETER): 0.750" (19 MM)
E (CENTERLINE-TO-BODY): 1.199" (30.45 MM)
-DIAGRAM IN PHOTOS
INCLUDES THE FOLLOWING HOLDERS:

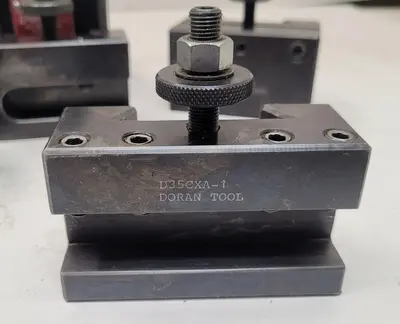

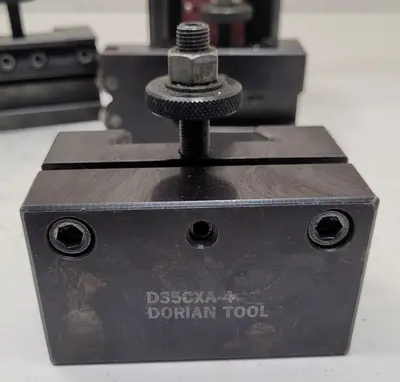

D35CXA-1

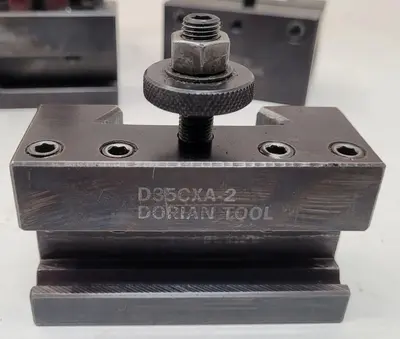

D35CXA-2

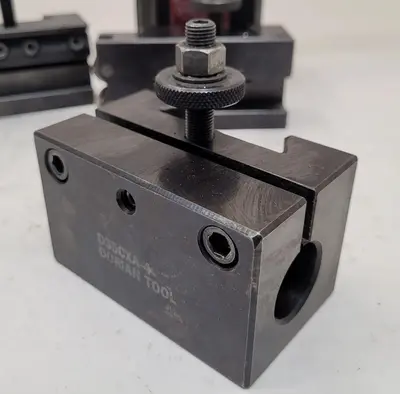

D35CXA-4

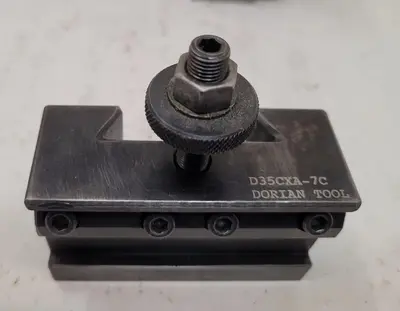

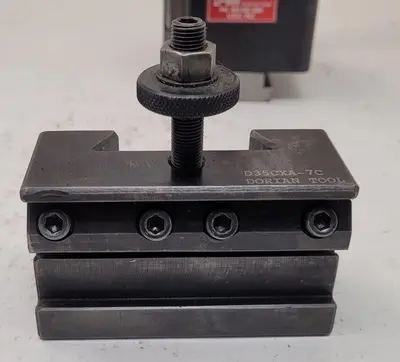

D35CXA-7C

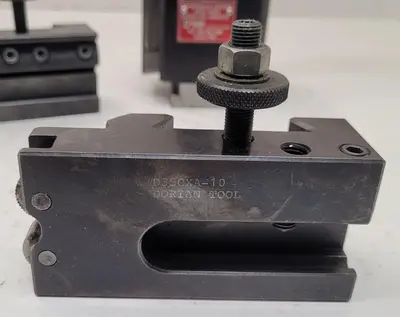

D35CXA-10
