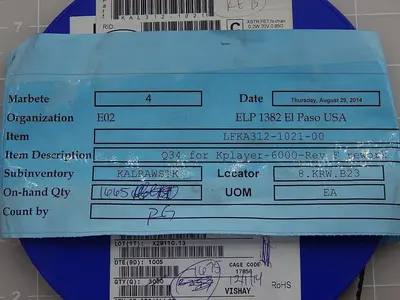

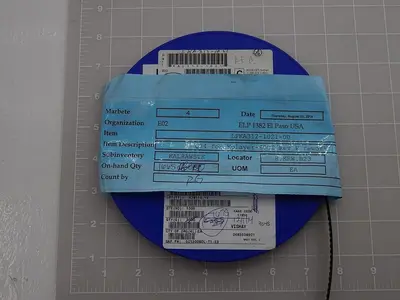

Lot of 1600 Vishay LFKA312-1021-00 SI1300BDL-T1-E3 MOSFET 20V 0.4A 0.2W 0.85OHM @ 4.5V

THE VISHAY SI1300BDL-T1-E3 IS AN N-CHANNEL TRENCHFET® POWER MOSFET WITH A MAXIMUM DRAIN-SOURCE VOLTAGE (VDS) OF 20V AND A CONTINUOUS DRAIN CURRENT (ID) OF 0.4A. IT EXHIBITS A MAXIMUM ON-RESISTANCE (RDS(ON)) OF 0.85 OHM WHEN THE GATE-SOURCE VOLTAGE (VGS) IS 4.5V. THE TOTAL POWER DISSIPATION (PD) FOR THIS DEVICE IS 0.2W. THIS COMPONENT IS HOUSED IN AN SC-70-3 (SOT-323-3) SURFACE-MOUNT PACKAGE AND IS LEAD (PB)-FREE AND ROHS COMPLIANT. FURTHER SPECIFICATIONS INCLUDE A GATE THRESHOLD VOLTAGE (VGS(TH)) RANGING FROM 0.6V TO 1.2V, A TYPICAL TOTAL GATE CHARGE (QG) OF 0.5 NC, AND A TYPICAL INPUT CAPACITANCE (CISS) OF 25 PF. THE MOSFET PROVIDES INTEGRATED ESD PROTECTION UP TO 1500V AND IS DESIGNED FOR OPERATION WITHIN A JUNCTION TEMPERATURE RANGE OF -55°C TO +150°C.
