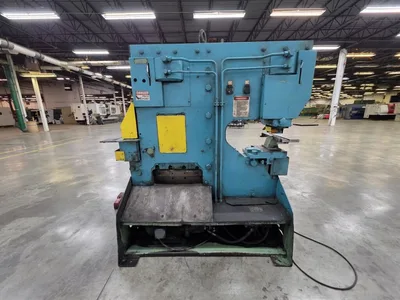

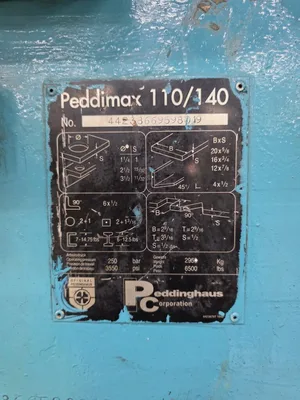

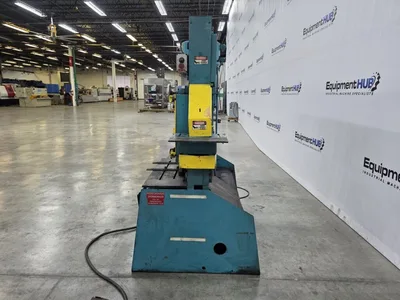

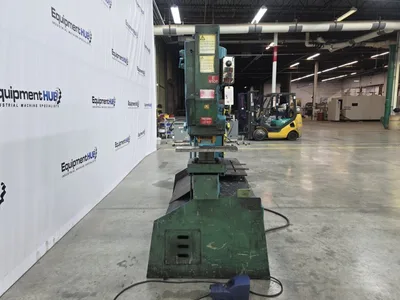

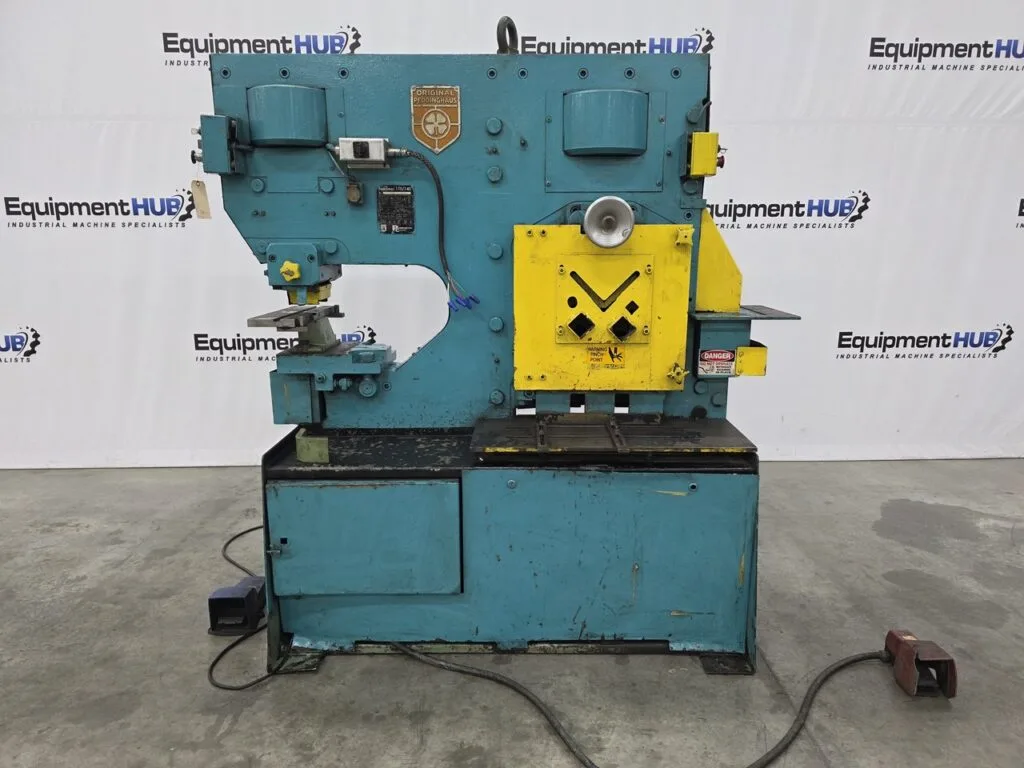

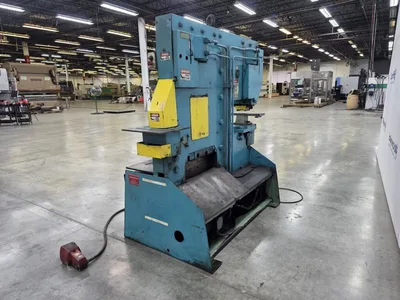

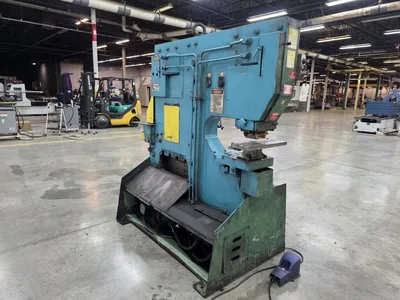

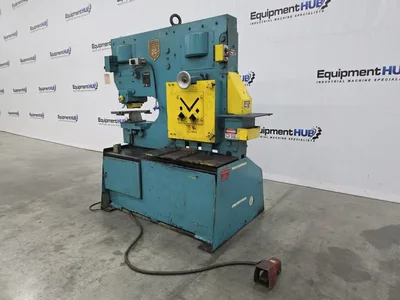

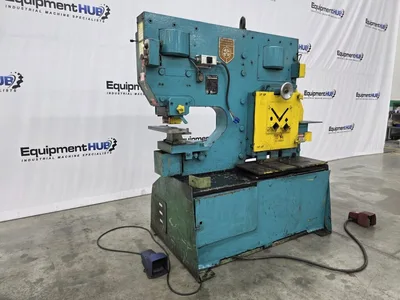

USED PEDDINGHAUS PEDDIMAX 110/140

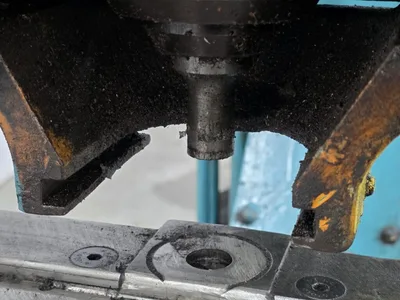

Punch Tonnage: 110 Ton
Shear Tonnage: 140 Ton
Punch Stroke: 3/8" – 2"
Punch Capacity: 1.25" x 1"
Punch Throat Depth: 20"
Punch Strokes Per Minute: 22

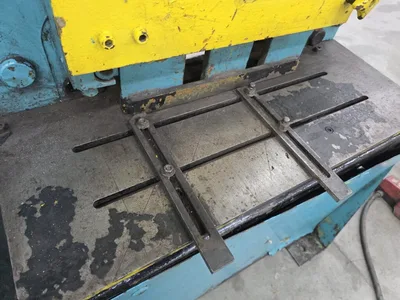

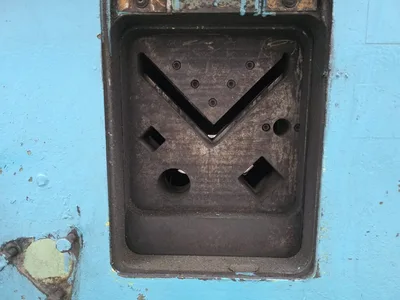

Flat Bar Shear Capacity: 20" x 5/8"; 16" x 3/4"; 12" x 1"
Flat Bar Shear Length: 20-1/4"
Flat Bar Shear Working Height: 28-3/8"
Angle Shear Capacity, 90 Degree: 6" x 6 " x 1/2"
Angle Shear Capacity, 45 Degree: 4" x 4" x 1/2"
Round Bar Capacity: 2" and 1"
Square Bar Capacity: 2" and 1-3/16"

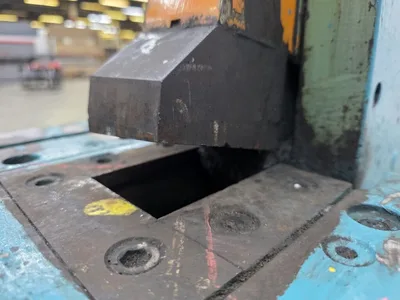

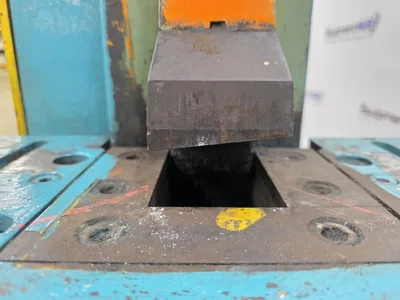

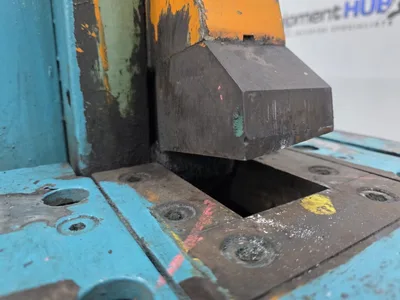

Notcher Capacity, Plate: 1/2" square, 1/2" triangular
Notcher Capacity, Angle: 3" x 3/8" square, 3" x 3/8" triangular
Notch Width: 2-9/16" square
Notch Depth: 3-5/16" square, 2-9/16" triangular
Notch Station Working Height: 45-1/2" to center of blades
I-Beams: 6" H x 12.5 lbs
Flanges: 7" H x 14.75 lbs
Oil Capacity: 28 gallons
Motor: 10 HP (7.5 KW)
Volts: 230 / 460 (Wired at 230)
Max Amperage: 30.8 / 15.4
