USED BUCHI R-114

Equipment Type: Rotary Evaporator / Rotavapor
Configuration: Manual
Condition: Used

Description:

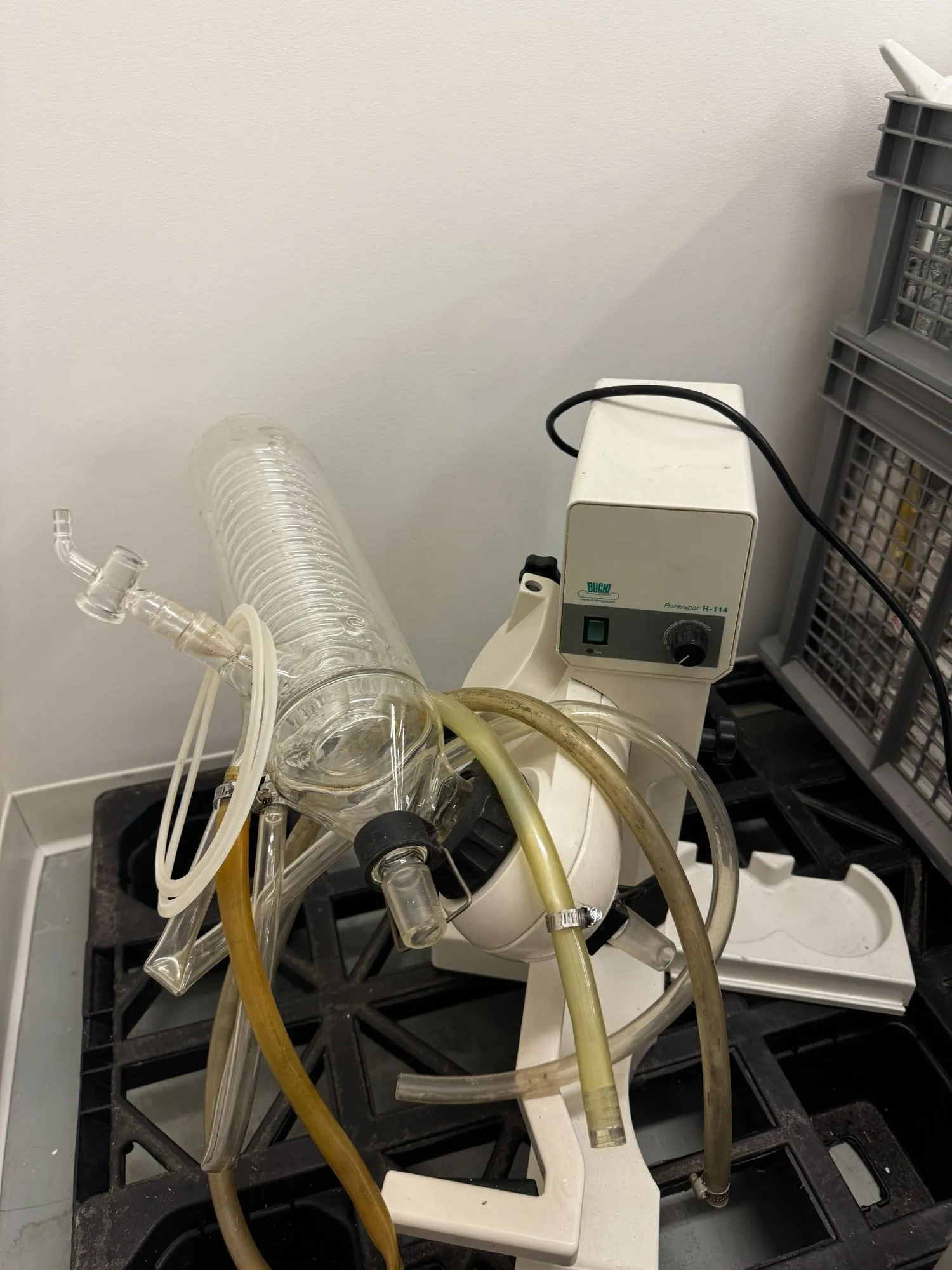

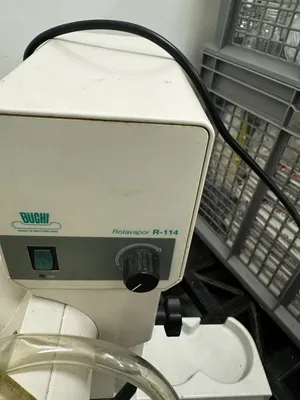

Buchi R-114 Rotavapor rotary evaporator designed for laboratory evaporation, distillation, solvent recovery, concentration, purification, and related applications. The R-114 uses a variable-speed stepping motor and is compatible with several glassware and condenser configurations.

Specifications:

Rotation speed: 5–240 rpm, infinitely variable

Drive: Stepping motor

Heating bath capacity: 5 L

Water bath temperature range: 20–100°C

Oil bath temperature range: 30–180°C, depending on configuration

Display: Digital temperature display

Dimensions: Approximately 40"W x 61"H x 41"D

Weight: Approximately 14–16 kg, depending on glassware

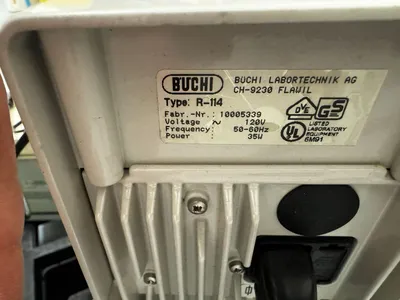

Voltage: 100, 120, 230, or 240 V depending on unit

Frequency: 50/60 Hz

Motor power consumption: Approximately 35 W

Ambient operating temperature: 10–35°C

Overtemperature protection: 140°C for water bath

Available glassware configurations: A, V, C, S, E, and CR

Compatible with various evaporation and collection flask configurations

Features:

Variable-speed rotary drive

Manual quick-lift system

Vacuum operation

Multiple condenser configurations available

Borosilicate glass components

Stainless-steel heating bath

PTFE sealing components

Suitable for solvent evaporation and recovery

Compact laboratory design

Typical Applications:

Solvent evaporation

Distillation

Solvent recovery

Sample concentration

Chemical purification

Recrystallization

Drying applications
