Used

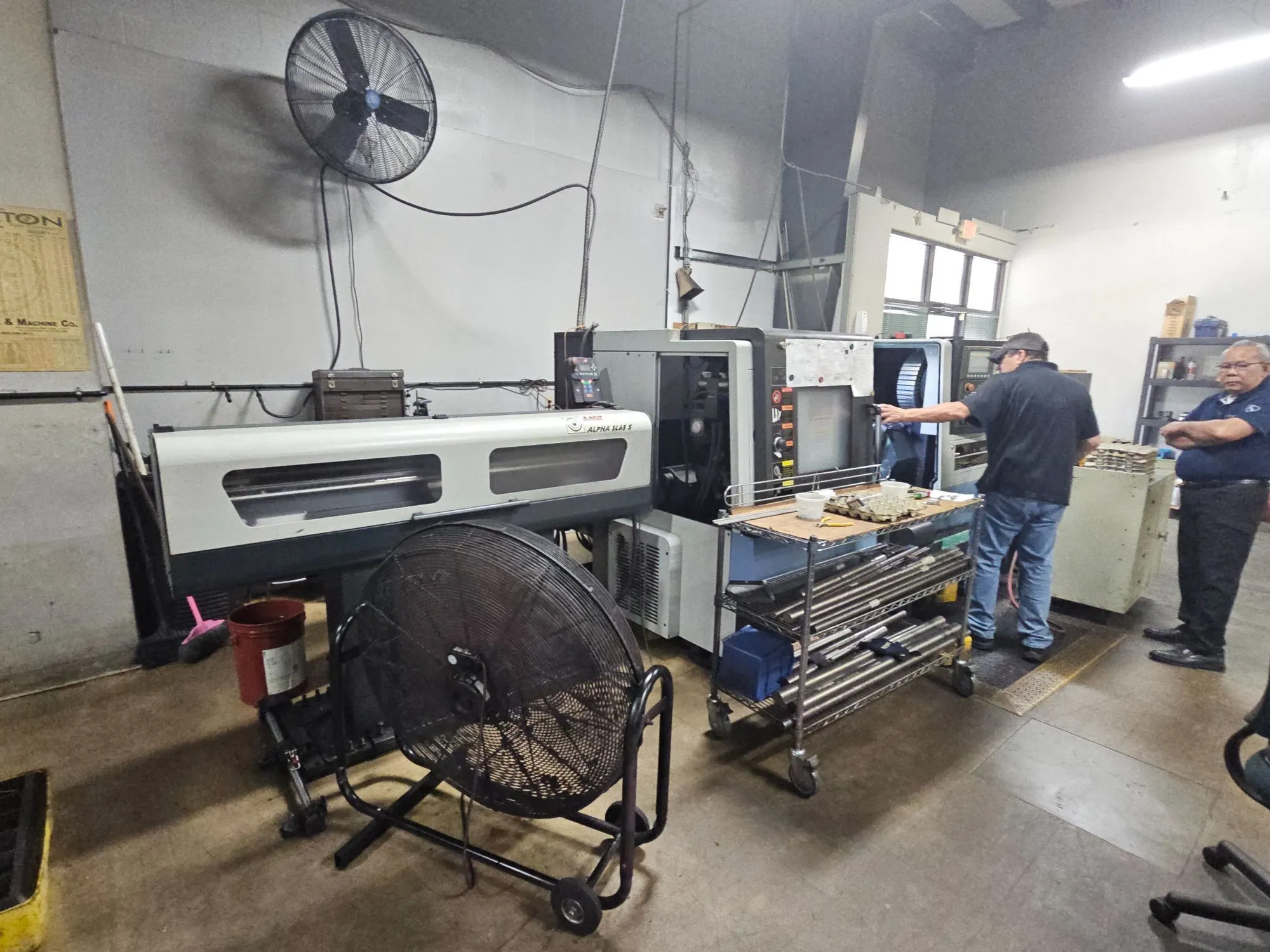

USED 2013 DOOSAN LYNX 220 LMSA
California, United States
Overview
Specs
Swing
23.62"
599.95 mm
Max. Turning Length
20.1"
510.54 mm
Max. Turning Diameter
11.8"
299.72 mm
X-Axis
8.1"
205.74 mm
Z-Axis
21.7"
551.18 mm
B-Axis
21.7"
21.7"
C-Axis
360°
360°
Rapid Traverse X-Axis
1181.1 ipm
Rapid Traverse Z-Axis
1417 ipm
Rapid Traverse B-Axis
1181.1 ipm
# Axis
4
4
Chuck Size
6"
152.4 mm
Bar Capacity
2"
50.8 mm
Spindle Bore
2.4 in
Spindle Nose
A2-5
A2-5
Power
20 hp
14.9 kW
Max RPM
6,000 RPM
6,000 RPM
Turret Stations
12
12
Tailstock
No
No
Live Tooling
Yes
Yes
Sub Spindle
Yes
Yes
Sub Spindle Power
7.5 hp
Sub Spindle Max RPM
6000 rpm
Sub Spindle Bar Capacity
1.3 in
Dimensions
108.8" x 64.1" x 65.2"
108.8" x 64.1" x 65.2"
Weight
7,716.1 Lbs
7,716.1 Lbs
Equipped With
Fanuc i CNC Control
LNS Alpha SL56S Bar Feeder
LNS Turbo HB Chip Conveyor
Long Bed
Sub Spindle
