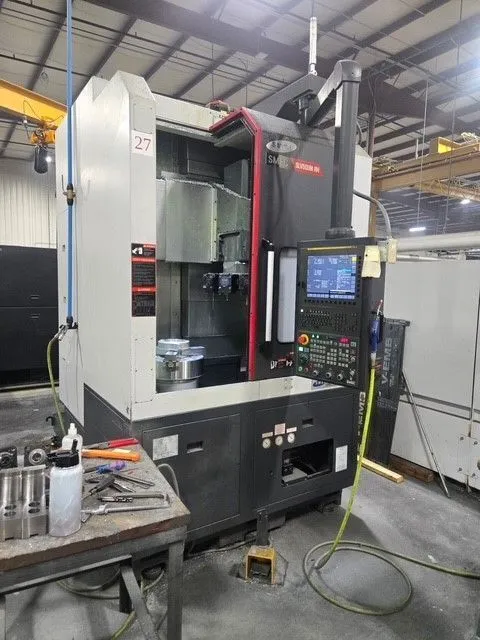

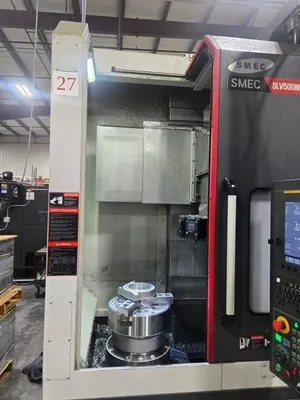

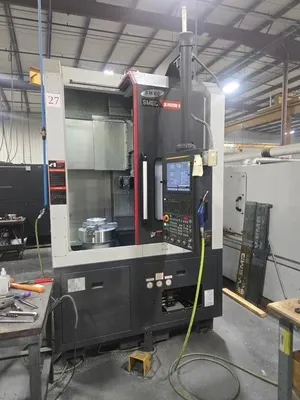

USED 2023 SMEC SLV 500MR

CAPACITY
Swing over the bed 27.56”
Swing over the cross slide (with tailstock) 15.75” (14.17”)
Maximum turning diameter 19.68”
Maximum turning length 18.31”

SPINDLE

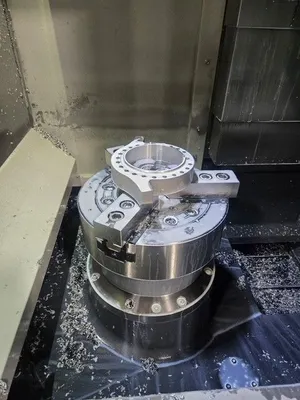

Chuck size 12” (15” & 18” – Opt.)
Spindle nose A2-8 (ASA)
Main spindle motor (S3 25% / S3 / Cont.) 34.8 / 29.5 / 24.8 hp
Spindle speed 3,000 rpm (2,000 – Opt.)
Spindle bearing diameter (front) 5.12"
Spindle torque (S3 25%) 775.2 ft.-lbs.
C axis minimum programmable angle 0.001 deg
C axis position accuracy 0.015 deg
C-axis repeatability +0.0056 deg

SLIDE & CARRIAGE
X Axis travel 12.40”
Z Axis travel 19.49”
Rapid traverse (X / Z) 787 ipm / 787ipm
Guide ways (X / Z) Box way
Repeatability (X / Z) ±0.0002” / ±0.0004”

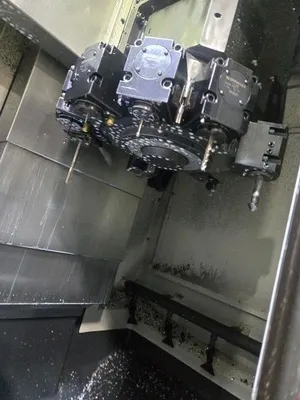

TURRET
Number of tool stations 12 Tools servo (BMT65)
Turret indexing speed 1 station 0.2 seconds
Curvic coupling 3 Piece hydraulic clamp / Servo index
Coupling clamp force 9,965 lbs.
Tool size (turning and facing) 1” – Wedge clamp
Tool size (boring bar maximum diameter) 2”
Rotary tool speed 5,000 rpm
Rotary tool spindle motor (Max / Cont.) 7.4 / 5 hp
Rotary tool spindle torque 25.8 ft-lbs.
Turret Index repeatability ±0.005”

MACHINE SIZE
Floor space requirements (L x W x H) without CC 65.7” x 79.72” x 117.6”
Machine weight 15,873 lbs.
Power consumption 45 kVA
Voltage 220V±10%, 60 Hz, 3 phase
CNC

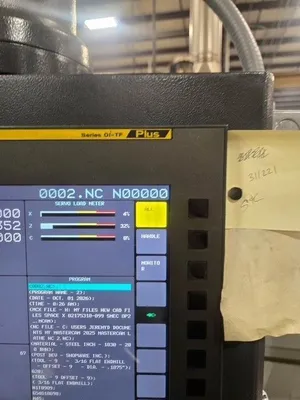

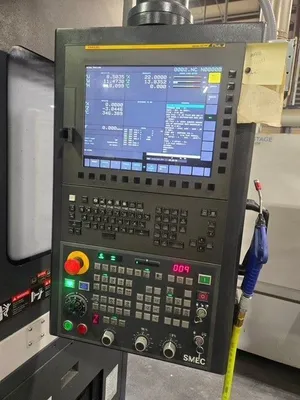

CNC model Fanuc 0i-TF PLUS
Display unit 15” TFT LCD Color Monitor
