USED 2005 HAAS VF-3B
Overview

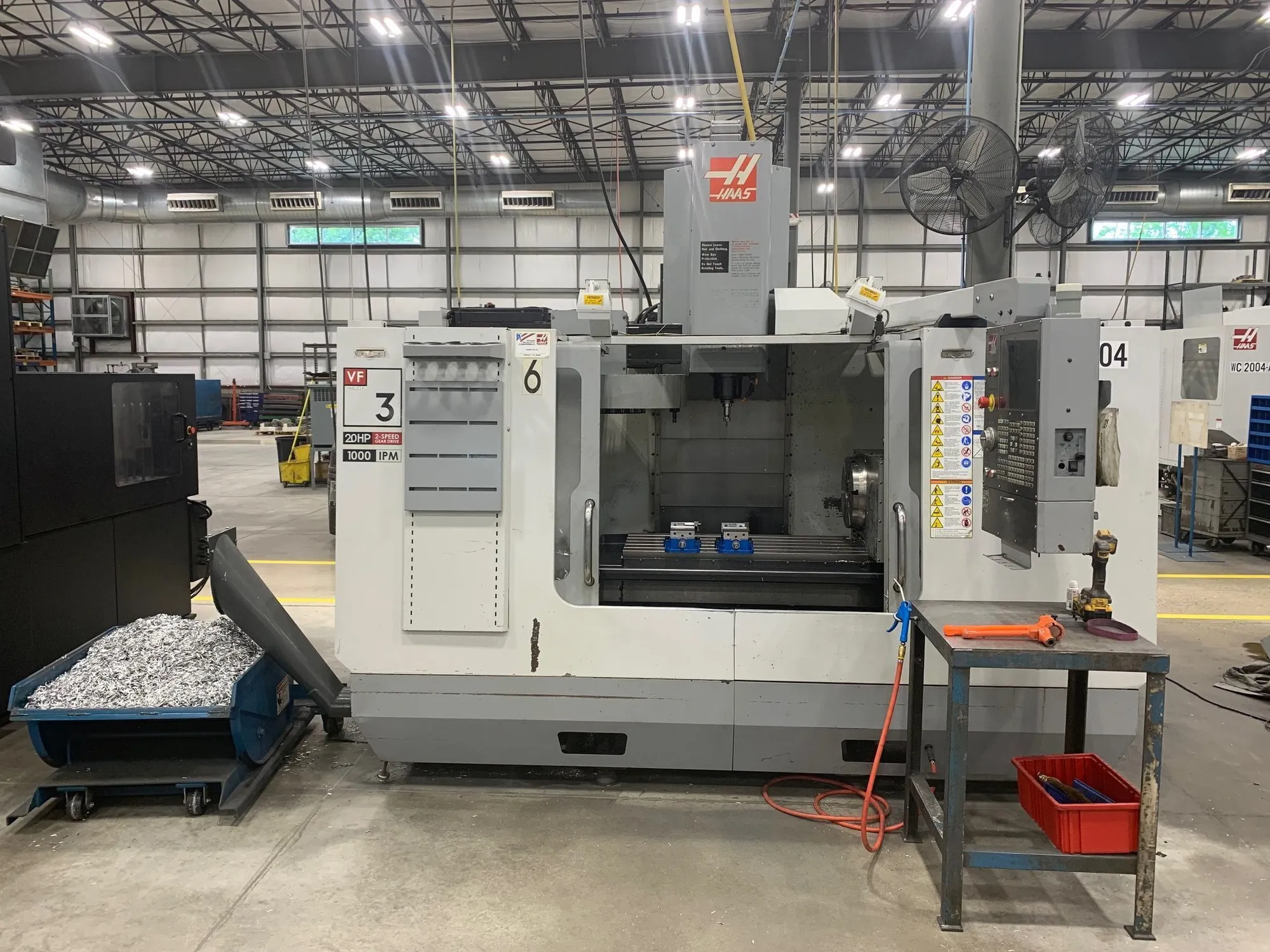

HAAS VF-3B Vertical Machining Center, 2007 model in used condition. Features 40x20x25 in. travel, 20 HP power, 7500 RPM, CAT-40 taper, 24-tool ATC, 18x48 in. table. Ideal for complex machining tasks.
Specs
X Axis Travel: 40"
Y Axis Travel: 26"
Z Axis Travel: 25"
Rapid Rate X Axis: 710 IPM
Rapid Rate Y Axis: 710 IPM
Rapid Rate Z Axis: 710 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 24 ATC
Max Cutting: 500 ipm
Max Thrust: 4,100 lbf
Max Tool Diameter: 2.5"
Max Tool Diameter: 5"
Max Tool Length: 13"
Max Tool Weight: 12 lb
Tool-to-Tool: 2.8 s
Chip-to-Chip: 3.6 s
Coolant Capacity: 55 Gal
Weight: 15,600 LBS
Haas installed a new 12,000 RPM spindle, spindle motor and TRP upgrade kit for $20,032.30. We also replaced the Humphry Valves as well as LED light upgrade, etc.
Equipped With
Probe
Brand New Spindle 12k RPM
Brand New Spindle Motor
TRP upgrade kit
Humphry Valves
LED light upgrade
