USED VICTOR 1640B
Overview

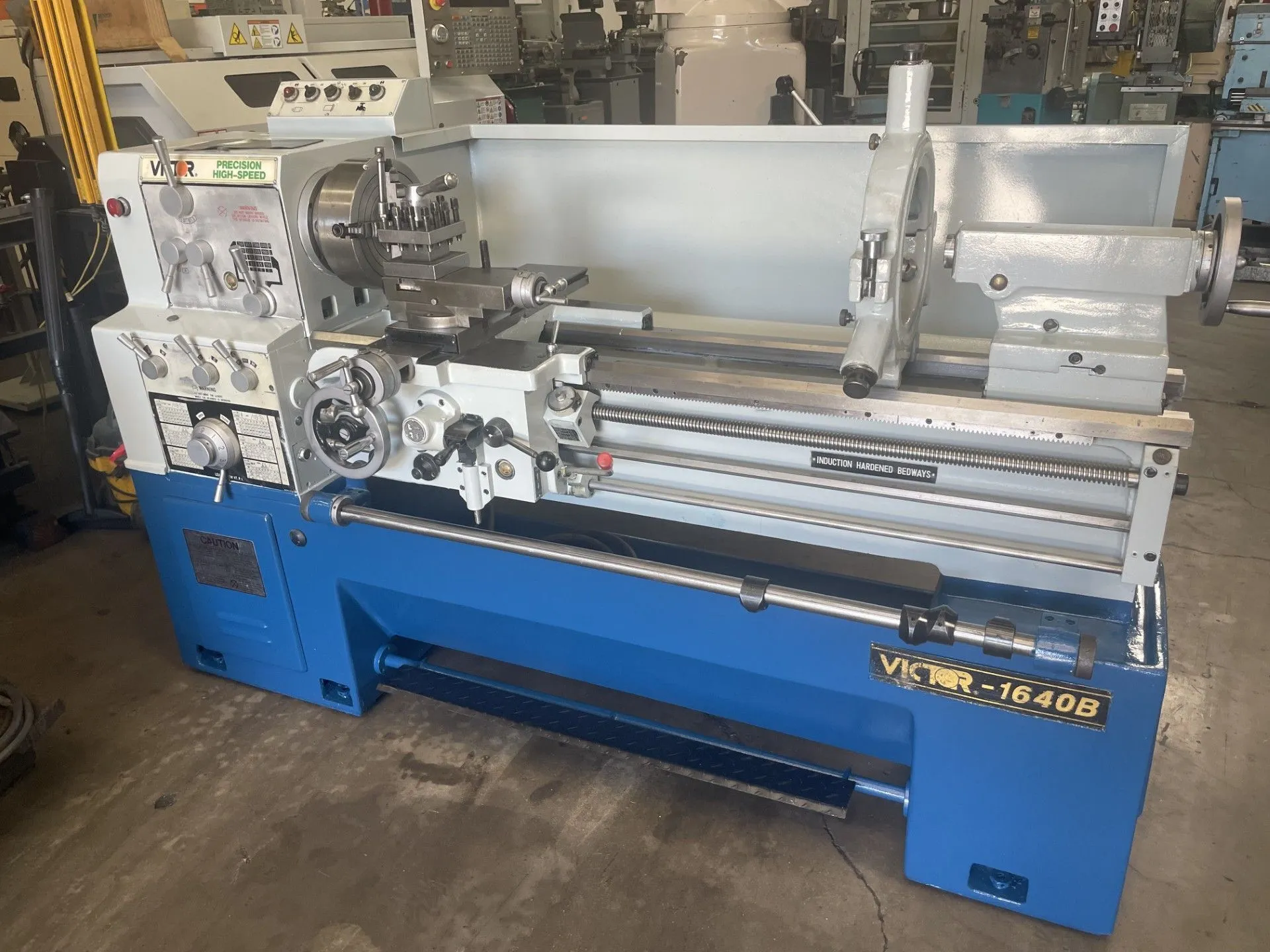

VICTOR 1640B Engine Lathe available, featuring 16" swing, 40" centers, 2" spindle bore, and 7.5 hp power. Max RPM of 2000. Well-suited for various machining needs. Used condition, ideal for shops seeking reliable lathes.
Specs
VICTOR 1640B Engine Lathe #8409 #1
SPECIFICATIONS:
Swing: 16-1/8″
Swing Over Cross Slide: 10-1/4″
Swing Over Gap: 23″
Distance Between Centers: 40″
Bed Width: 11″
Spindle Bore: 2-1/32″
Spindle Nose: D1-6
Spindle Speeds (16): 33 – 2000
Number of Longitudinal Feeds: 36
Range of Longitudinal Feeds (in./rev.): 0.0033 – 0.0455
Number of Cross Feeds: 36
Range of Cross Feeds (in./rev.): 0.0028 – 0.0387
Number of Inch Threads: 36
Range of Inch Threads (TPI): 4 – 56
Number of Metric Threads: 22
Range of Metric Threads (mm): 0.5 – 7
Motor HP: 7.5
Electrical: 220/440V(Wired 220)/3PH
