USED 2020 HAAS VF-4SS
Overview

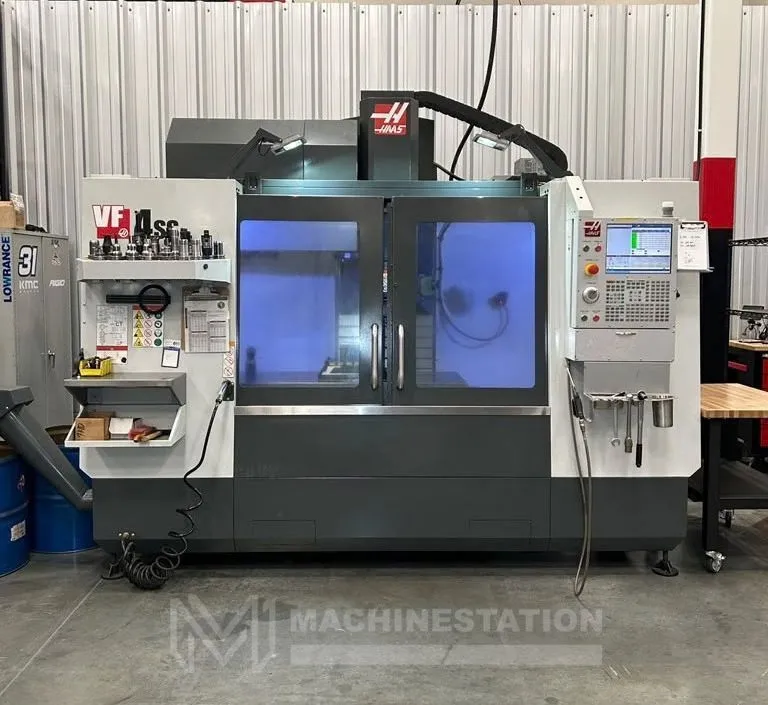

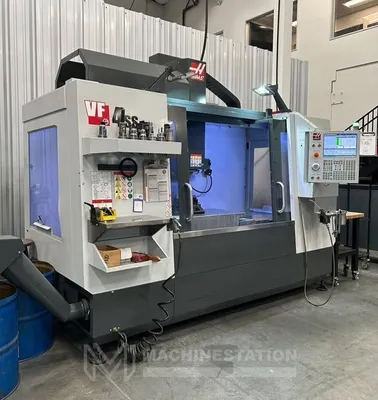

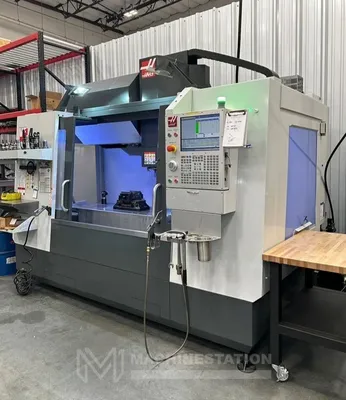

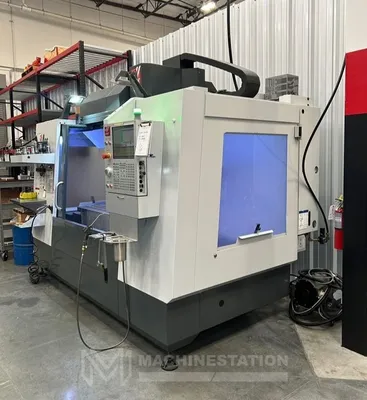

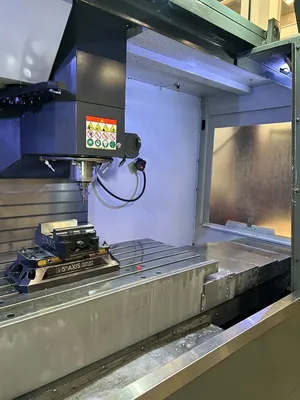

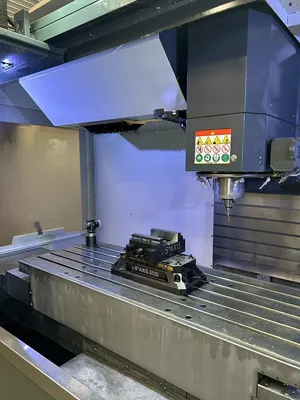

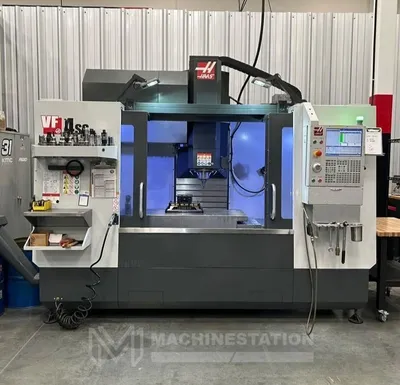

2020 Haas VF-4SS CNC Vertical Machining Center. Features WIPS, HSM, 4th Axis Drive and Rotary Table, 12,000 RPM spindle, and 30-Tool Changer. Ideal for multi-sided machining. High-intensity lighting and chip auger included.
"Replacement Cost Over $148,000 with Similar Options"
Specs
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Replacement Cost Over $148,000 with Similar Options

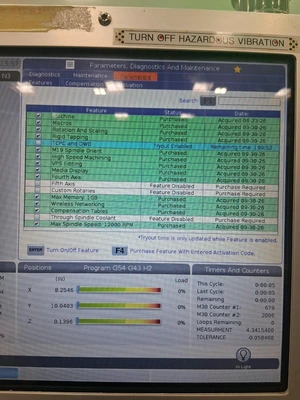

Features:

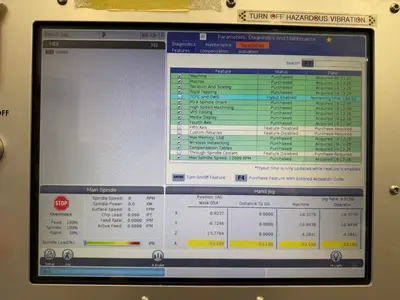

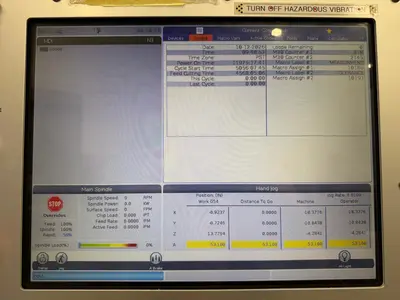

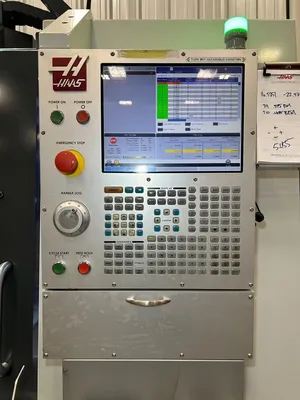

Haas CNC Control
12000 RPM Inline Direct Drive Spindle
1400 IPM Fast Rapid
User-Definable Macros
Coordinate Rotation and Scaling
Spindle Orientation
Rigid Tapping
VPS Editing
Media Display
1GB Max Memory
Wireless Networking
Compensation Tables
Coolant Tank

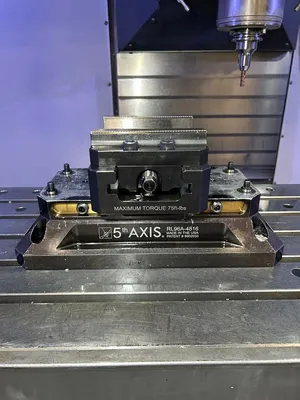

Note: Tool Holders & Vice are Not Included with the Machine
Travels:
X-Axis: 50.0 inch
Y-Axis: 20.0 inch
Z-Axis: 25.0 inch
Rapid Traverse Rates Axis: 1400 IPM
Cutting Feed Rates: 833 IPM
Spindle Nose to Table (Min.- Max.): 4.2 inch – 29.2 inch

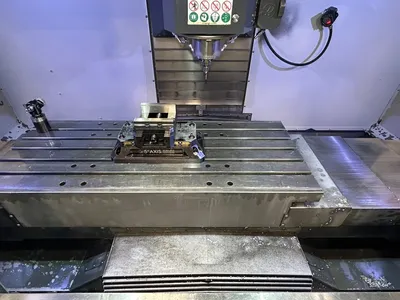

Table
Length: 52.0 inch
Width: 19.5 inch
Max Weight on Table: 1750 lbs

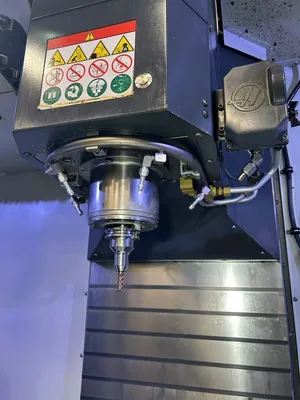

Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5 inch – 5.0 inch
Max Tool Length: 13.0 inch
Tool Changing Time : 1.8 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 131 inch x 102 inch x 109 inch High
Weight: 13,500 lbs
Equipped With
4th Axis Drive and Wiring (Upgraded $3,795 value Included) – Allows The Use of a 4th-Axis Haas Rotary Table For Multi-Sided Machining

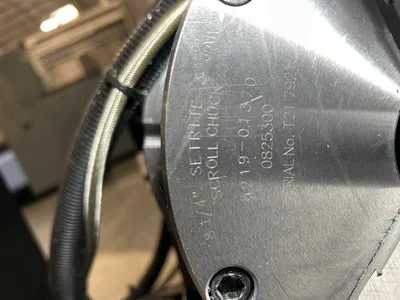

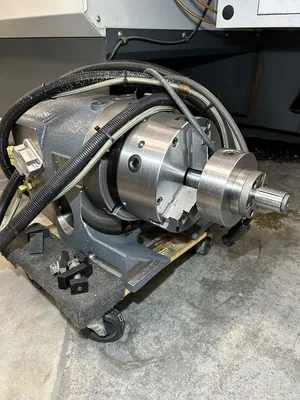

Haas 4th Axis Rotary Table with 8-1/4″ 3-Jaw Chuck (Upgraded $17,495 Approx. value Included) – 4th-Axis Haas Rotary Table For Multi-Sided Machining

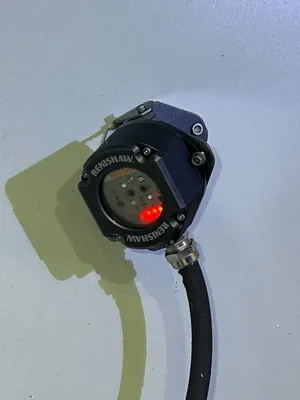

WIPS-R Renishaw Probing System (Probe Included) (Upgraded $6,795 value Included) – Reduced Scrap Rates, Minimized Downtime

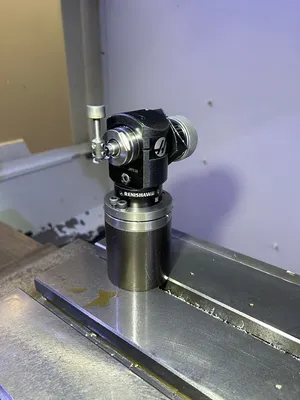

Probe Riser Block (Upgraded $795 value Included) – Provides Additional Height For The Tool Probe
30 Station Super Speed Side Mount Tool changer

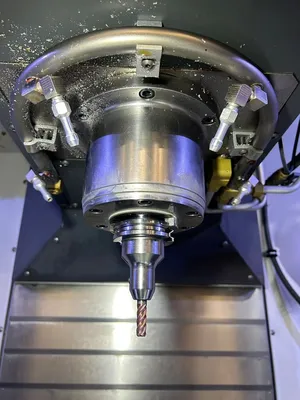

Programmable Coolant Nozzle (Upgraded $2595 value Included) – Automatically Directs Coolant Precisely At The Cutting Tool
High Speed Machining (Upgraded $3995 value Included) – Allows Faster Feedrates and More Complex Toolpaths

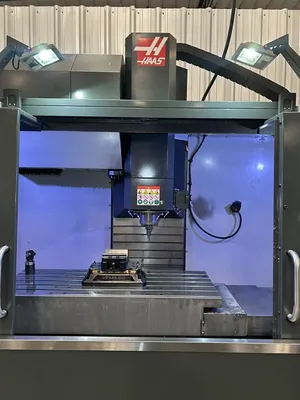

High-Intensity Lighting (Upgraded $1395 value Included)

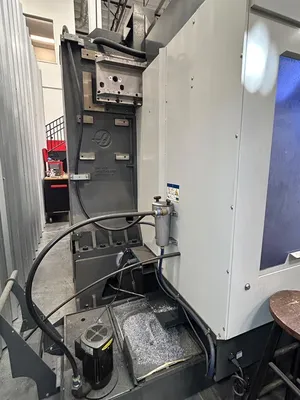

Chip Auger (Upgraded $4295 value Included) – Automatically Removes Chips From The Machine
