USED 2018 FREIGHTLINER 114SD

Florida, United States
Asking Price
USD $198,995.00
1 available
150Listings|2Followers
Overview
Bucket (boom) trucks

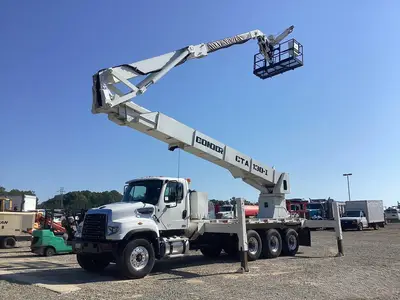

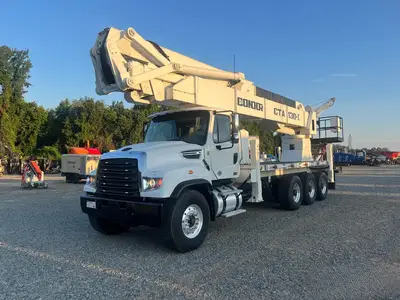

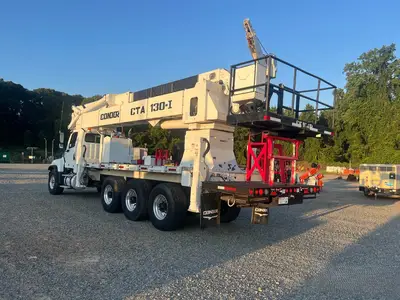

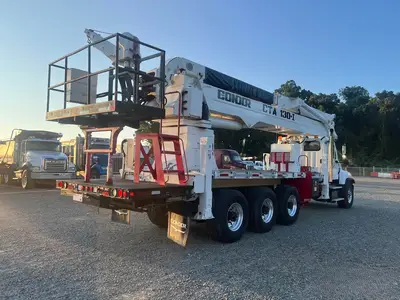

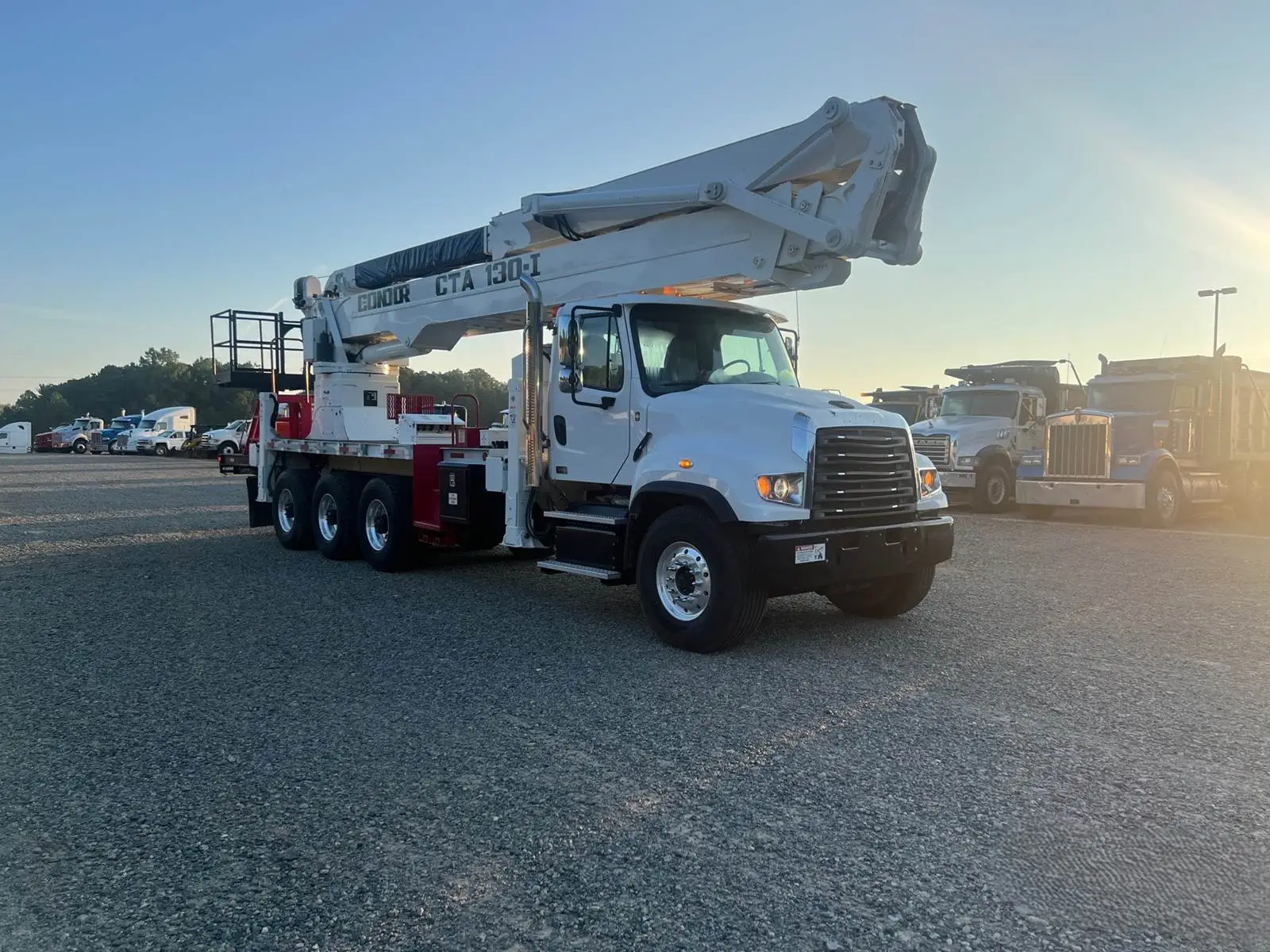

FOR SALE: 2018 FREIGHTLINER 114SD – VERSALIFT CONDOR CTA-130-I 129' INSULATED BUCKET TRUCK
The 2018 Freightliner 114SD equipped with a Versalift Condor CTA-130-I is a specialized high-reach aerial truck designed for utility companies, electrical contractors, transmission and distribution crews, and other organizations requiring exceptional working height and heavy-duty aerial capability. The combination of Freightliner’s severe-duty chassis and the Condor aerial system creates a purpose-built platform for demanding overhead infrastructure work.
The Versalift Condor features an articulating and telescopic boom that provides excellent positioning flexibility when accessing transmission structures, utility poles, substations, and other elevated work areas. Its insulated design makes the unit particularly suited for electrical utility applications, while the two-person platform provides additional flexibility for crews performing complex work at height. Continuous rotation allows operators to reposition efficiently around the work area without repeatedly moving the truck.
Material-handling capability further expands the versatility of this unit. An extendable jib allows crews to lift and position equipment and materials directly from the aerial platform, making the truck useful for applications where personnel and components must be elevated simultaneously. Multi-function joystick upper controls provide the operator with convenient control of the aerial system from the platform.
The truck is built around a heavy-duty Freightliner 114SD chassis with a Dakota aluminum flatbed body and is equipped for demanding field operations. Features such as multiple differential locks, a turret-mounted winch, backup hydraulic capability, and heavy-duty drivetrain components make it particularly well suited for utility work in challenging environments and remote locations.
This unit has only 19,694 miles and 2,511 hours, along with a clean Carfax, presenting an exceptional opportunity for utility contractors or fleet operators looking for a low-use, high-reach insulated aerial truck already configured for specialized transmission and electrical work. SPEC SHEET - JK9127
VIN: 3ALPG3DV0JDJK9127

Specs

Year: 2018
Type: Boom & Bucket Trucks
Manufacturer: Freightliner
Model: 114SD
Trim: Versalift 129' Boom
Condition: Used
Stock Number: JK9127
VIN: 3ALPG3DV0JDJK9127

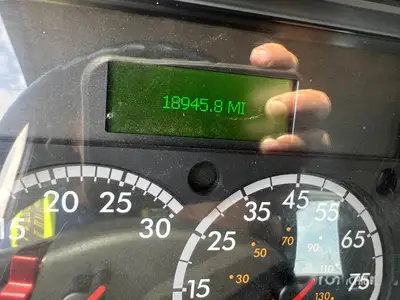

Usage: 19,694 Miles
Usage: 2,511 Hours
Quantity: 1
Length: 19 ft.
Width: 102 in.
Weight Class: Class 8
Duty Class: Heavy Duty
Gross Vehicle Weight: 89000 lbs.
Horse Power: 410 HP
Engine Manufacturer: Detroit
Engine Type: DD13
Engine Brake: Yes
Engine Displacement: 6 CYL
Engine Size: 12.8
Fuel Type: Diesel
Fuel Capacity: 80.0 gal
Turbo: Yes
Transmission: 6 Speed
Transmission Make: Allison
Differential Lock: Yes
Body Style: Regular Cab
Exterior Color: White
Suspension: AirLiner
Suspension Make: Freightliner
Number of Rear Axles: Tri
Front Axle Weight: 20000 lbs.
Rear Axle Weight: 69000 lbs.
Rear Axle Make: Freightliner
Wheel Base: 262.0 in.
Wheel Type: All Aluminum
Drive Side Type: Left Hand Drive
Interior Color: Gray
Air Conditioning: Yes
Cruise Control: Yes
Power Locks: Yes
Power Windows: Yes
Upfit Type: Aerial Lift
Upfit Manufacturer: Versalift
Upfit Model: CTA-130-I
Winch: Yes
Outriggers: Yes
Insulated: Yes
Lift Height: 124
Lift Capacity in Lbs: 2200
Platform Capacity: 2-Man (Articulating and Telescopic, Material Handling Jib End Mounted)
Control: Multi-funtion Joystick
Rotation: 360° continous
Platform Tilt: Yes
Body Composition: Dakota 230FB Aluminum
Drive Axle Type: Meritor and Dual Stearing Box
Winch Type: Turret
Back up Pump: Yes, 12V
Material Handling Capacity: 1,500 lbs
