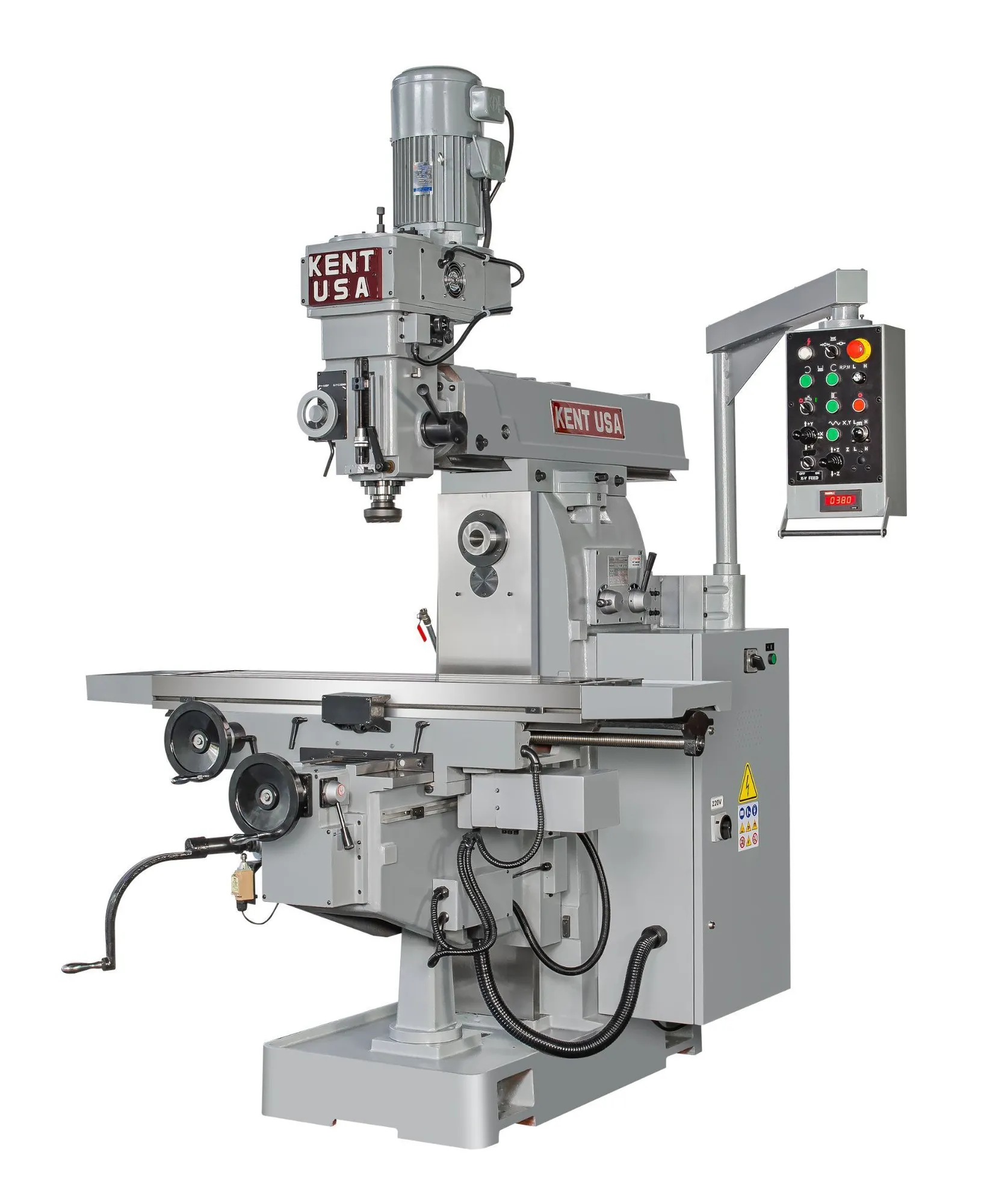

NEW KENT USA KTM-VH300EVS
Overview
Kent USA Combo Horizontal/Vertical Mills offer both the capabilities of a Vertical Mill and a Horizontal Mill in one design. Changing the setup from one operation to the other is quick and simple. These mills are equipped with hard-chromed dovetail ways or hardened and ground box ways for superior wear resistance and separate motors drive the vertical spindle and horizontal spindle. Kent USA Combo H/V Mills offer both knee and bed type variants. Table sizes range from 12″ x 51″ to 27.6″ x 102.4″ while table travels range from 39.4″ x 14″ x 17.7″ to 78.7″ x 41.3″ x 39.4″.
Specs
Table size 11.8” x 50”(300x1270mm)
T slot(Width x No. x Pitch) 0.63”x 3 x 3.15”(16 x 3 x 80mm)
Table travel (X-axis) 39.4”(930mm)
Saddle travel (Y-axis) 15.75” (400mm)
Knee travel (Z-axis) 17.72” (450mm)
Quill travel 5.5” (140mm)
Head rotation (Right and Left) +/- 45 deg.
Ram travel 16.53”(420mm)
Vertical Spindle motor 5 HP (4P)
Vertical Spindle speed Vertical 60-3600 RPM (Inverter)
Vertical Spindle taper NT-40
Vertical Spindle Quill diameter 4.33”(110mm)
Vertical Spindle Quill feed rate 0.035/0.07/0.14 mm per rev
Horizontal Spindle motor 5HP
Horizontal Spindle speed 60-1440 rpm(9 step)
Horizontal Spindle taper NT-40
X travel feed rate 22-384mm/min(6 STEP)
X travel rapid feed rate 1250 mm/min
Y travel feed rate 50-2200mm/min(vari)
Z travel feed rate 430 mm/min
Machine Net weight 5,401 lbs(2,550KGS)
Machine Dimension: 68.5" x 63.5" x 79"(1740x1614x2007mm)
Power Requirements: 220 volts, 3 phase, 60 Hz, 25 Amp
(optional 440v requires 12 Amp)
Equipped With
Standard Accessories
Coolant System
X, Y Axes Servo Motor
X, Y Axes Ball Screw
Vertical Head Auto Lubrication Pump
Slideway Auto Lubrication Pump
Y-Axis Inverter Movement with Ball Screw
Optional Accessories
X-Axis Ball Screw with Inverter Movement
Vertical Head Attachment
Turret Head Inverter Motor with Controller
Air Power Drawbar
Table Size Opt. 57.9″ x 14.6″
