USED CINCINNATI BICKFORD 4' X 9" COLUMN
Specs

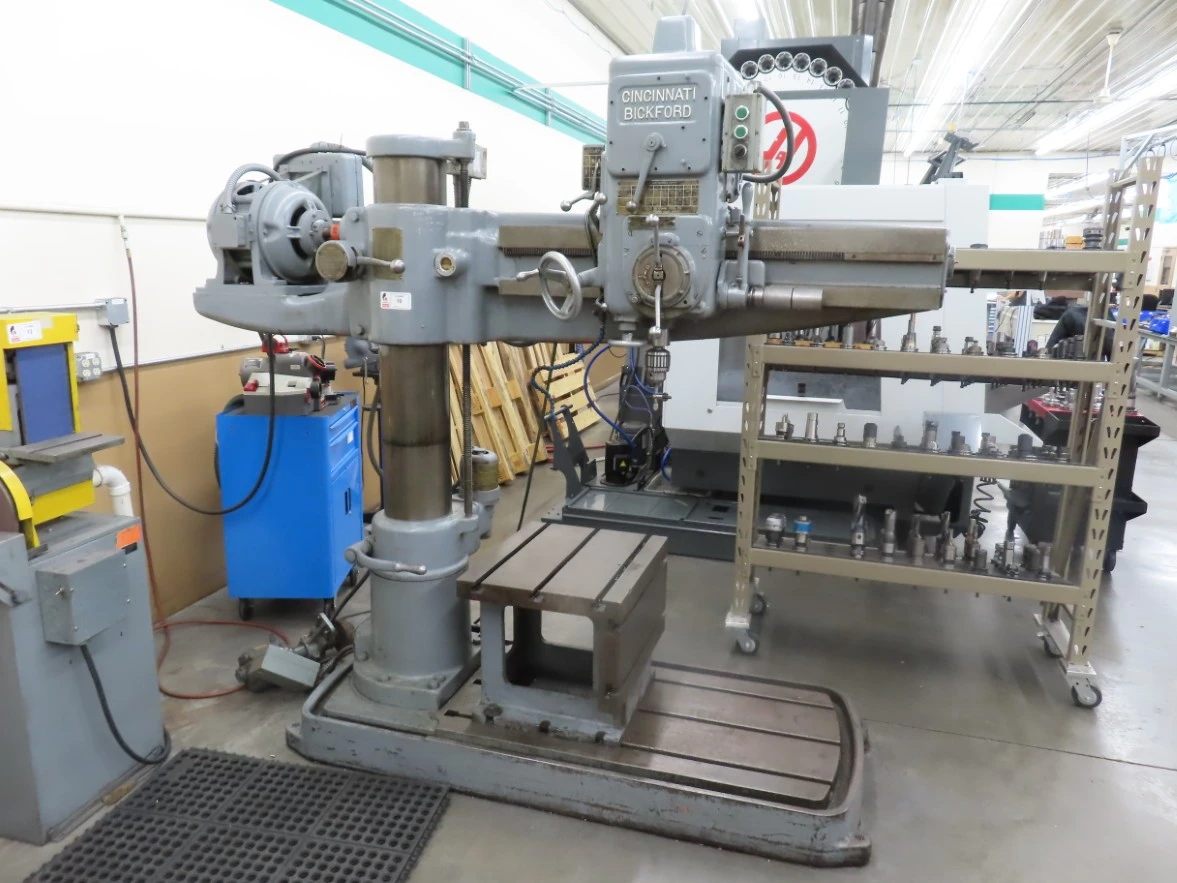

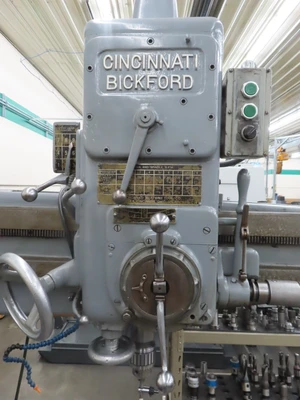

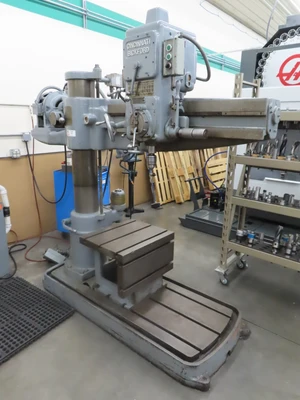

Lot 10: Cincinnati Bickford 4' x 9" Radial Arm Drill, Box Table, Power Elevation, Power Quill Feed, Coolant
Electrics:
230 Volt, 3 Phase
Main Unit Approx Weight: 4500.00 lbs
Main Unit Dimensions (in inches): Length: 91.00" Width: 34.00" Height: 82.00"
Specs:

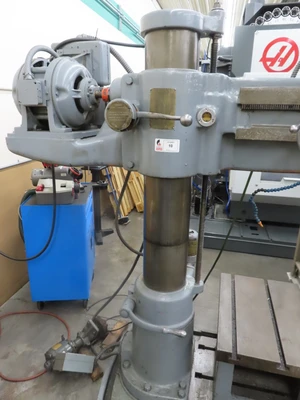

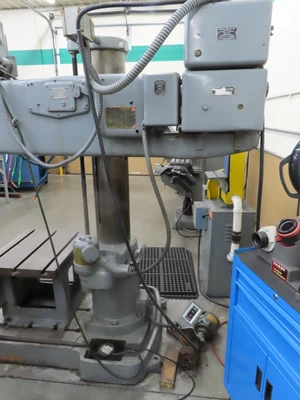

Column Diameter: 9"

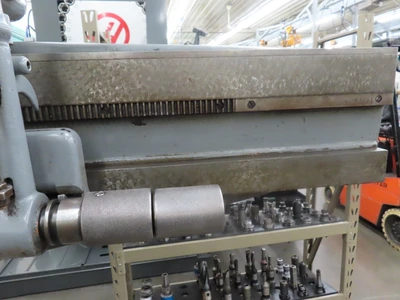

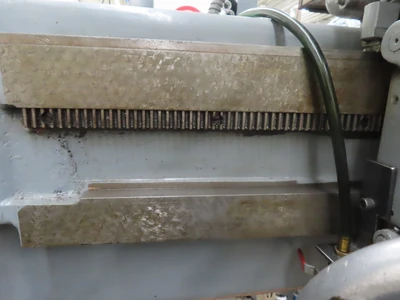

Arm Length: 48"
Max Spindle Center to Column: 48"
Spindle Feed Rates: (4) .004, .008, .014, .020 IPR

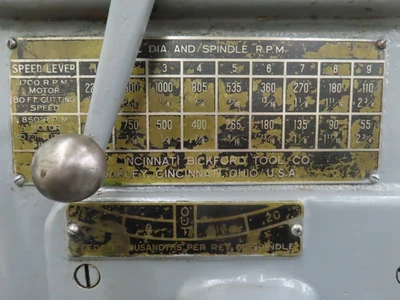

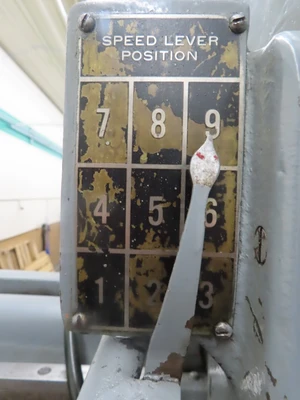

Spindle Speeds: (9) 55-1,125 RPM at 850 RPM Motor & (9) 110-2,250 RPM at 1700 RPM Motor
Spindle Taper: #4MT
Clamping Style: Manual
Base Dimensions: 30" x 53" Work Surface
Spindle Drive: 3 HP

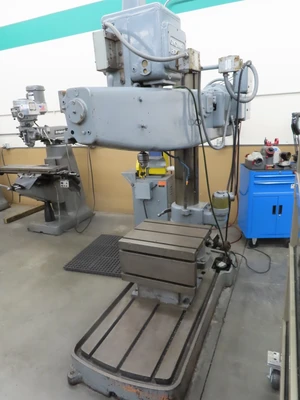

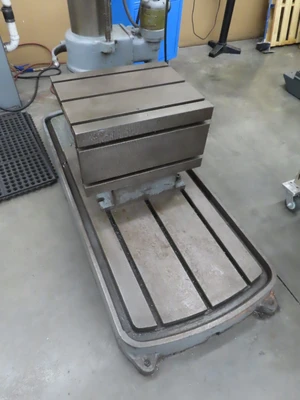

Box Table Dimensions: 20" x 24" 24" High
Min Spindle to Column: 9.5"

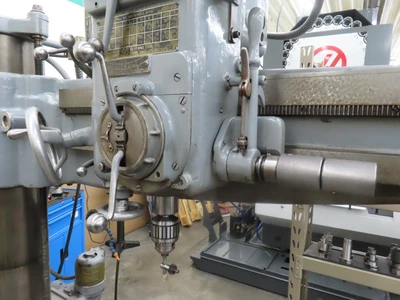

Quilll Travel: 10" Powered or Hand
Max Spndle to Base: 53"
Min Spindle To Base: 15.75"
Seller Company: Paradigme Engineering - A Velosity Company
Seller Contact: Machinesused.com Phone: (763) 745-1166
Location Contact: Machinesused.com Phone: (763) 745-1166
Inspection Date & Time: Friday, October 23, 2026 9AM-4PM
Dock Door: 12' x 12' Ground Level Door
Loading Dock: 8' x 8' Loading Dock
Removal Dates and Times: This item must be removed between Monday, November 2, 2026 and Thursday, November 5, 2026
Equipped With

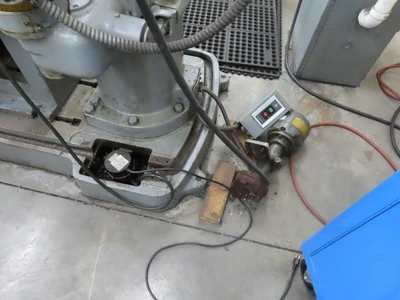

Universal Box Table, Power Elevation, Manual Clamping and Power Quill Feed, Coolant in Base
