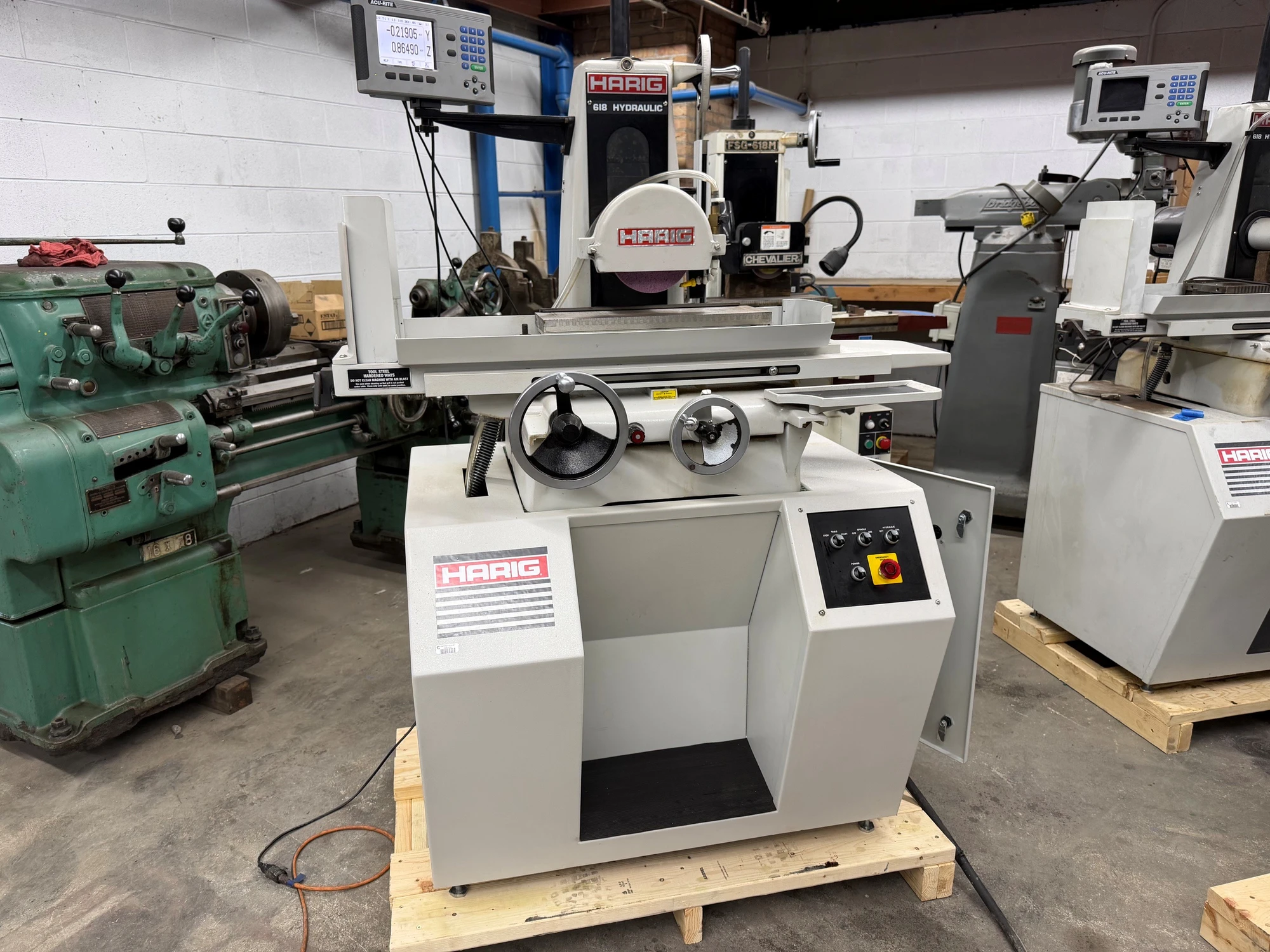

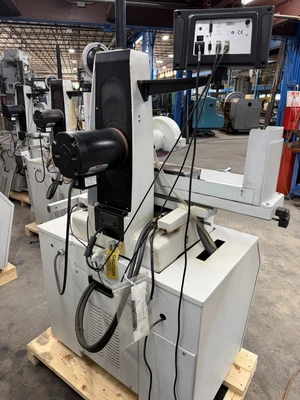

USED Harig HYDRAULIC, 2004, FROM A SCHOOL, HYD. POWER TABLE,

     6" X 18" HARIG (MADE IN U.S.A.)

      SINGLE AXIS - HYDRAULIC TABLE

       "PRECISION" SURFACE GRINDER

**  FROM A SCHOOL - LIKE NEW CONDITION **

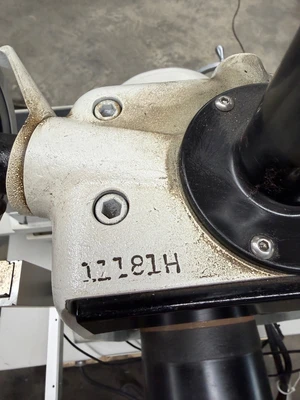

MODEL: 618 HYDRAULIC    S/N: 11181-H

             NEW:  2004

SPECIFICATIONS:

WIDTH & LENGTH GROUND ................ 6" X 18"

LONGITUDINAL TRAVEL .................. 18- 3/4"

CROSS TRAVEL ......................... 6- 3/4"

LONGITUDINAL TABLE SPEED ............. 0 TO 70' FPM

WORKING HEIGHT UNDER THE WHEEL........ 11- 3/4"

GRINDING WHEEL DIMENSIONS (DxWxB)..... 7" x 1/2" x 1-1/4"

VERTICAL HAND WHEEL, GRADUATION ...... 0.0005"

CROSSFEED HANDWHEEL, GRADUATION ...... 0.001"

FLOOR AREA OPERATING SPACE............ 71" X 45"

APPROXIMATE WEIGHT.................... 1,500 LBS

MACHINE FEATURES:

- HYDRAULIC TABLE TRAVERSE

- HARIG "FLO-CLEAN" AUTO LUBRICATION SYSTEM

- 1.5 HP 3/60/208-230-460 VOLT SUPER-PRECISION DIRECT DRIVE

  CARTRIDGE TYPE SPINDLE

EQUIPPED WITH:

- 6" X 18" O.S. WALKER "CERAMAX" FINE-DIVISION PERMANENT MAGNETIC CHUCK

- COOLANT SYSTEM, COMPLETE WITH GUARDING, TANK & PUMP

- WORK LIGHT

- PRESENTLY WIRED FOR 3/60/220 VOLTS

** "LIKE NEW" CONDITION & APPEARANCE - FROM A SCHOOL **

**  INSPECT UNDER POWER IN ILLINOIS (CHICAGO SUBURB)**

FOR MORE INFORMATION: Call Andy at 973-497-7600
