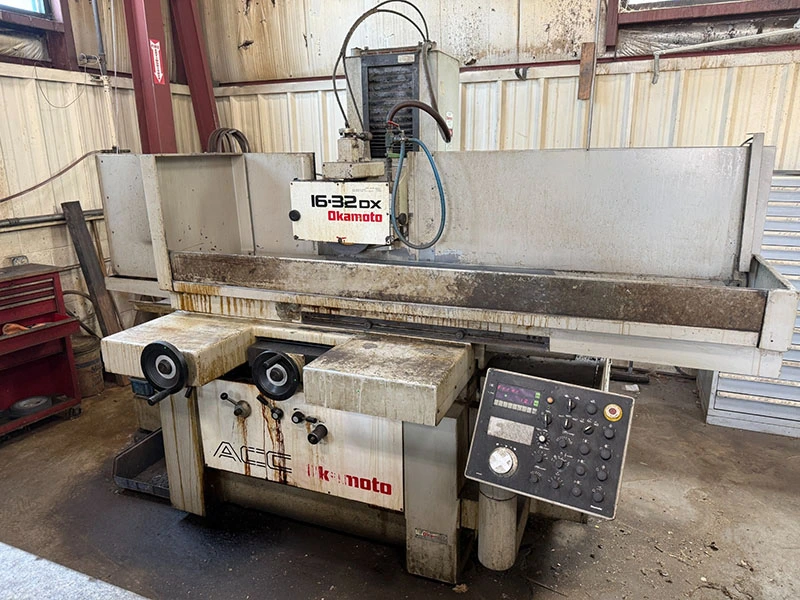

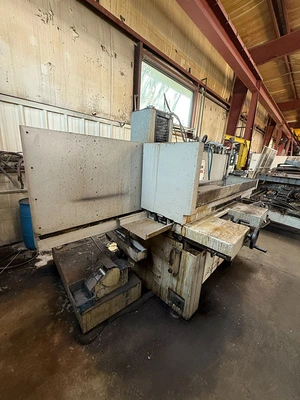

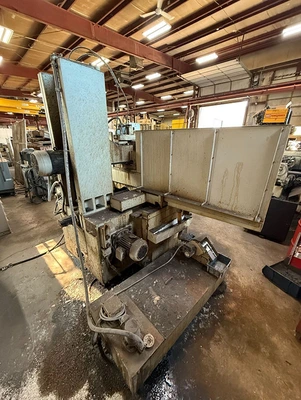

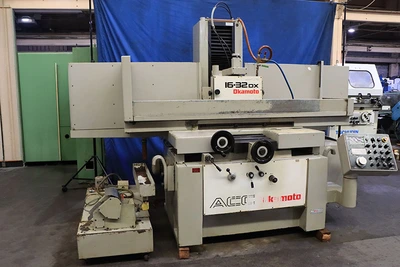

USED 2002 Okamoto ACC-1632-DX, 2002, PROG. AUTO IDF, 3X AUTO FEEDS

        16" X 32" OKAMOTO "HIGH-PRECISION"

     3-AXIS AUTOMATIC FEEDS SURFACE GRINDER

 ** "DX" PROGRAMMABLE AUTO INCREMENTAL DOWNFEED **

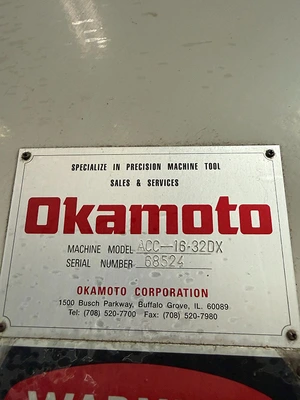

MODEL: ACC-1632DX      S/N: 68524      NEW: 2002

NOMINAL GRINDING CAPACITY .................. 16" x 32"

MAXIMUM HEIGHT UNDER STD. 12" WHEEL

  TO TABLE SURFACE ......................... 21.5"

TABLE SPEED, INFINITELY VARIABLE ........... UP TO 82' FPM

MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL ... 38"

AUTO CROSS FEED INCREMENT .................. 0.002" TO .80"

AUTO CONTINOUS CROSSFEED ................... 4' TO 40' FPM

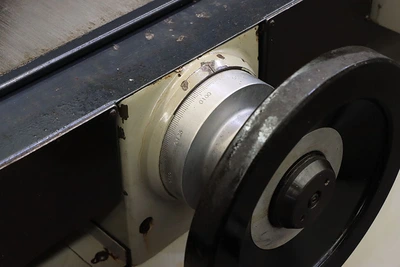

CROSSFEED, MANUAL, HAND FEED PER REV. ...... 0.25"

                   GRAD. OF HANDWHEEL ...... 0.001"

MAX. CROSSFEED, MANUAL ..................... 18"

AUTO INCREMENTAL DOWNFEED INCREMENTS ... 0.00005" TO .0015"

POWER RAPID WHEEL POSITIONING RATE ......... 16" IPM

SPINDLE MOTOR .............................. 5 H.P.

HYDRAULIC PUMP MOTOR ....................... 3 H.P.

VERTICAL RAPID FEED & DOWNFEED MOTOR ......  0.5 H.P.

WHEEL SIZE ............................. 12" X 1.5" X 5"

WHEEL SPEED ................................ 6,500 SFPM

GRINDING WHEEL SPEED ....................... 1,800 RPM

APPROX. MACHINE WEIGHT ..................... 8,800 LBS.

MACHINE FLOOR SPACE (L x W x H)......... 132" x 87" x 82"

 MACHINE FEATURES:

HYDRAULIC TABLE TRAVERSE & AUTOMATIC CROSSFEED

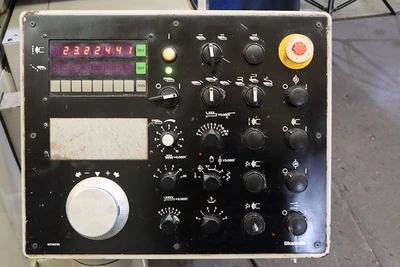

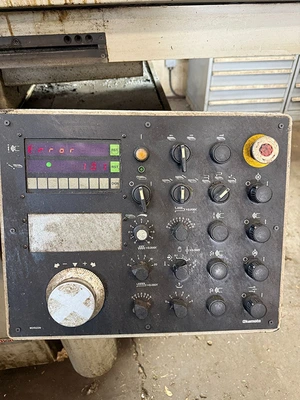

"DX" PROGRAMMABLE ELECTRONIC AUTO INCREMENTAL DOWNFEED:

-SERVO DRIVEN DOWNFEED

-AUTO INCREMENTAL DOWNFEED FOR BOTH SURFACE & PLUNGE

  OPERATIONS

-DUAL RATE AUTO DOWNFEED W/COARSE & FINE SELECTIONS

-DIGITAL DISPLAY FOR VERTICAL AXIS

-SPARKOUT PASSES (0 TO 5) W/AUTO TABLE PARK AT

  COMPLETION OF GRIND CYCLE

-ELECTRONIC HANDWHEEL FOR MANUAL VERTICAL MOVEMENT

  W/EACH GRAD. EQUIVALENT TO .00001", .0001" OR .001"

-POWER RAPID WHEEL POSITIONING

-WHEEL RETRACTION

 EQUIPPED WITH:

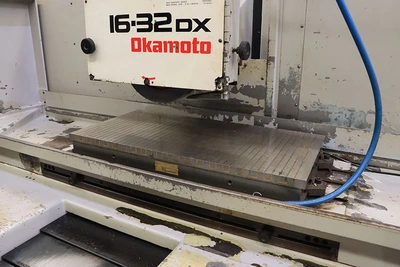

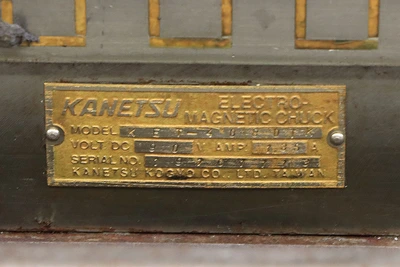

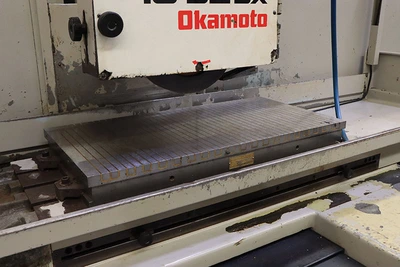

16" X 32" STD. POLE CROSS PATTERN, ELECTRO-MAGNETIC CHUCK

VARIABLE HOLD CHUCK CONTROL

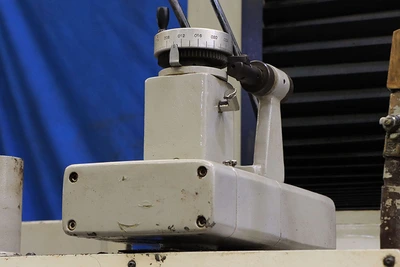

POWER OVER-THE-WHEEL DRESSER WITH MICROMETER ADJUSTMENT

COOLANT SYSTEM WITH MAGNETIC SEPARATOR

3/60/230-460 VOLT ELECTRICS, 8.5 KVA

MACHINE WIRED PRESENTLY FOR 3/60/230 VOLTS

** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
