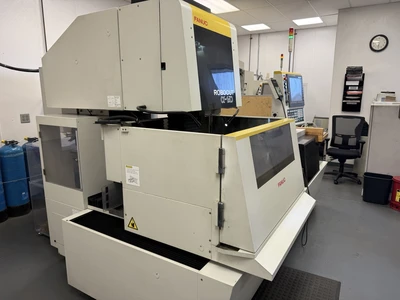

USED 2008 Fanuc ROBOCUT ALPHA 1iD, 2008, AWT

  Fanuc Robocut Alpha 1iD-12

   High-Rigidy CNC Wire EDM

    *** Made in Japan ***

         New: 2008

In Plant, Under Power

Specifications:

Maximum Workpiece Size ............... 41.3" x 32.3" x 12.1"

Maximum Workpiece Weight ............. 3,550 LBS

Table Travels X/Y .................... 23.6" / 15.7"

U & V Axis Travels ................... +- 3.937"

Taper Angle .......................... +/- 16° @ 12"

Z-Axis Travel ........................ 12.2"

Max. Cutting Speed Inches Per Hour ... 31.0" Square per Hour

Table Feedrate ....................... 1' ~ 50" IPM

Auto Wire Feedrate ................... Standard

Wire Diameter ........................ 0.004" - .012"

Maximum Wire Spool Weight ............ 35 LBS

Wire Feedrate ........................ 0 ~ 590 IPM

Wire Tension ......................... 200 ~ 2500 Grams

Positioning Accuracy ................. +- .0001

Dielectric Tank Capacity ............. 301 Gallons

Main Unit Dimensions (in inches):

Length: 66.00"  Width: 90.00"  Height: 93.00"

Components:

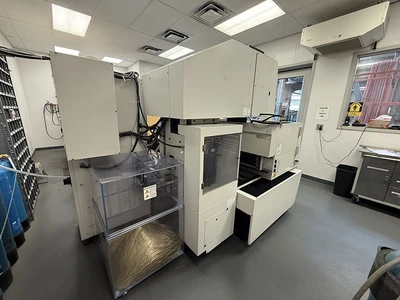

Die Electric System w Filter System:

Length: 53.00"  Width: 75.00"  Height: 69.00"

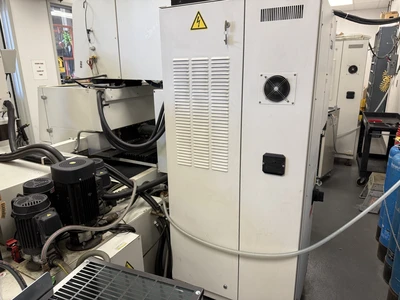

Chiller:

Length: 16.00"  Width: 19.00"  Height: 40.00"

Control Cabinet:

Length: 39.00"  Width: 32.00"  Height: 73.00"

Machine Weight .......... 6,700 Lbs.

EQUIPPED WITH:

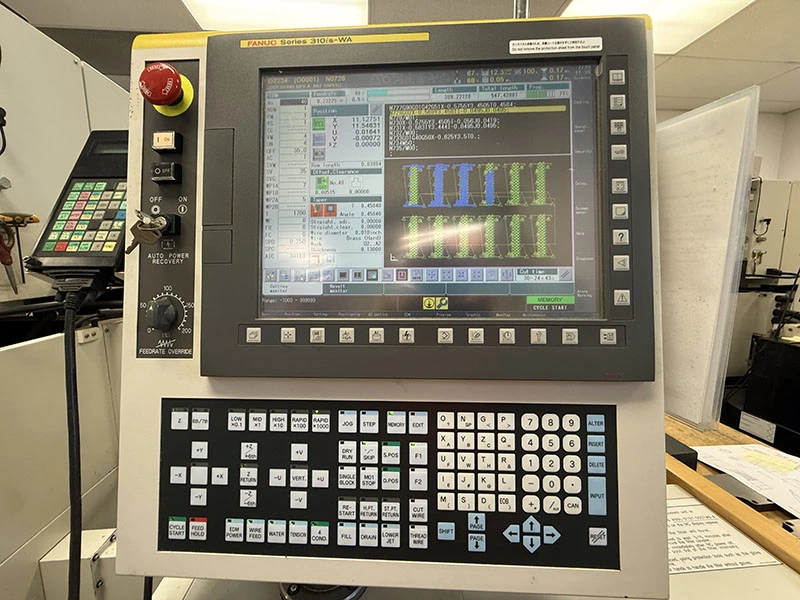

- Fanuc 310iS-WA 15" Touch Screen Control

  AI Pulse Control, Hi-Speed, High Precision,

  Nano Interpolation, Eliminates The Accumulation

  Of Axis Movement Errors

- Air Jet AWF

- Linear Glass Scales X & Y

- Maximum Programming Memory 4 MB

- Digital Power Supply

- Inverter Controlled Water Temperature

- New Thermally Insulated High Rigidity Casting

- Twin Servo Wire Tension Control

- Servo Water Level Control

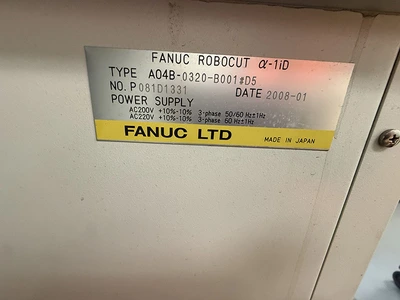

- 200-220 Volts/3/60, 13 KVA

LINK TO VIDEO: https://youtu.be/vQBcntDc_LE?si=ipXpBqAKZWWypYO2

*** Inspect under Power in a Northeast Shop ***

*** Superb Condition & Appearance ***

"The Fanuc Robocut a-1iD CNC Wire EDM is a

 high-precision machine designed for complex

 and delicate machining tasks. Key features include

 its advanced FANUC CNC control system, which

 provides superior accuracy and ease of use.

 The machine is equipped with a robust and rigid

 mechanical structure, ensuring stability and precision

 during cutting operations. The a-1iD model also

 features a high-performance wire feed system

 that maintains consistent tension, reducing wire

 breakage and improving cutting quality.

Additionally, the Robocut a-1iD boasts an efficient

 automatic threading system that minimizes downtime

 by quickly rethreading the wire in case of breaks.

 The machine supports various wire diameters,

 allowing for versatility in different machining

 applications. Its intelligent corner control and precise

 servo motor technology ensure smooth and accurate

 cuts, even in intricate geometries. The machine is

 also designed for energy efficiency and reduced

 maintenance, making it a cost-effective solution

 for precision wire EDM applications."

FOR MORE INFORMATION: Call Andy at 973-497-7600
