USED 2010 Royal Master TG12x4, 2010, HYD.DRESSER FOR GRINDING WHEEL

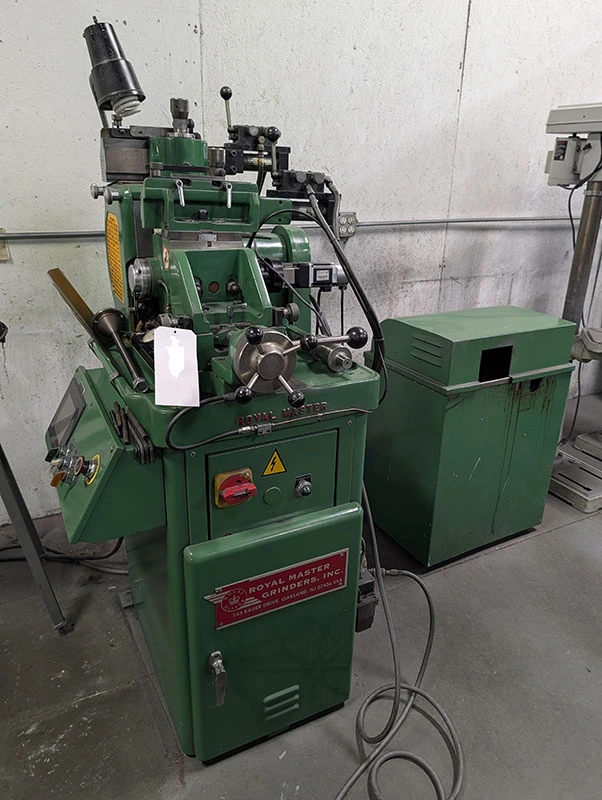

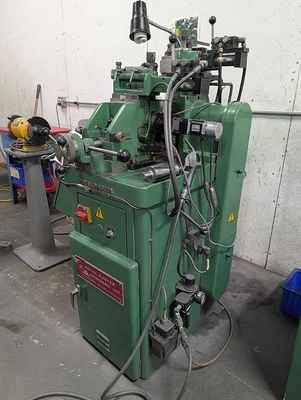

ROYAL MASTER "HIGH-PRECISION" CENTERLESS GRINDER

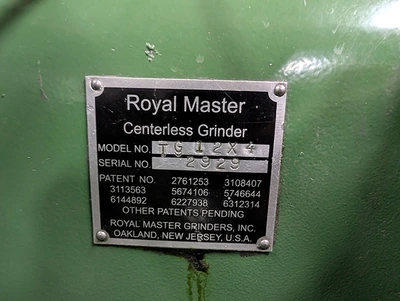

                MODEL: TG12X4

                  S/N: 2929

                  NEW: 2010

      ** SPECIAL PRE-REMOVAL PRICE SPECIAL

     ** FREE SHIPPING TO ANYWHERE IN THE USA **

 , ,

CAPACITY:

INFEED AND THRUFEED .......... 0.004" TO 1.5" DIA.

LENGTH ....................... 12' ON 0.5" DIA.

MAXIMUM GRINDING WHEEL ....... 12" DIA. X 4.5" WIDE

MINIMUM GRINDING WHEEL ....... 10" DIA. X 1/4" WIDE

MAXIMUM REGULATING WHEEL ..... 6" DIA. X 4.5" WIDE

MINIMUM REGULATING WHEEL ..... 1/4" WIDE W/SPOOL

SPINDLE SPEEDS:

GRINDING WHEEL ............... CONSTANT SPEED 2,040 RPM

REGULATING WHEEL ............. INF. VARIABLE 25 TO 480 RPM

REGULATING WHEELHEAD:

MAX. ANGLE OF TILT FOR THRUFEED

GRINDING ......................... 6 DEGREES

MAX. SWIVEL FOR TAPER GRINDING ... 5 DEGREES

  APPROXIMATE FLOOR SPACE ........ 24" X 48"

APPROXIMATE WEIGHT ............... 2,800 LBS

EQUIPPED WITH:

"PRECISION" REGULATING WHEEL SPINDLE

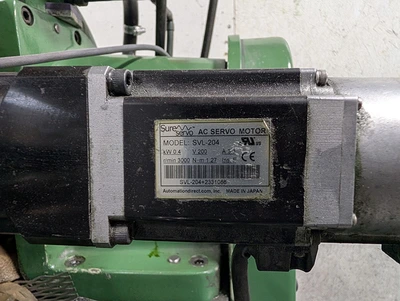

"SURE SERVO" MADE IN JAPAN AC SERVO DRIVE & DIGITAL CONTROL,

 PROVIDING FOR INFINITELY VARIABLE REGULATING WHEEL SPEEDS

HYDRAULIC DRESSER FOR THE GRINDING WHEEL

HYDRAULIC DRESSER FOR THE REGULATING WHEEL

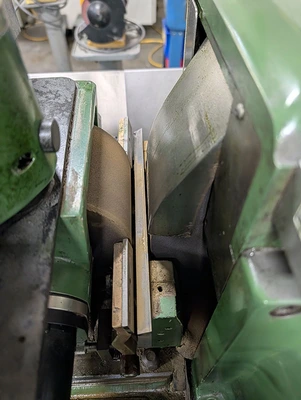

WORK REST WITH BLADES

DIAL INDICATOR FOR REGULATING WHEEL MOVEMENT

DIGITAL TACHOMETER & AMPERE GAUGE, FOR VARIABLE SPEED

 DISPLAY OF THE REGULATING WHEEL SPEEDS

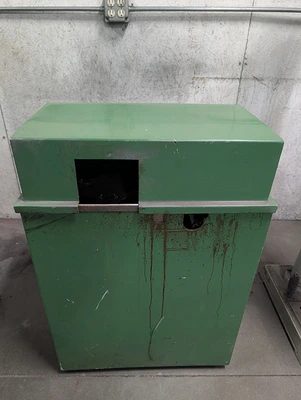

STANDARD RMG COOLANT SYSTEM

SELF CONTAINED HYDRAULIC SYSTEM

7.5 H.P. MAIN DRIVE MOTOR

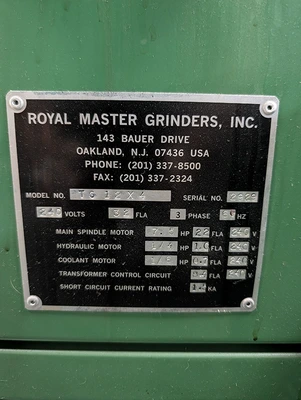

MACHINE IS PRESENTLY WIRED FOR 3/60/240 VOLTS, 32 FLA

** ORIGINAL PAINT - SUPERIOR CONDITION **

** SHIPS FROM COLORADO SHOP LOCATION **

** SOLD WITH MDNA 30 DAY RETURN PRIVILEGE **

** SPECIAL PRE-REMOVAL PRICE SPECIAL

** FREE SHIPPING TO ANYWHERE IN THE USA **

FOR MORE INFORMATION: Call Andy at 973-497-7600
