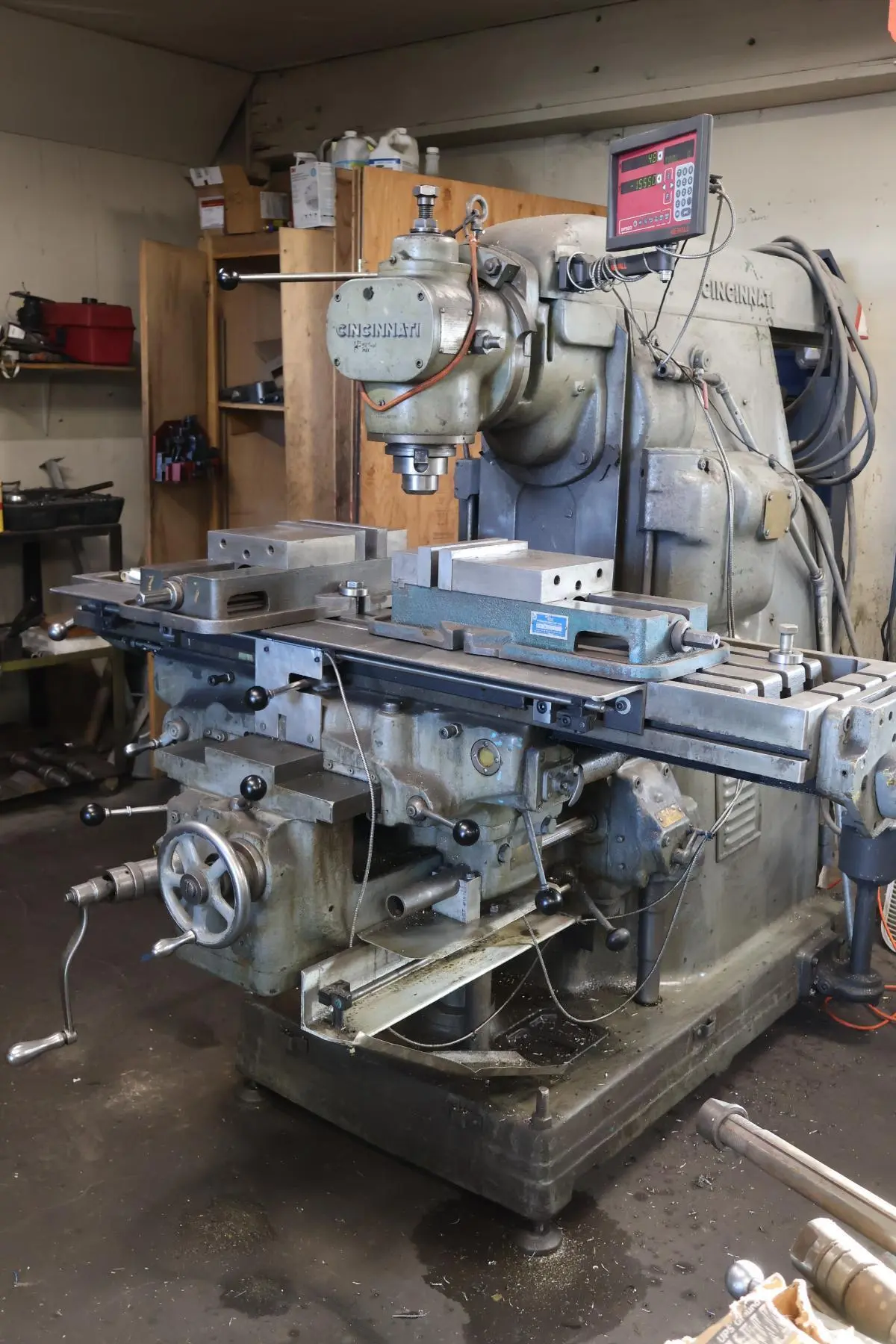

USED 1941 CINCINNATI MILLING MACHINE CO ER #3

Plain High-Speed Dial-Type Universal Milling Machine
Manufacturer: The Cincinnati Milling Machine Company
Model: ER #3
Serial No.: 4A3P1J-122
Date of Manufacture: 1941
Electrics: 240-480 Volt, 3 Phase, 60 Cycle
Main Motor: 10 HP

Features and Specifications:
...DRO DP700
...Table Size: 63” x 15”
...Travels:
......X-Axis: 34”
......Y-Axis: 12”
......Z-Axis (Knee): 19”
...Spindle Specifications:
......Speeds (21): 18 – 1300 RPM
......Taper: NMTB #50
...Feedrates:
.......Longitudinal & Cross Feeds (24): 5/16 – 60 IPM
......Vertical (Knee) Feed: 5/32 – 30 IPM
...Rapid Traverse Rates:
......X,Y-Axis: 100 IPM
......Vertical (Knee): 80 IPM
...Vertical and Horizontal Machining Capabilities
......Presently Set Up w/ Vertical Head
...Coolant Capable w/ Gusher Pump
...Tooling (see pics):
......Tool Holders
......Kurt 8” Ang/Lock Machine Vises
......Adaptor for Running 40 Taper Tool Holders
......Dividing Head

Main Dimensions (approx.): 96” x 80” x 75”
Weight (approx.): 9,500 lbs. (machine only)

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This equipment was purchased by my customer 10 years ago. Machine is still making parts in his shop; has made good money for him. He is working towards retirement within the next 1-2 years, so he is slowly liquidating his equipment. Machine is under power; available for test and inspection.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Central Oregon (Bend Metro Area)

Equipment is under power; available for inspection and test.
Buyer responsible for loading equipment onto their transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
