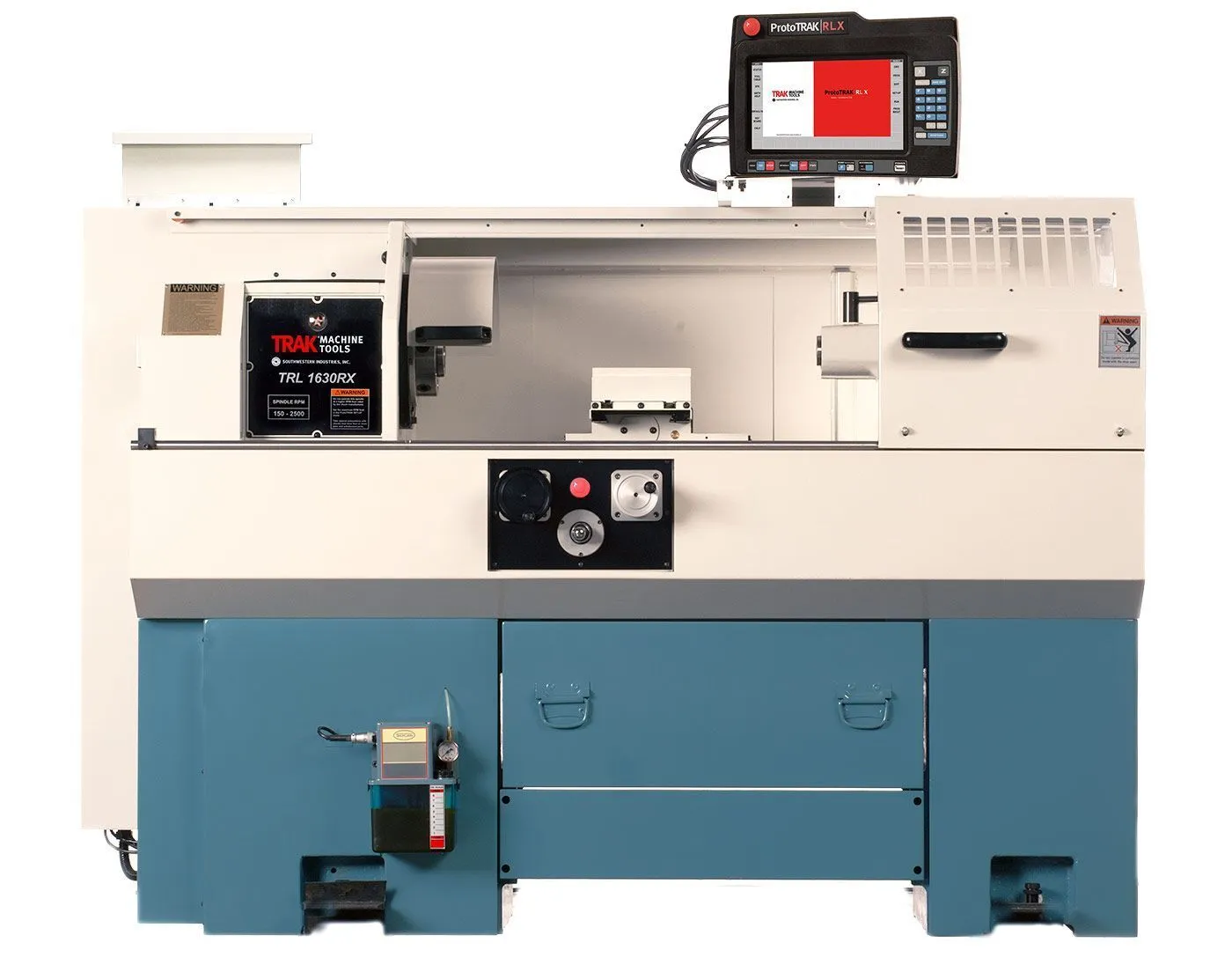

NEW TRAK 1630RX Lathe

Utah, United States
1,463Listings|6Followers
Overview
CNC Lathes

Standard Features:
ProtoTRAK RLX CNC integrated into the machine at the factory
Manual or CNC operation
Electronic handwheels and jogstick
Brushless servo motors
Inverter-duty spindle drive
Programmable spindle speeds
Constant Surface Speed (CSS) Programming
Inch Per Revolution (IPR) Programming
Optional TRAKing® for manual control of CNC programs
Optional turret for automatic tool changes

Specs
Swing
16"
406.4 mm
Machining Length
30"
762 mm
# Axis
2
2
Chuck Size
8"
203.2 mm
Bar Capacity
2"
50.8 mm
Power
5 hp
3.7 kW
Max RPM
2,500 RPM
2,500 RPM
Turning Dia
16"
406.4 mm
Tailstock
Yes
Yes
Live Tooling
No
No
Sub Spindle
No
No
Control
CNC (PROTOTRAK RLX)
CNC (PROTOTRAK RLX)
Dimensions
102 in x 67 in x 83 in
102 in x 67 in x 83 in
Weight
4200 lbs
4200 lbs
