USED INGERSOLL RAND D6U
Overview
Specs

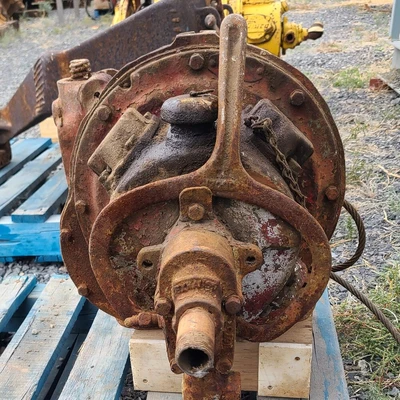

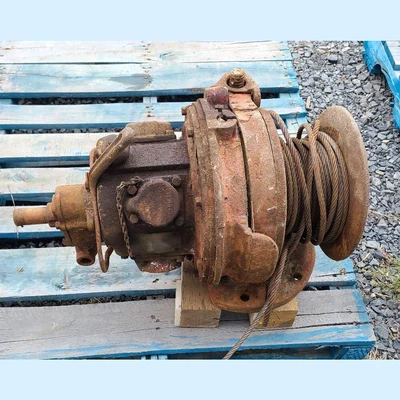

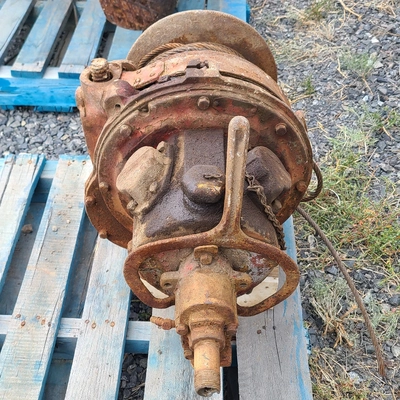

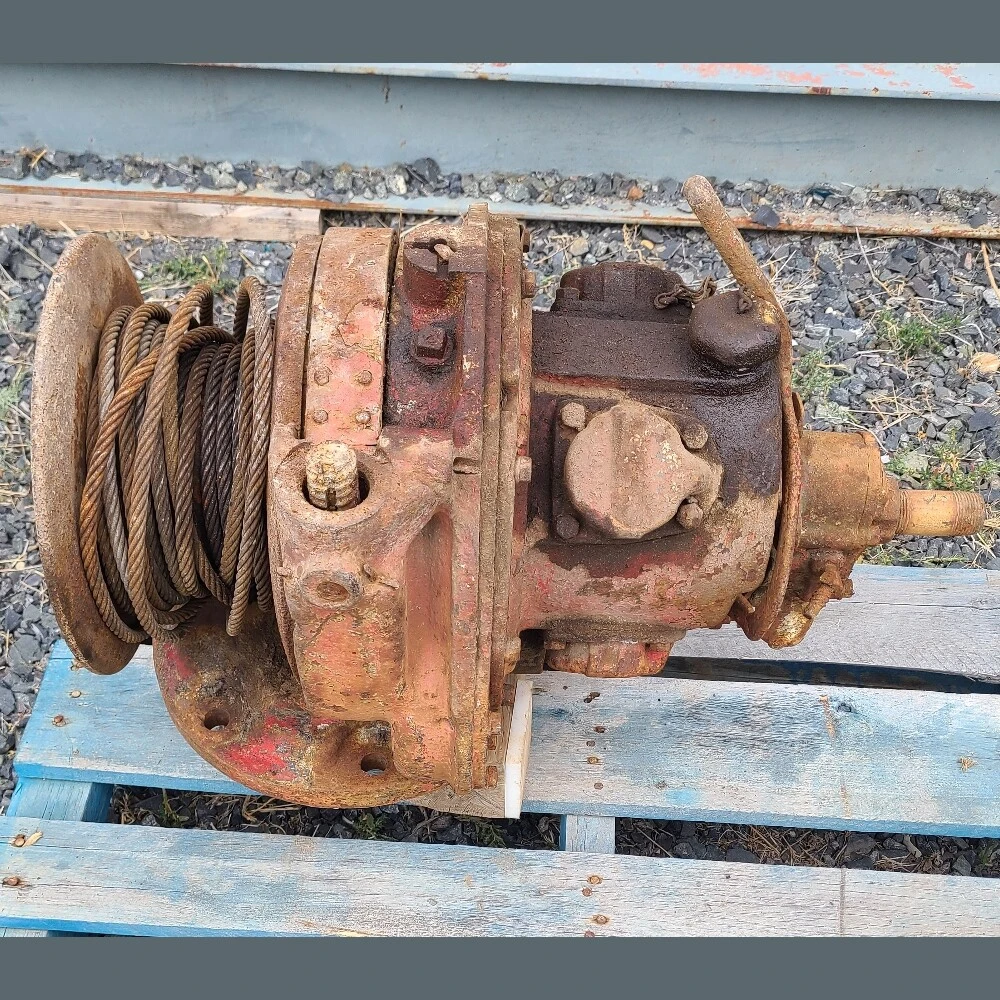

Ingersoll Rand D6U Air Tugger
Make: Ingersoll Rand
Model: D6U
Type: Air Tugger - Utility Hoist
Style: Single-Drum
Condition: Used Condition
Drive: 4-Cylinder Air Motor
Wire Rope Dia.: 3/8in (0.375in)
General Model Specifications:
Capacity: 1000 Lbs. (457kg)
ANSI Half Drum Line Pull: 1500 Lbs. (680kg)
Line Speed: 65ft Per Minute (20m/min)
Rope Size: 5/16in
Max Length of New Rope:
371ft @ 5/16in (113m @ 8mm)
243ft @ 3/8in (71m @ 10mm)
136ft @ 1/2in (42m @ 13mm)
Rope Anchor Hole: 9/16in (14.3mm)
Hose Connection Pipe Tap: 3/4in
Recommended Hose Size: 3/4in (19mm)
Weight: 275 Lbs. (Without Wire Rope)
Capacity: 1000 Lbs. (457kg)
ANSI Half Drum Line Pull: 1500 Lbs. (680kg)
Line Speed: 65ft Per Minute (20m/min)
Rope Size: 5/16in
Max Length of New Rope:
371ft @ 5/16in (113m @ 8mm)
243ft @ 3/8in (71m @ 10mm)
136ft @ 1/2in (42m @ 13mm)
371ft @ 5/16in (113m @ 8mm)
243ft @ 3/8in (71m @ 10mm)
136ft @ 1/2in (42m @ 13mm)
Rope Anchor Hole: 9/16in (14.3mm)
Hose Connection Pipe Tap: 3/4in
Recommended Hose Size: 3/4in (19mm)
Weight: 275 Lbs. (Without Wire Rope)
Overall Dimensions:
Length: 25in
Width: 16in
Height: 20in
Weight: 275 Lbs. (Without Rope)
Length: 25in
Width: 16in
Height: 20in
Weight: 275 Lbs. (Without Rope)
Location: Savona, British Columbia, Canada
