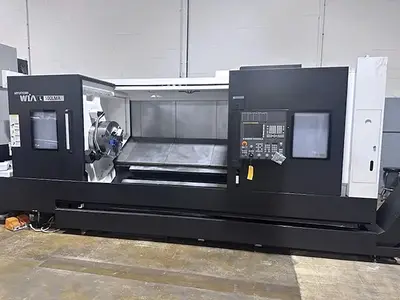

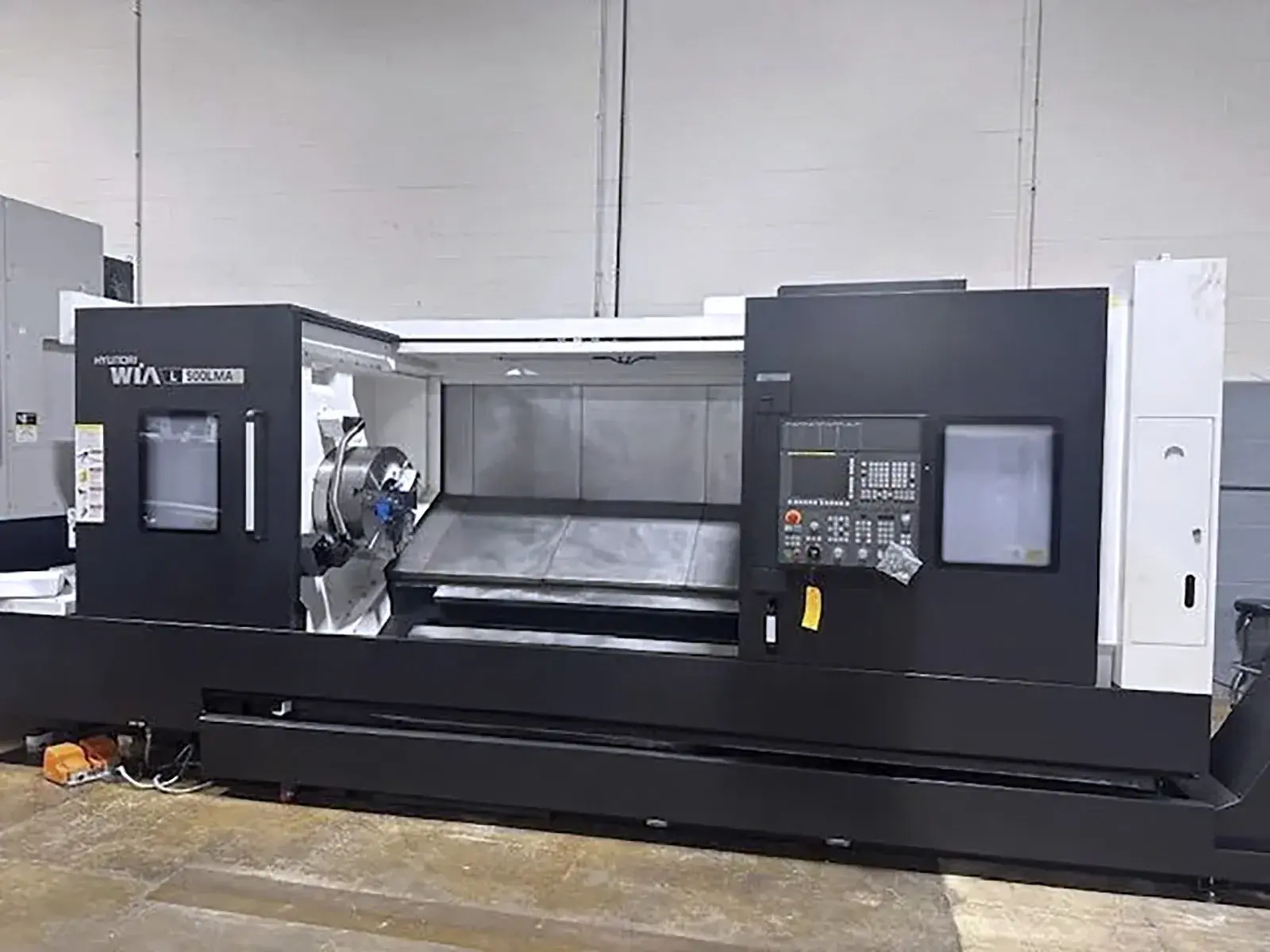

USED 2024 HYUNDAI WIA L500LMA
Overview
Used Hyundai WIA L500LMA 2024 CNC Turning Center delivers heavy-duty, large-capacity machining with milling capabilities for demanding production. Built for high-precision turning of large shafts, cylinders, bores and complex components, it is ideal for oil & gas, energy, heavy machinery, shipbuilding, aerospace and power generation applications.
Specs
FANUC 32iB CNC COLOR CONTROL
THREAD SYNCHRONIZED CUTTING
THREAD CUTTING RETRACT
VARIABLE LEAD THREADING
TOOL PRE-SETTER
(2) 24" 3-JAW MANUAL CHUCKS
FRONT AND REAR SPINDLE (W/10.8" BORE EACH)
(1) O.D. ROTARY HEAD
(1) I.D. ROTARY HEAD
CHIP CONVEYOR
HEAVY DUTY BOX WAY CONSTRUCTION
PROGRAMMABLE TAILSTOCK
200 HOURS ON TIME
Swing over Bed: 40.6"
Machining Length: 82.7"
Turning Diameter: 27.2"
Chuck Size: 24"
Spindle Nose: A1-15
Spindle Bore Diameter: 10.8"
Bar Capacity: 10.8"
Spindle Horsepower: 60 hp
Rapid Traverse Rate X: 788 ipm
Rapid Traverse Rate Z: 709 ipm
Turret Tool Positions: 12 station
Turret Rotary Tool Speeds: 4,000 RPM
Turret Rotary Tool Horsepower: 15 hp
Tailstock Quill Diameter: 5.2"
Tailstock Taper: MT 5
Tailstock Quill Travel: 5.2"
Programmable Tailstock: Yes
Tailstock Travel: 82"
Number of Axis: 3
Live Tooling: Yes
Sub Spindle: No
Machine Weight: 33,510 lb
Control: Fanuc 32iB
Equipped With
FANUC 32iB CNC COLOR CONTROL
THREAD SYNCHRONIZED CUTTING
THREAD CUTTING RETRACT
VARIABLE LEAD THREADING
TOOL PRE-SETTER
(2) 24" 3-JAW MANUAL CHUCKS
FRONT AND REAR SPINDLE (W/10.8" BORE EACH)
(1) O.D. ROTARY HEAD
(1) I.D. ROTARY HEAD
CHIP CONVEYOR
HEAVY DUTY BOX WAY CONSTRUCTION
PROGRAMMABLE TAILSTOCK
200 HOURS ON TIME
